EMMC64G-IY29-5B101

The EMMC64G-IY29-5B101 is a packaged managed NAND flash memory device with an e•MMC™ 5.1 interface manufactured by Kingston Technology. It integrates triple-level cell (TLC) NAND flash with an onboard e•MMC controller to provide a standardized embedded storage solution for commercial and industrial applications.

Designed for systems requiring compact, managed non-volatile storage, this device delivers industry-standard e•MMC 5.1 functionality, support for multiple high-speed bus modes, and features for data integrity and media management suitable for embedded system designs operating across a wide temperature range.

Key Features

• Core Architecture  Packaged managed NAND flash that combines TLC NAND media with an onboard e•MMC controller to offload flash management from the host.
• Memory and Organization  512 Gbit memory capacity organized as 64G × 8, using NAND (TLC) technology for non-volatile storage.
• e•MMC 5.1 Interface  Compliant with JEDEC e•MMC 5.1 (JESD84-B51); backward compatible with prior e•MMC revisions and supports standard e•MMC protocol features.
• High-speed Bus Modes  Supports single-data-rate up to 52 MB/s, DDR-104 up to 104 MB/s, HS-200 up to 200 MB/s, and HS-400 up to 400 MB/s. Supports 1-bit, 4-bit, and 8-bit data bus widths.
• Bus and Reset  Ten-wire bus interface (clock, 1-bit command, 8-bit data) with an optional hardware reset and variable clock frequencies up to 200 MHz.
• Data Integrity & Reliability  Internal ECC, CRC for command/data communication, enhanced data management algorithms and power-off protection during program operations.
• Security & Management  Secure bad block erase commands, enhanced write protection (permanent and partial), RPMB improvements, field firmware update (FFU), device health report and production state awareness.

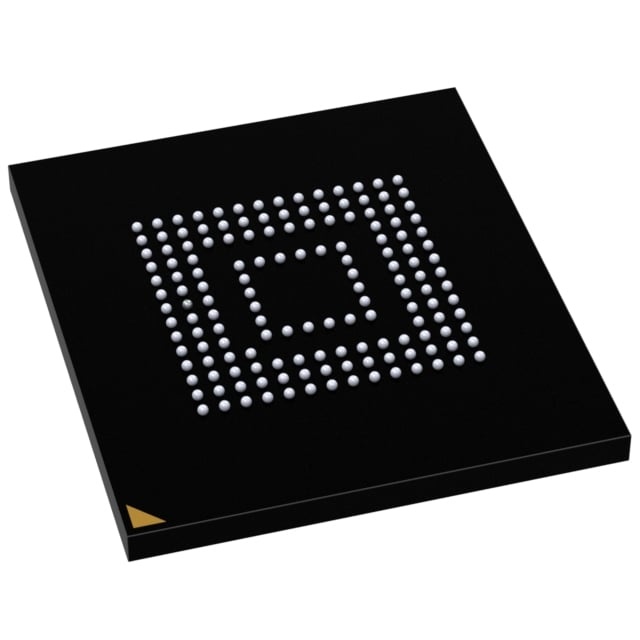

• Package & Temperature  153-ball JEDEC FBGA package (153-WFBGA / 153-FBGA, 11.5 × 13 mm) and industrial operating temperature range of -40 °C to +85 °C.
• Operating Voltage  Supports VCCQ = 1.8 V / 3.3 V and VCC = 3.3 V as specified in the product datasheet.

Typical Applications

• Industrial Embedded Systems  Provides managed non-volatile storage for industrial controllers and instrumentation that require operation across -40 °C to +85 °C.
• Commercial Embedded Devices  Suitable for consumer and commercial embedded platforms needing a standardized e•MMC 5.1 interface and onboard flash management.
• Networking and Communication Equipment  Compact onboard storage for firmware, configuration and logging where ECC, CRC and power-off protection help maintain data integrity.
• Appliance & IoT Devices  Enables local storage of system code and user data with integrated wear-leveling and secure write protection to simplify host design.

Unique Advantages

• Integrated Managed NAND  Onboard e•MMC controller plus TLC NAND reduces host-side flash management requirements and simplifies system firmware.
• Standards Compliance  Conforms to JEDEC e•MMC 5.1 (JESD84-B51) and is backward compatible with prior revisions, aiding long-term system sustainment.
• Multiple High-Speed Modes  Support for HS-200 and HS-400 modes with up to 400 MB/s theoretical transfer capability provides flexibility for different throughput needs.
• Industrial Temperature Rating  Rated for operation from -40 °C to +85 °C, enabling deployment in environments with wide temperature ranges.
• Robust Data Protection  ECC, CRC, enhanced data management and power-off protection features improve data integrity and reduce failure risk during critical operations.
• Compact FBGA Package  153-ball WFBGA (11.5 × 13 mm) package provides a high-density footprint for space-constrained embedded boards.

Why Choose IC FLSH 512GBIT EMMC 5.1 153FBGA?

The EMMC64G-IY29-5B101 offers a compact, standards-based embedded storage solution that couples TLC NAND with an integrated e•MMC 5.1 controller. Its combination of industrial temperature operation, multiple high-speed bus modes, and on-device data-management and protection features make it suitable for commercial and industrial embedded designs that require managed, non-volatile storage.

Designed by Kingston Digital Inc., this device is positioned for designers seeking a compliant e•MMC 5.1 module that reduces host design complexity while providing diagnostic and maintenance capabilities such as field firmware update and device health reporting to support product lifecycle needs.

Request a quote or submit an inquiry for pricing and availability to evaluate the EMMC64G-IY29-5B101 for your embedded storage requirements.
