IS45S32200L-7TLA1

The IS45S32200L-7TLA1 is a 64 Mbit volatile SDRAM device organized as 2M × 32 with a parallel memory interface. It provides synchronous DRAM performance with a clock frequency of 143 MHz and an access time of 5.4 ns.

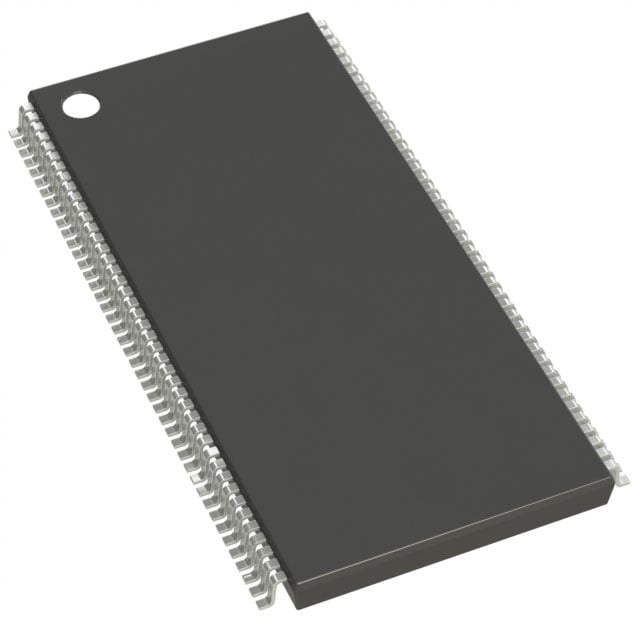

This device is supplied in an 86-TSOP II (86-TFSOP, 0.400", 10.16 mm width) package, operates from 3.0 V to 3.6 V, and supports an ambient operating temperature range of −40°C to 85°C.

Key Features

• Memory Architecture 64 Mbit SDRAM organized as 2M × 32, providing a parallel DRAM format for systems that require synchronous dynamic memory.
• Performance Synchronous SDRAM operation at a clock frequency of 143 MHz with an access time of 5.4 ns for deterministic read/write timing.
• Voltage and Power Operates from 3.0 V to 3.6 V, matching standard 3 V-class system supplies.
• Interface Parallel memory interface suitable for integration into parallel DRAM memory buses.
• Package Available in 86-TSOP II (86-TFSOP) package with a 0.400" (10.16 mm) width for compact board-level implementation.
• Temperature Range Specified for operation from −40°C to 85°C (TA) to support a broad range of ambient conditions.

Unique Advantages

• Mid-density memory in a compact package: 64 Mbit capacity organized as 2M × 32 delivers a balance of density and board footprint using the 86-TSOP II package.
• Synchronous operation with defined timing: 143 MHz clock and 5.4 ns access time provide explicit timing characteristics for system memory design.
• 3.0 V–3.6 V supply compatibility: Supports common 3 V system rails for straightforward power management integration.
• Parallel DRAM interface: Enables direct connection to parallel memory controllers and legacy parallel-memory architectures.
• Extended ambient temperature support: −40°C to 85°C operating range accommodates a wide set of environmental conditions.

Why Choose IS45S32200L-7TLA1?

The IS45S32200L-7TLA1 positions itself as a straightforward SDRAM building block for designs that require a 64 Mbit parallel DRAM with defined synchronous timing, compact TSOP II packaging, and 3.0 V-class power operation. Its specification set—2M × 32 organization, 143 MHz clock, 5.4 ns access time, and −40°C to 85°C operating range—makes it suitable for systems that need predictable SDRAM performance and a compact footprint.

This device is appropriate for designers and procurement teams seeking a documented SDRAM component with clear electrical, timing, and packaging specifications to support board-level memory implementations.

Request a quote or contact sales to check availability, lead times, and volume pricing for the IS45S32200L-7TLA1.
