W25N512GVPIG TR

The W25N512GVPIG TR from Winbond is a 3.0 V, 512 M‑bit serial SLC NAND flash memory in the SpiFlash® family that supports Dual and Quad SPI modes with buffer read and continuous read functionality. It provides a high-density, non-volatile storage option organized as 64M × 8 for embedded code and data storage.

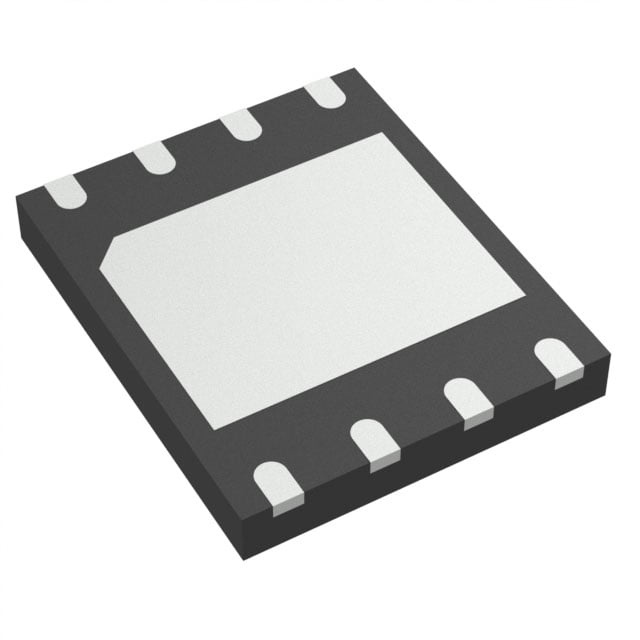

Designed for compact system integration, the device supports up to 166 MHz clocking, a 2.7 V–3.6 V supply range and an operating temperature range of -40 °C to 85 °C. The part is offered in an 8‑WSON (6 × 5 mm) exposed‑pad package and includes on‑device protection and management features drawn from its instruction and status register set.

Key Features

• Memory  512 Mbit SLC NAND flash organized as 64M × 8, providing high-density non-volatile storage.
• Interface  Serial SPI with Dual and Quad I/O support for higher throughput and flexible host interfacing.
• Read Modes  Buffer Read and Continuous Read modes supported to optimize sequential and sustained read operations.
• Performance  Clock frequency up to 166 MHz and a specified access time of 6 ns for read operations; write cycle timing example: 700 µs (word/page).
• Voltage and Power  Single‑supply operation across 2.7 V to 3.6 V.
• Package  8‑WSON (6 × 5 mm) exposed pad package for compact board footprint and thermal path.
• Temperature Range  Rated for operation from -40 °C to 85 °C (TA).
• Protection & Management  On‑chip protection and configuration registers, ECC enable/monitoring bits, bad-block management and BBM lookup features exposed through the instruction set and status registers.
• Command & Control  Supports standard, Dual and Quad SPI instruction sets, device reset, JEDEC ID read, block erase, program and page read commands.

Typical Applications

• Firmware and Boot Storage  Non‑volatile storage for system firmware and boot code using serial SPI/Quad I/O for efficient code fetch.
• Embedded Data Storage  High‑density SLC NAND for storing configuration, calibration and application data in embedded designs.
• External Memory for Microcontrollers  Expand system memory via a compact SPI/Quad interface compatible with microcontroller-hosted storage schemes.

Unique Advantages

• High-density SLC NAND: 512 Mbit capacity (64M × 8) delivers substantial non-volatile storage while retaining NAND architecture advantages.
• Flexible, high-speed SPI interface: Dual/Quad I/O and up to 166 MHz clocking enable higher throughput for code and data transfers.
• Advanced on‑device management: Protection registers, ECC enable/status bits and bad-block management reduce host-side management complexity.
• Compact thermal-friendly package: 8‑WSON (6 × 5 mm) with exposed pad supports small form factors and thermal dissipation.
• Wide supply and temperature range: 2.7 V–3.6 V operation and -40 °C to 85 °C rating suit many embedded system environments.

Why Choose IC FLASH 512MBIT SPI/QUAD 8WSON?

The W25N512GVPIG TR combines Winbond's SpiFlash® serial SLC NAND architecture with Dual/Quad SPI and read‑optimized modes to provide a high‑density, configurable non‑volatile memory option for embedded designs. Its documented instruction set, protection registers and ECC-related status bits support reliable storage management directly on the device.

This part is suited to designs that need compact physical footprint, a wide supply and temperature operating window, and serial Quad SPI throughput up to 166 MHz. Supporting block erase, program and read command sets and packaged in an 8‑WSON (6 × 5 mm) exposed‑pad case, it offers a balance of capacity, interface flexibility and device-level management for long-term deployment.
