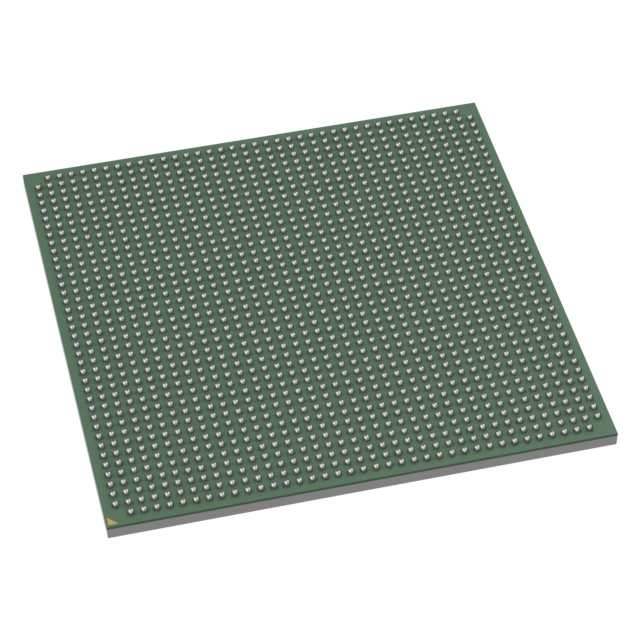

LX2080SC71826B
| Part Description |
ARM® Cortex®-A72 Microprocessor IC QorlQ LX2 8 Core, 64-Bit 1.8GHz 1517-FCPBGA (40x40) |
|---|---|
| Quantity | 18 Available (as of October 8, 2026) |
| Product Category | Microprocessors |
|---|---|
| Part Series | LX2080S |
| Manufacturer | NXP USA Inc. |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 18 Weeks |
| Datasheet |
Specifications & Environmental
| Core Processor | ARM® Cortex®-A72 | Device Package | 1517-FCPBGA (40x40) | ECCN | N/A | ||
|---|---|---|---|---|---|---|---|
| Ethernet | 100Gbps (2) | Graphics Acceleration | Yes | HTS Code | N/A | ||
| Moisture Sensitivity Level | N/A | Mounting Method | Surface Mount | Mounting Type | Surface Mount | ||
| Number of Cores/Bus Width | 8 Core, 64-Bit | Operating Temperature | 0°C ~ 105°C (TJ) | Package / Case | 1517-BBGA, FCBGA | ||
| RAM Controllers | DDR4 | REACH Compliance | REACH Unaffected | RoHS Compliance | ROHS3 Compliant | ||
| SATA | SATA 3.0 (4) | Security Features | Secure Boot, TrustZone® | Speed | 1.8GHz | ||
| Supplier Device Package | 1517-FCPBGA (40×40) | USB | USB 3.0 (2) + PHY (2) | Voltage – I/O | 1.2V, 1.8V, 3.3V |
Overview of LX2080SC71826B – IC MPU QORLQ 1.8GHZ 1517FCPBGA
The LX2080SC71826B is an NXP Layerscape-based microprocessor featuring an ARM® Cortex®-A72 architecture configured as an 8-core, 64‑bit MPU running at 1.8 GHz. It is designed for embedded and networking applications that demand multi‑core compute, high‑speed I/O and integrated security.
With DDR4 memory support, dual 100 Gbps Ethernet capability, multiple high-speed peripheral interfaces and hardware security features, this device targets compute‑intensive networking, edge and industrial use cases where integration and throughput matter.
Key Features
- Core — ARM® Cortex®-A72 64‑bit processor, 8 cores running at 1.8 GHz for multi‑threaded embedded workloads.
- Memory — DDR4 memory controller support for high‑performance system memory configurations.
- High‑Speed Networking — Dual 100 Gbps Ethernet ports to support demanding network throughput and data‑plane tasks.
- Storage Interfaces — Four SATA 3.0 ports for direct attachment of high‑performance storage devices.
- USB and PHY — Two USB 3.0 ports plus two USB PHY interfaces for high‑speed peripheral connectivity.
- Additional I/O — CANbus interface for robust control and industrial field connectivity.
- Security — Secure Boot and Arm TrustZone® support to enable platform integrity and secure execution domains.
- Graphics Acceleration — Integrated graphics acceleration to support display and visualization tasks.
- Package & Mounting — 1517‑FCPBGA (40×40) FCBGA package, surface mount for compact board designs.
- Operating Range — Rated for operation from 0 °C to 105 °C to meet demanding thermal environments.
- Compliance — RoHS compliant, aligning with modern environmental requirements.
Typical Applications
- Networking Equipment — Control and data‑plane processing for switches, routers and edge networking appliances leveraging dual 100 Gbps Ethernet.
- Edge Compute — Embedded edge servers and gateways that require multi‑core processing, DDR4 memory support and high‑speed I/O.
- Data Center Offload — Offload and control functions where SATA, USB and high networking throughput are required.
- Industrial Systems — Industrial controllers and communication hubs using CANbus and robust operating temperature for reliable field operation.
Unique Advantages
- High throughput networking: Dual 100 Gbps Ethernet interfaces enable large data flows for modern networking and edge applications.
- Multi‑core compute: Eight Cortex‑A72 cores at 1.8 GHz deliver parallel processing capacity for multi‑threaded workloads.
- Broad I/O integration: Combined SATA, USB, CANbus and high‑speed Ethernet reduce external controller requirements and simplify BOM.
- Built‑in platform security: Secure Boot and TrustZone® provide hardware‑backed mechanisms to protect firmware and runtime environments.
- Compact deployment: FCBGA 1517 (40×40) package supports compact PCB integration for space‑constrained designs.
- Designed for embedded environments: Extended operating range to 105 °C and RoHS compliance for durable, regulation‑aligned products.
Why Choose LX2080SC71826B?
The LX2080SC71826B positions itself as a high‑integration embedded MPU for designs that require multi‑core compute, high network throughput and a wide set of high‑speed peripherals. Its combination of ARM® Cortex®-A72 cores, DDR4 support, dual 100 Gbps Ethernet and integrated security features makes it suitable for networking, edge computing and industrial designs that value performance and system simplification.
Designed to reduce external components while delivering scalable processing and connectivity, this device is appropriate for engineering teams building compact, high‑performance systems where long‑term platform support and ecosystem tools for NXP Layerscape processors are important.
Request a quote or submit an inquiry to get pricing, availability and technical support for the LX2080SC71826B.
