MC68360CRC25L

The MC68360CRC25L is a CPU32+ microprocessor IC from the MC68360 series featuring a single 32-bit core running at 25 MHz. It integrates communications-oriented functionality including a Communications Processor Module (CPM) and system integration features described in the MC68360 documentation.

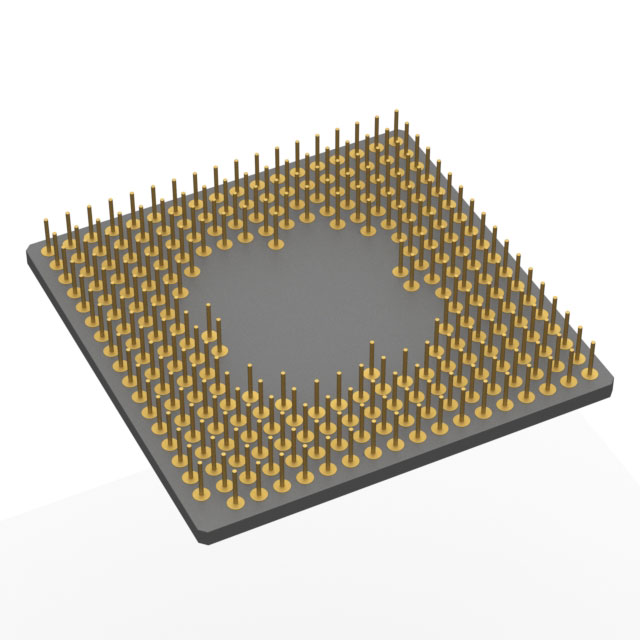

Designed for industrial applications, the device offers on-chip DRAM controller support, a 10 Mbps Ethernet interface (1), 5 V I/O operation, and an industrial operating temperature range of −40 °C to 85 °C. The device is supplied in a 241-PGA package (47.24x47.24) and is RoHS compliant.

Key Features

• Core  CPU32+ single 32-bit core operating at 25 MHz, providing deterministic processor performance for embedded control tasks.
• Communications Processor Module (CPM)  Includes on-chip communications co-processor functionality as documented for the MC68360 series, enabling integrated serial and protocol handling.
• Memory and Controllers  On-chip DRAM controller support to interface with external memory designs.
• Ethernet  Integrated 10 Mbps Ethernet interface (1) for network connectivity within supported system designs.
• I/O and Interfaces  5 V I/O voltage and additional interfaces including SCC as listed in the product specifications.
• Package and Mounting  241-PGA supplier device package (47.24x47.24) with through-hole mounting for robust board attachment.
• Industrial Qualification and Temperature  Industrial qualification with an operating temperature range of −40 °C to 85 °C for deployment in industrial environments.
• Regulatory  RoHS compliant.

Typical Applications

• Embedded Communications Systems  Leverages the integrated Communications Processor Module and serial interfaces for protocol handling and channel management.
• Industrial Control  Suitable for control and automation equipment that require industrial temperature operation and through-hole package robustness.
• Network-Connected Embedded Devices  Provides a 10 Mbps Ethernet interface for networked embedded applications within its supported performance envelope.

Unique Advantages

• Integrated Communications Subsystem:  On-chip CPM functionality reduces external component count for serial and protocol tasks.
• Industrial Temperature Range:  Rated for −40 °C to 85 °C operation, enabling use in a wide range of industrial environments.
• Robust Package and Mounting:  241-PGA (47.24x47.24) with through-hole mounting provides mechanical durability for board-level integration.
• Single-Supply I/O:  5 V I/O simplifies power domain planning in legacy and industrial systems.
• Documented Architecture:  Comprehensive MC68360 documentation (user’s manual and reference materials) is available for CPU32+, SIM60 and CPM details to support development and integration.

Why Choose MC68360CRC25L?

The MC68360CRC25L positions itself as a communications-focused, industrial-grade microprocessor IC with a CPU32+ core and integrated CPM capabilities. Its combination of a 32-bit core, on-chip DRAM controller support, a 10 Mbps Ethernet interface, and industrial temperature rating makes it suited to embedded designs that require integrated communications handling and reliable operation in demanding environments.

Backed by manufacturer documentation for the MC68360 series, the device supports engineering teams that need clear technical references for CPU, system integration, and communications processor modules during design and system integration phases.

Request a quote or submit an inquiry to receive pricing, availability, and ordering information for the MC68360CRC25L.
