MCIMX233DJM4C

The MCIMX233DJM4C is a single‑core ARM926EJ‑S microprocessor from the i.MX 233 family, running at 454 MHz and designed for embedded applications. It integrates essential system interfaces and controllers — including DRAM support, USB 2.0 with PHY, LCD and touchscreen display controllers, and I2C — to simplify embedded system design.

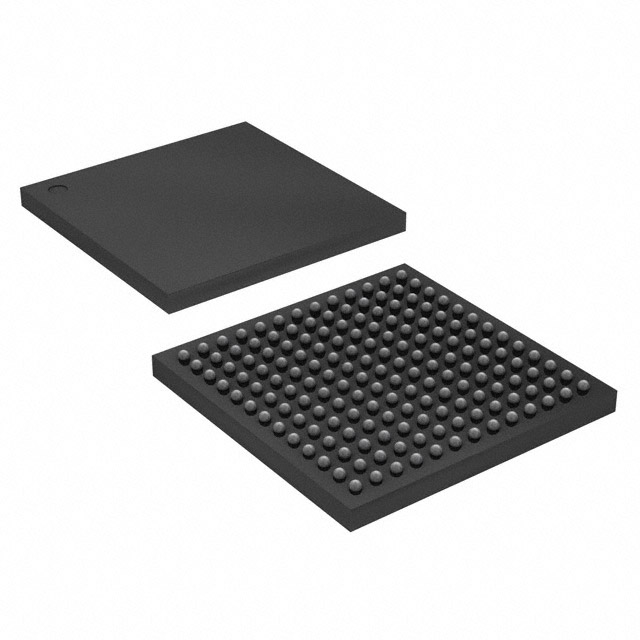

Supplied in a 169‑MAPBGA (11×11) surface‑mount package and RoHS compliant, this device targets embedded products that require a compact, integrated processor solution with onboard security features such as cryptography and a hardware ID.

Key Features

• Core ARM926EJ‑S single 32‑bit core running at 454 MHz, offering a deterministic processing element for embedded control and user‑interface tasks.
• Memory and Controllers Integrated DRAM controller for external memory support to facilitate system memory expansion.
• Display and Touch On‑chip LCD and touchscreen interface controllers for building graphical user interfaces and human‑machine interfaces.
• USB Connectivity USB 2.0 with integrated PHY (1) to support peripheral connectivity and data transfer in embedded systems.
• Security and Offload Hardware cryptography and a Hardware ID plus a data co‑processor (DCP) to support secure operations and offloaded data processing.
• Peripheral Interfaces I2C and other standard embedded interfaces for sensor, peripheral and board‑level integration.
• Package and Mounting 169‑MAPBGA (11×11) supplier device package; 169‑LFBGA package case; surface‑mount mounting type for compact board designs.
• Operating Range Rated for operation from −10°C to 70°C, suitable for a range of controlled‑environment embedded applications.
• Compliance RoHS compliant for regulatory and environmental compatibility.

Typical Applications

• Human‑Machine Interfaces (HMIs) Drive LCD panels and touchscreen sensors for control panels, kiosks and operator displays using the integrated display and touchscreen controllers.
• Secure Embedded Controllers Implement device authentication, secure boot elements, or cryptographic operations leveraging on‑chip cryptography and hardware ID.
• USB‑Connected Devices Add USB 2.0 peripheral support with the integrated PHY for sensors, data loggers or accessory interfaces.
• Embedded Control Systems Use the ARM926EJ‑S core and DCP co‑processor for deterministic control, data processing and peripheral management in compact embedded products.

Unique Advantages

• Integrated feature set: Combines CPU, DRAM controller, display/touch controllers and USB PHY on a single device to reduce board complexity and BOM count.
• Security‑ready: Built‑in cryptography and a hardware ID provide foundations for secure device identity and protected operations.
• Compact package: 169‑MAPBGA (11×11) surface‑mount package enables space‑constrained board layouts while supporting necessary I/O.
• Series continuity: Part of the i.MX 233 family, offering a known microprocessor architecture for embedded development.
• Regulatory compliance: RoHS compliant for environmental requirements in product assemblies.

Why Choose MCIMX233DJM4C?

The MCIMX233DJM4C delivers a focused embedded microprocessor solution with a 32‑bit ARM926EJ‑S core at 454 MHz and integrated system interfaces that simplify hardware design. Its combination of display support, USB connectivity, DRAM interfacing and on‑chip security features makes it well suited for compact embedded systems that require integrated peripherals and straightforward board integration.

Backed by NXP Semiconductors and packaged for surface‑mount assembly, this device is a practical choice for engineers developing HMIs, secure controllers, USB‑enabled devices and similar embedded applications that benefit from an integrated processor platform.

Request a quote or submit an inquiry to receive pricing and availability for the MCIMX233DJM4C and to discuss how it fits your next embedded design.
