MCIMX6D6AVT10AE

The MCIMX6D6AVT10AE is a dual‑core ARM® Cortex®‑A9 microprocessor IC in the i.MX 6D series, operating at up to 1.0 GHz. It is a multimedia‑focused embedded processor that combines CPU performance with integrated 2D/3D graphics and video processing to address display‑centric and HMI applications.

Built with a broad set of memory and peripheral interfaces, extensive security features, and a compact 624‑FCBGA (21 × 21 mm) package, this device targets embedded systems requiring integrated multimedia, connectivity, and secure boot capability.

Key Features

• CPU Core — Dual ARM® Cortex®‑A9 cores, 32‑bit architecture running up to 1.0 GHz for balanced compute performance in embedded multimedia workloads.
• Multimedia & Graphics — Integrated 2D and 3D graphics processors and 1080p video processing to support sophisticated display and user‑interface designs.
• Memory Interfaces — Multi‑type memory controller support including LPDDR2, LVDDR3 and DDR3 enabling flexible system memory configurations.
• Connectivity & Storage — Gigabit Ethernet (10/100/1000 Mbps), one SATA 3 Gbps interface, and up to four USB 2.0 ports with integrated PHY provide versatile networking and storage options.
• Additional I/O — Integrated CAN interface plus display controllers for LCD and keypad support to simplify board‑level integration.
• Security — Comprehensive security feature set including ARM TrustZone, boot security, cryptography, secure JTAG, secure fusebox, secure memory, secure RTC and tamper detection for device integrity and protected boot flows.

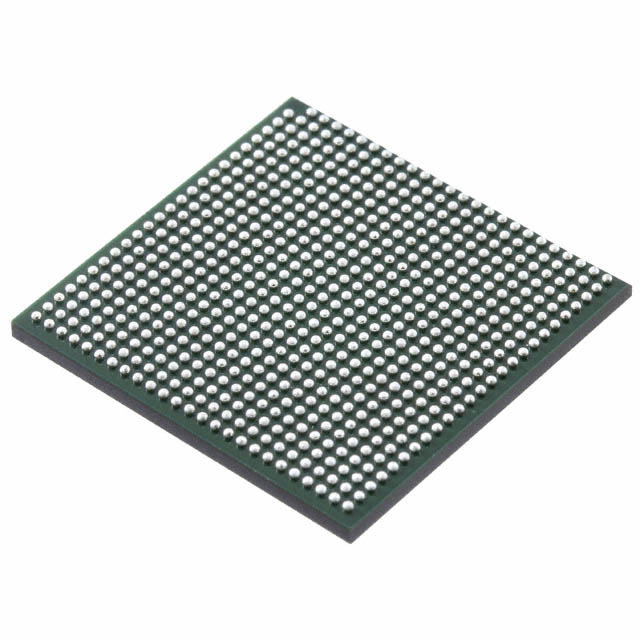

• Package & Mounting — 624‑FCBGA (21 × 21 mm) surface‑mount package with 0.8 mm ball pitch suitable for compact embedded designs.
• Operating Range — Rated for operation from −40 °C to 125 °C to support deployment in temperature‑demanding environments.
• Compliance — RoHS‑compliant manufacturing status.

Typical Applications

• Infotainment & Multimedia Systems — Use the integrated graphics and 1080p video processing to drive in‑device displays and media playback functions.
• Human‑Machine Interfaces (HMI) — Dual cores and graphics acceleration enable responsive user interfaces and display control for embedded panels.
• Networked Embedded Gateways — Gigabit Ethernet, SATA and multiple USB ports support network connectivity and local storage for embedded gateway appliances.
• Telematics & Display Systems — Multi‑interface connectivity and wide operating temperature range make the device suitable for display‑based systems and telematics controllers.

Unique Advantages

• Balanced dual‑core processing: Two ARM® Cortex®‑A9 cores at up to 1.0 GHz deliver the compute capacity needed for concurrent UI, media, and control tasks.
• Integrated multimedia engine: On‑chip 2D/3D graphics and 1080p video processing reduce external component count for display and video applications.
• Flexible memory support: Native controllers for LPDDR2, LVDDR3 and DDR3 allow designers to select memory types that match performance and cost targets.
• Rich peripheral set: Gigabit Ethernet, SATA 3Gbps, four USB 2.0 ports with PHY, and CAN provide broad connectivity without extensive external bridging.
• Comprehensive security: Multiple hardware security features—TrustZone, secure boot, cryptography and tamper detection—support secure system architectures and boot integrity.
• Rugged operating range: −40 °C to 125 °C capability supports use in thermally challenging embedded environments.

Why Choose MCIMX6D6AVT10AE?

The MCIMX6D6AVT10AE positions itself as a highly integrated embedded microprocessor that combines dual‑core ARM® performance with dedicated multimedia acceleration and a broad peripheral set. Its memory flexibility, comprehensive security features, and compact 624‑FCBGA package make it suitable for designs that need a tightly integrated solution for display, media, and networked embedded systems.

Engineers and procurement teams seeking a processor that simplifies BOM and supports robust, design‑focused deployments will find the MCIMX6D6AVT10AE fits applications where integrated graphics, storage and connectivity are central to the system architecture.

Request a quote or submit an inquiry to start the evaluation process and obtain pricing and availability for the MCIMX6D6AVT10AE.
