MCIMX6D6AVT10AER

The MCIMX6D6AVT10AER is an NXP Semiconductors i.MX 6D-series microprocessor based on dual ARM® Cortex®-A9 cores operating at up to 1.0 GHz. It combines dual 32-bit application cores with multimedia acceleration and a broad set of integrated peripheral interfaces to support display-rich and connected embedded systems.

Designed for embedded infotainment, telematics, HMI and display-based cluster applications, the device delivers a balance of processing performance, multimedia capabilities and system integration for complex embedded designs.

Key Features

• Core & Performance Dual ARM® Cortex®-A9 cores, 32-bit, running up to 1 GHz for responsive application processing and multitasking.
• Multimedia & SIMD Integrated multimedia co-processors with NEON™ SIMD support and graphics acceleration to handle 2D/3D graphics and media processing tasks.
• Memory Interfaces Supports LPDDR2, LVDDR3 and DDR3 memory controllers for flexible memory subsystem design.
• Display & UI Display interface controllers including LCD and keypad interfaces to support sophisticated human–machine interfaces.
• High‑Speed Connectivity Integrated Gigabit Ethernet (10/100/1000 Mbps), SATA 3 Gbps, and four USB 2.0 ports with PHY provide a comprehensive set of wired connectivity options.
• Additional Peripherals On-chip CAN interface and multiple peripheral controllers simplify integration with vehicle networks and industrial subsystems.
• Security & Trust Hardware features including ARM TrustZone, boot security, cryptographic engines, secure fusebox, secure JTAG and tamper detection provide a layered approach to system security.

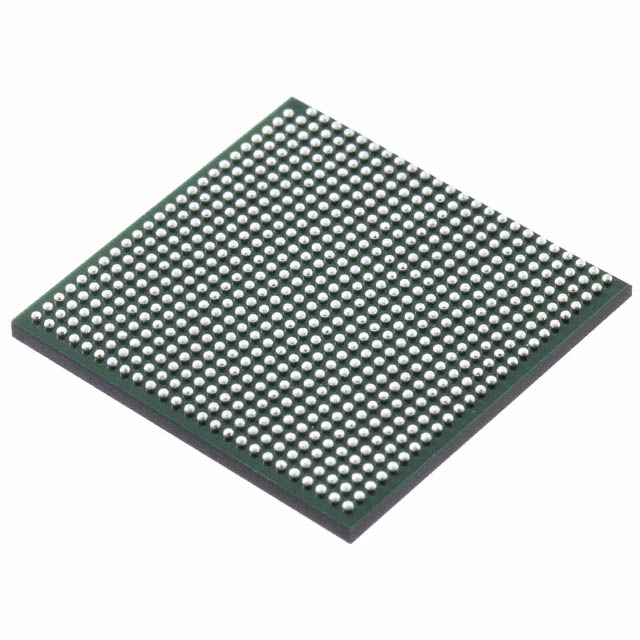

• Package & Mounting 624-FCBGA package (21 × 21 mm) designed for surface-mount assembly, suitable for compact embedded board designs.
• Extended Operating Range Rated for operation from −40 °C to 125 °C to accommodate demanding environmental conditions.
• Compliance RoHS compliant.

Typical Applications

• Infotainment systems — Provides the processing and multimedia acceleration needed for modern in-cabin infotainment and entertainment applications.
• Telematics — Integrates networking, storage and processing for connected telematics units and data gateways.
• Human–Machine Interfaces (HMI) — Drives graphical displays and input interfaces for touchscreens, clusters and operator consoles.
• Display-based clusters — Supports display controllers and graphics acceleration for instrument clusters and information displays.

Unique Advantages

• Balanced processing and multimedia — Dual Cortex‑A9 cores plus NEON SIMD and graphics acceleration enable concurrent application and media workloads.
• Comprehensive on-chip I/O — Built-in Gigabit Ethernet, SATA, multiple USB ports, and CAN reduce external component count and simplify system design.
• Robust security feature set — Multiple hardware security mechanisms help protect boot, runtime and sensitive data without extensive external security ICs.
• Flexible memory support — LPDDR2, LVDDR3 and DDR3 controller support allows designers to select memory technology that matches cost, power and performance targets.
• High-temperature operation — −40 °C to 125 °C operating range supports deployment in thermally demanding embedded environments.

Why Choose MCIMX6D6AVT10AER?

The MCIMX6D6AVT10AER positions itself as a highly integrated application processor that combines dual ARM® Cortex®-A9 performance with multimedia acceleration, broad peripheral connectivity and a comprehensive security feature set. It is suited to embedded designs requiring balanced compute, media handling and wired interfaces in a compact 624-FCBGA package.

Supported by NXP Semiconductors’ i.MX 6D family documentation and product datasheet material, this device is appropriate for engineers designing infotainment, telematics, HMI and display-centric systems that need scalable processing, integrated I/O and extended temperature operation.

Request a quote or submit an inquiry to obtain pricing, availability and support for MCIMX6D6AVT10AER and to start your parts procurement process.
