MCIMX6G2DVK05AA-NXP

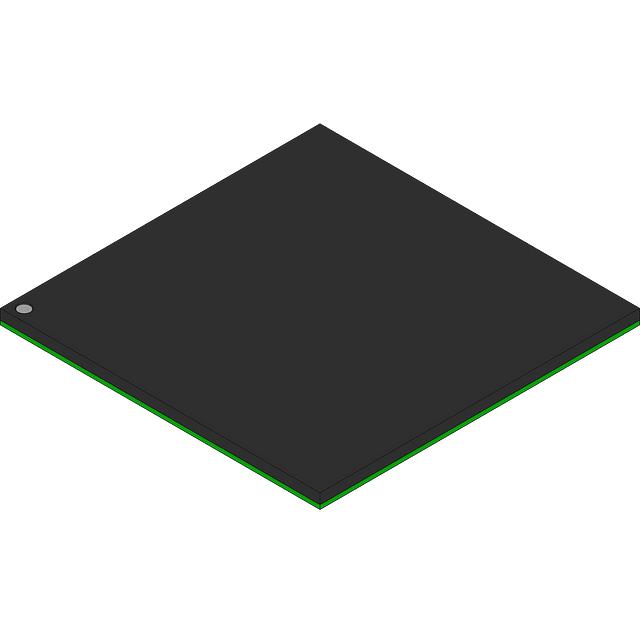

The MCIMX6G2DVK05AA-NXP is a single-core ARM® Cortex®-A7 microprocessor operating at 528 MHz, provided in a 272-MAPBGA (9×9) surface-mount package. It is offered as part of the i.MX 6G series for embedded applications and is qualified for consumer use.

Designed for embedded systems requiring a compact, integrated MPU, this device combines a 32-bit Cortex-A7 core with multimedia co-processing, flexible memory controller support, multiple display and connectivity interfaces, and a set of hardware security features.

Key Features

• Core and Performance  Single ARM® Cortex®-A7 core running at 528 MHz with 32-bit bus width for straightforward embedded processing tasks.
• Multimedia Co-processing  Includes multimedia and NEON™ SIMD co-processor capabilities to accelerate signal and media-oriented workloads.
• Memory Support  Integrated memory controllers for LPDDR2, DDR3, and DDR3L to support a range of low-power and standard DRAM options.
• Display Interfaces  On-chip controllers for LCD and LVDS displays to enable direct connection of common panel types for user interfaces.
• Connectivity  Integrated 10/100 Mbps Ethernet (1), USB 2.0 with PHY (1), and CAN interface for networked and peripheral connectivity.
• Security Features  Hardware security capabilities including ARM TrustZone (ARM TZ), A-HAB, CAAM, CSU, SJC, and SNVS for platform integrity and secure boot support.
• Package and Mounting  272-LFBGA / 272-MAPBGA (9×9) supplier device package designed for surface-mount assembly.
• Operating Range and Compliance  Consumer-qualified device with an operating temperature range of 0 °C to 95 °C and RoHS compliance.

Typical Applications

• Consumer Embedded Devices  Suitable for consumer-grade embedded products that require a compact MPU with multimedia and connectivity features.
• User Interface and Display Control  LCD and LVDS controllers enable use as the processing engine for display-driven interfaces and panel controllers.
• Networked Peripherals  Built-in 10/100 Ethernet, USB 2.0 with PHY, and CAN support networked and connected peripheral designs.

Unique Advantages

• Single-core Cortex-A7 Efficiency: Provides a focused 528 MHz processing element for power- and cost-sensitive embedded designs.
• Multimedia and SIMD Acceleration: NEON™ SIMD and multimedia co-processor support offloads media and signal processing tasks from the main core.
• Flexible Memory Options: Support for LPDDR2, DDR3, and DDR3L memory controllers simplifies choices for power and performance trade-offs.
• Integrated Connectivity: On-chip Ethernet, USB 2.0 with PHY, and CAN reduce external component count for connected designs.
• Hardware Security Suite: Multiple built-in security modules (ARM TZ, A-HAB, CAAM, CSU, SJC, SNVS) support platform integrity and secure boot strategies.
• Compact, Surface-Mount Package: 272-MAPBGA (9×9) package enables high-density board designs in space-constrained applications.

Why Choose MCIMX6G2DVK05AA-NXP?

The MCIMX6G2DVK05AA-NXP balances processing capability, multimedia acceleration, and integrated connectivity in a compact, RoHS-compliant package for consumer-qualified embedded designs. Its single ARM® Cortex®-A7 core at 528 MHz, together with NEON SIMD support and multiple security engines, makes it a practical choice when you need a focused MPU with on-chip peripherals and memory flexibility.

This part is well suited to designers building consumer-focused embedded systems that require display support, networked interfaces, and hardware security features within a compact surface-mount package and a specified 0 °C to 95 °C operating range.

Request a quote or submit an inquiry to receive pricing and availability for the MCIMX6G2DVK05AA-NXP. Our team can provide the information you need to move your design forward.
