MCIMX6G2DVK05AB

The MCIMX6G2DVK05AB is an NXP Semiconductors microprocessor from the i.MX 6G family, implementing a single ARM® Cortex®-A7 core running up to 528 MHz. It targets consumer embedded applications that demand efficient compute, integrated peripheral interfaces, and compact packaging.

Designed as part of the i.MX 6UltraLite family, this device combines an integrated power management module with a broad set of memory and peripheral interfaces to simplify board-level design for point-of-sale, telematics and IoT applications.

Key Features

• Core — Single ARM® Cortex®-A7 core, 32-bit, operating at up to 528 MHz for general-purpose embedded processing.
• Co-processors — Multimedia acceleration and NEON™ SIMD support to assist signal and media processing tasks.
• Memory support — On-chip controllers for LPDDR2, DDR3 and DDR3L memory types to match a range of system memory configurations.
• Display interfaces — Integrated LCD and LVDS display controllers for connecting displays in embedded HMIs and operator panels.
• Connectivity — Dual 10/100 Mbps Ethernet controllers, two USB 2.0 ports with integrated PHY, and CAN interface for industrial and vehicle networks.
• Security — Hardware security features including ARM TrustZone (ARM TZ), A‑HAB, CAAM, CSU, SJC and SNVS to support secure boot and runtime protection models.
• Power and integration — Integrated power management module (as described in i.MX 6UltraLite documentation) to reduce external power-supply complexity and ease sequencing.

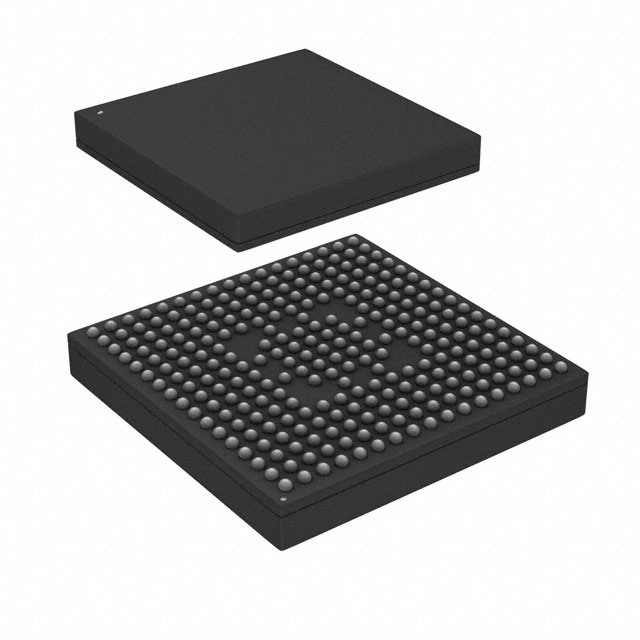

• Package and mounting — 272-MAPBGA package (9 × 9 mm) / 272-LFBGA case, surface-mount format suited to compact embedded designs.
• Operating range — Rated for operation from 0 °C to 95 °C for consumer-grade temperature environments.
• Compliance — RoHS compliant.

Typical Applications

• Point-of-Sale terminals — Compact processing and integrated I/O make it suitable for POS devices requiring display control, Ethernet connectivity and secure transactions.
• Telematics — Ethernet, CAN and USB interfaces support connectivity and peripheral integration for telematics modules and fleet devices.
• IoT gateways and devices — Low-power single-core processing with rich peripheral support fits IoT edge nodes and consumer IoT products.
• Consumer embedded products — Targeted consumer qualification and package density for compact, cost-sensitive consumer electronics.

Unique Advantages

• Single-core efficiency: ARM® Cortex®-A7 at 528 MHz provides balanced performance and power for embedded consumer applications.
• Integrated power management: On-chip power management reduces external BOM and simplifies power sequencing on the board.
• Flexible memory support: Built-in controllers for LPDDR2, DDR3 and DDR3L enable a range of memory performance and cost trade-offs.
• Comprehensive connectivity: Dual 10/100 Mbps Ethernet, two USB 2.0 + PHY ports and CAN provide multiple wired interface options for networking and peripherals.
• Hardware security suite: Multiple security modules (ARM TZ, A-HAB, CAAM, CSU, SJC, SNVS) support secure boot and runtime protection strategies.
• Compact packaging: 272-MAPBGA (9 × 9 mm) surface-mount package allows deployment in space-constrained designs.

Why Choose MCIMX6G2DVK05AB?

The MCIMX6G2DVK05AB positions itself as a compact, integrated microprocessor solution for consumer embedded designs that require efficient processing, secure boot capabilities and a broad set of peripheral interfaces. Its combination of an ARM® Cortex®-A7 core at 528 MHz, integrated power management and flexible memory/interface support makes it suitable for designs such as POS systems, telematics units and IoT devices.

Backed by the NXP i.MX 6UltraLite family documentation and datasheet-level detail, the MCIMX6G2DVK05AB offers a concise platform choice for teams focused on reducing BOM complexity, accelerating development and deploying robust consumer-grade embedded systems.

Request a quote or submit an RFQ to begin procurement for the MCIMX6G2DVK05AB and include your quantity and delivery requirements for a prompt response.
