MCIMX6G2DVM05AA-NXP

The MCIMX6G2DVM05AA-NXP is an ARM® Cortex®-A7 microprocessor from the i.MX 6G series, featuring a single 32-bit core running at 528 MHz in a 289-MAPBGA (14×14) package. Designed for embedded and consumer applications, it integrates key system interfaces and security features to support connected, display-capable devices.

With on-chip support for multiple memory types and display interfaces plus standard connectivity options, this device targets embedded designs that require compact packaging, system integration, and consumer-grade qualification.

Key Features

• Core  ARM® Cortex®-A7 single 32-bit core operating at 528 MHz for embedded processing tasks.
• Multimedia Acceleration  Includes multimedia co-processor support and NEON™ SIMD to assist media and signal processing workloads.
• Memory Controllers  Supports LPDDR2, DDR3 and DDR3L memory types for flexible system memory configurations.
• Display Interfaces  Integrated LCD and LVDS display interface controllers for driving common embedded displays.
• Connectivity  Integrated 10/100 Mbps Ethernet (1 port), USB 2.0 with PHY (1), and CAN interface for networked and peripheral connections.
• Security  Hardware security features including ARM TrustZone (TZ), A‑HAB, CAAM, CSU, SJC and SNVS to support secure boot and runtime security functions.

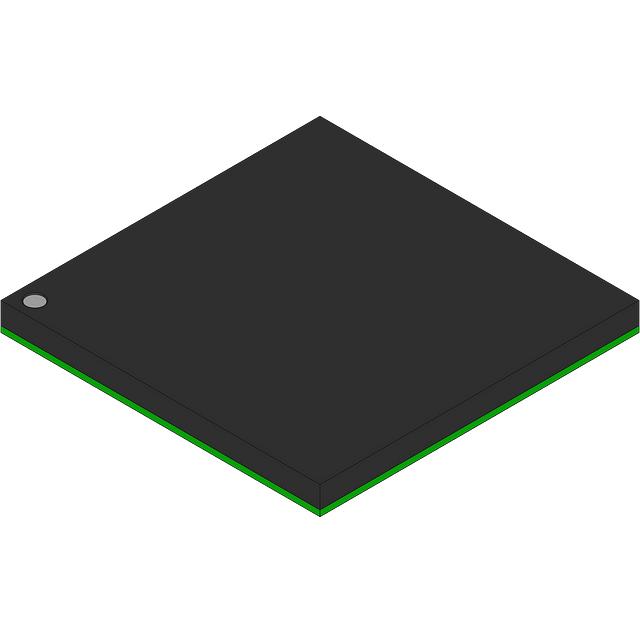

• Package & Mounting  289-MAPBGA (14×14) surface-mount package (289-LFBGA case) for compact board-level integration.
• Operating Range  Qualified for consumer applications with an operating temperature range of 0 °C to 95 °C.
• Compliance  RoHS compliant.

Typical Applications

• Embedded Consumer Devices  Used in consumer-grade embedded systems that require a single Cortex‑A7 core and integrated display and connectivity options.
• HMI and Display Controllers  Drives LCD and LVDS displays in user interface applications where compact packaging and memory flexibility are required.
• Networked Embedded Systems  Provides Ethernet, USB 2.0 and CAN interfaces for connected devices and peripheral interfacing.

Unique Advantages

• Single-core, deterministic processing:  A 528 MHz Cortex‑A7 core provides a clear performance point for single-threaded embedded tasks.
• Integrated display and memory support:  On-chip LCD/LVDS controllers and support for LPDDR2/DDR3/DDR3L simplify system design and BOM.
• Embedded connectivity:  Built-in Ethernet, USB 2.0 with PHY and CAN reduce external interface components and speed time-to-market.
• Hardware security suite:  Multiple security engines and subsystems enable implementation of secure boot and runtime protections.
• Compact BGA package:  289-MAPBGA (14×14) form factor supports high-density PCB layouts for space-constrained designs.
• Consumer qualification:  Device qualification suited to consumer market requirements and workflows.

Why Choose MCIMX6G2DVM05AA-NXP?

The MCIMX6G2DVM05AA-NXP delivers a focused embedded processing solution combining an ARM Cortex‑A7 single core at 528 MHz with integrated memory controllers, display interfaces and common connectivity options. Its hardware security features and compact 289-MAPBGA package make it appropriate for consumer-grade embedded designs that need system-level integration and secure capabilities.

Ideal for designers building display-driven, networked consumer devices, this device offers a balance of integration and verifiable specifications to support scalable development and supplier-backed product lifecycle management.

Request a quote or submit an inquiry to get pricing and lead-time information for the MCIMX6G2DVM05AA-NXP.
