MCIMX6Q5EYM12AD

The MCIMX6Q5EYM12AD is an NXP i.MX 6Q series application microprocessor featuring a quad ARM® Cortex®-A9 core operating at 1.2 GHz. Designed for embedded and industrial multimedia applications, it combines multicore processing, integrated multimedia acceleration and extensive peripheral support in a single device.

As part of the i.MX 6 family, this processor targets embedded systems that require high processing throughput, display and video capabilities, and broad I/O integration while benefiting from the series' power-management and system-level features.

Key Features

• CPU Core  ARM® Cortex®-A9, 4 cores, 32-bit architecture running at 1.2 GHz to deliver multicore processing for compute- and multimedia-oriented tasks.
• Memory Interface  Support for LPDDR2, LVDDR3 and DDR3 memory; datasheet references a 64-bit DDR3/DDR3L/LPDDR2 memory interface for high-bandwidth system memory access.
• Multimedia and Graphics  Includes 2D and 3D graphics processors and 1080p video processing capabilities; overall device lists graphics acceleration as supported.
• Connectivity and Storage  Integrated controllers include 10/100/1000Mbps Ethernet (1), SATA 3Gbps (1), USB 2.0 with PHY (4) and CAN, enabling wired networking, mass storage and multiple USB peripheral connections.
• Display and Human Interface  Display interface controllers for LCD and keypad integration to support HMIs and embedded display systems.
• Security  Comprehensive security features including ARM TrustZone (ARM TZ), boot security, cryptography engines, secure fusebox, secure JTAG, secure memory, secure RTC and tamper detection.
• Power Management  Device family documentation notes integrated power management to support optimized system power control and management.

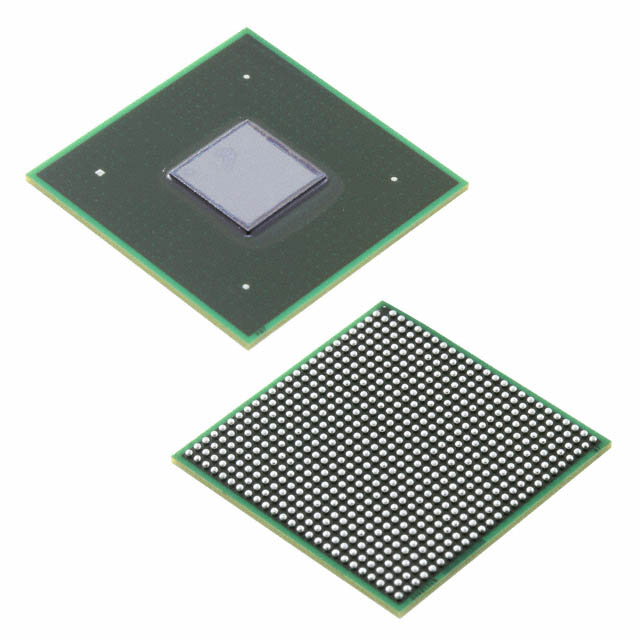

• Package and Mounting  Supplier device package: 624-FCPBGA (21 × 21 mm); FCPBGA package with 0.8 mm pitch is documented for the series. Surface-mount package suitable for volume production.
• Operating Range  Rated for an operating temperature range of −20°C to 105°C for deployment in a variety of embedded and industrial environments.
• Compliance  RoHS status: Compliant.

Typical Applications

• Industrial Products  Industrial multimedia and control systems that require a multicore processor with integrated graphics and broad peripheral support.
• Embedded Display Systems  Human‑machine interfaces and panel displays leveraging the LCD/display controllers and graphics acceleration.
• Networked Storage and Media  Embedded network and storage appliances using integrated Gigabit Ethernet and SATA 3Gbps connectivity.
• Multimedia Devices  Systems that connect displays and camera sensors or provide 1080p video processing and 2D/3D graphics acceleration.

Unique Advantages

• Quad-core processing at 1.2 GHz: Enables parallel execution of compute and multimedia workloads for responsive embedded applications.
• Broad memory compatibility: Supports LPDDR2, LVDDR3 and DDR3 with a 64-bit memory interface for flexible memory system design and high bandwidth.
• Comprehensive peripheral set: Integrated Gigabit Ethernet, SATA, multiple USB 2.0 PHYs and CAN reduce external component count and simplify board-level integration.
• Built-in multimedia acceleration: 2D/3D graphics processors and 1080p video processing support rich user interfaces and media playback.
• Extensive security capabilities: Hardware features such as ARM TrustZone, secure boot, cryptography and tamper detection strengthen device and data protection.
• Production-ready package and thermal range: 624-FCPBGA (21×21 mm) package and −20°C to 105°C operating range support industrial deployment and manufacturability.

Why Choose MCIMX6Q5EYM12AD?

MCIMX6Q5EYM12AD positions itself as a highly integrated solution in the i.MX 6 family, delivering multicore ARM® Cortex®-A9 performance together with graphics acceleration, rich connectivity and hardware security features. These capabilities make it well suited for embedded and industrial multimedia systems that demand processing headroom, display and video support, and robust I/O.

As part of the i.MX 6 series from NXP, the device benefits from series-level documentation and design support. Its combination of memory interface options, integrated power management and production-grade package and temperature range provides a durable foundation for scalable embedded designs.

Request a quote or submit a pricing inquiry for MCIMX6Q5EYM12AD to evaluate this i.MX 6Q processor for your next embedded or industrial multimedia design.
