MCIMX6Q5EYM12CE

The MCIMX6Q5EYM12CE is an NXP i.MX 6Q series multimedia applications processor based on quad ARM® Cortex®‑A9 cores running at 1.2 GHz. Designed for embedded and industrial applications, it combines multicore processing, graphics/video capabilities and a rich set of peripherals in a 624‑FCPBGA (21×21 mm) package.

Targeted for multimedia‑focused and industrial systems, this device delivers integrated connectivity and security features alongside memory interface flexibility to support responsive user interfaces, networking and peripheral-rich designs.

Key Features

• Quad ARM® Cortex®‑A9 cores, 32‑bit — Four cores up to 1.2 GHz provide parallel compute capacity for application and multimedia workloads.
• Multimedia and graphics acceleration — Includes 2D/3D graphics processing and 1080p video processing capabilities as detailed in the i.MX 6Dual/6Quad documentation.
• Flexible memory controllers — Supports LPDDR2, LVDDR3 and DDR3 memory interfaces for a range of system memory configurations.
• Comprehensive peripheral set — Integrated interfaces include Gigabit Ethernet (10/100/1000 Mbps), SATA 3 Gbps, USB 2.0 with PHY (4), and CAN for diverse I/O and connectivity needs.
• Display and user I/O — Display interface controllers for LCD and keypad support embedded HMIs and operator panels.
• Advanced security features — ARM TrustZone, boot security, cryptography, secure JTAG, secure memory and tamper detection capabilities enhance platform trustworthiness.
• Industrial temperature range — Rated for operation from −20 °C to 105 °C to suit a variety of embedded and industrial environments.

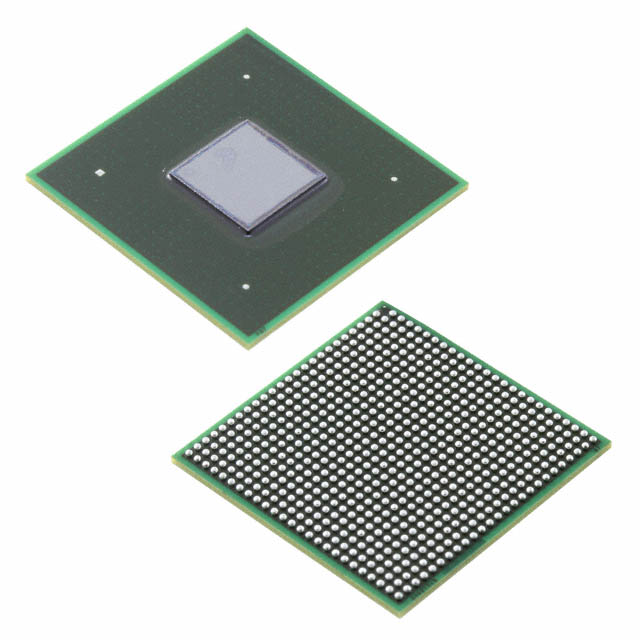

• Package and mounting — 624‑FCPBGA (21×21 mm), surface‑mount package suitable for dense board designs; package details available in i.MX documentation.

Typical Applications

• Industrial HMI and operator panels — Graphics acceleration, LCD interface and keypad support responsive, interactive displays for machine control and monitoring.
• Multimedia players and imaging — 1080p video processing and 2D/3D graphics enable video playback and UI rendering in multimedia products.
• Embedded networking and gateways — Integrated Gigabit Ethernet, multiple USB ports and CAN provide the connectivity required for networked embedded systems and gateways.
• Storage‑enabled embedded systems — SATA 3 Gbps support allows direct connection of mass storage for logging, data collection, and media applications.

Unique Advantages

• Highly integrated multimedia platform: Quad Cortex‑A9 cores combined with graphics and video processing reduce the need for auxiliary processors in multimedia designs.
• Broad peripheral connectivity: Built‑in Ethernet, SATA, USB and CAN simplify system architecture and reduce BOM complexity.
• Comprehensive security functionality: Multiple hardware security features (TrustZone, secure boot, cryptography, secure JTAG) support secure system designs.
• Memory flexibility: Support for LPDDR2, LVDDR3 and DDR3 memory types enables adaptability across performance and cost targets.
• Industrial temperature operation: −20 °C to 105 °C qualification supports deployment in a wide range of embedded and industrial environments.
• Documented platform family: The i.MX 6Dual/6Quad family provides detailed technical documentation and package information to assist design and production.

Why Choose MCIMX6Q5EYM12CE?

The MCIMX6Q5EYM12CE combines quad‑core Cortex‑A9 processing, multimedia acceleration and an extensive peripheral set in a compact 624‑FCPBGA package—making it well suited for embedded and industrial applications that require integrated connectivity, secure boot and robust I/O. Its support for multiple memory types and industrial temperature range adds design flexibility for a variety of system requirements.

This part is appropriate for engineers building HMI systems, multimedia devices, networked embedded equipment and storage‑enabled platforms that benefit from a documented i.MX 6Quad family and a feature set focused on multimedia, connectivity and security.

If you need pricing, lead time or a formal quote for MCIMX6Q5EYM12CE, request a quote or submit an inquiry to our sales team to get detailed availability and ordering information.
