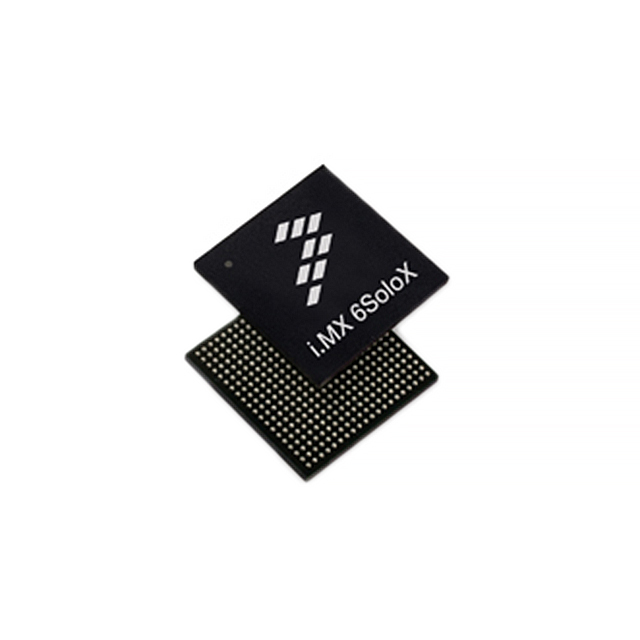

MCIMX6X1AVK08AB

The MCIMX6X1AVK08AB is an industrial‑qualified embedded microprocessor from NXP's i.MX 6X family. It combines ARM® Cortex®‑A9 and ARM® Cortex®‑M4 processing elements in a dual‑core, 32‑bit architecture suited for performance and real‑time tasks in embedded systems.

Designed for industrial and embedded applications, the device delivers integrated connectivity and security features alongside flexible memory support, packaged in a 400‑MAPBGA (14×14) surface‑mount package and rated for operation from ‑40 °C to 125 °C.

Key Features

• Dual‑Core Architecture  ARM® Cortex®‑A9 and ARM® Cortex®‑M4 cores in a 2‑core, 32‑bit configuration with core clocks at 800 MHz and 200 MHz.
• Memory Interface Support  Integrated controllers for LPDDR2, LVDDR3 and DDR3 memory types to match a range of system memory requirements.
• High‑Speed Networking  Dual 10/100/1000 Mbps Ethernet interfaces for robust wired connectivity and networking applications.
• USB Connectivity  Multiple USB controllers including USB 2.0 with PHY and USB 2.0 OTG with PHY for peripheral and host connectivity.
• Security and Trust  Comprehensive security feature set including A‑HAB, ARM TrustZone (ARM TZ), CAAM, CSU, SNVS, System JTAG and TVDECODE for secure boot, cryptography and system protection.
• Industrial Grade Operation  Qualified for industrial use and specified for an operating temperature range of ‑40 °C to 125 °C.
• Peripheral and Interface Support  On‑chip display interface controllers (Keypad, LCD) and additional interfaces such as AC'97 for legacy audio connectivity.
• Package and Mounting  Supplied in a 400‑MAPBGA (14×14) / 400‑LFBGA package suited for surface‑mount assembly in compact embedded designs.
• RoHS Compliant  Environmentally compliant with RoHS requirements.

Typical Applications

• Industrial Control Systems  Use the dual‑core architecture and industrial temperature rating for reliable control, I/O management and real‑time processing in factory automation.
• Human‑Machine Interfaces (HMI)  Drive keypad and LCD display interfaces and handle user interaction and application logic in operator panels and machine displays.
• Networked Embedded Gateways  Leverage dual Gigabit Ethernet and multiple USB ports for secure and high‑throughput edge gateway and networking appliances.
• Multimedia‑Enabled Embedded Devices  Employ the multimedia DSP and NEON™ MPE capabilities for embedded multimedia processing and application‑level acceleration.

Unique Advantages

• Heterogeneous Processing: Combination of Cortex‑A9 and Cortex‑M4 cores enables separation of high‑level application workloads and deterministic real‑time tasks.
• Flexible Memory Support: LPDDR2, LVDDR3 and DDR3 controller options simplify system design across performance and cost tradeoffs.
• Integrated Networking: Dual Gigabit Ethernet interfaces provide built‑in, high‑bandwidth wired connectivity for industrial and networking applications.
• Comprehensive Security Stack: On‑chip security engines and trust features (A‑HAB, ARM TZ, CAAM, CSU, SNVS) help implement secure boot, cryptographic services and system isolation.
• Rugged Industrial Qualification: Industrial grade qualification and wide operating temperature range support deployment in harsh environments.
• Compact Surface‑Mount Package: 400‑MAPBGA (14×14) packaging enables compact board designs while supporting high pin counts and signal density.

Why Choose MCIMX6X1AVK08AB?

The MCIMX6X1AVK08AB positions itself as a versatile, industrial‑qualified MPU that balances application processing and deterministic control by combining ARM® Cortex®‑A9 and Cortex®‑M4 cores. Its integrated connectivity, memory flexibility and extensive security features make it well suited for embedded designs that require robust networking, multimedia processing and secure operation.

This device is ideal for engineers designing industrial control systems, HMIs, networked gateways and other embedded platforms that demand a compact, surface‑mount solution with proven series heritage and vendor support from the i.MX 6X family.

Request a quote or submit a procurement inquiry to receive pricing and availability information for MCIMX6X1AVK08AB.
