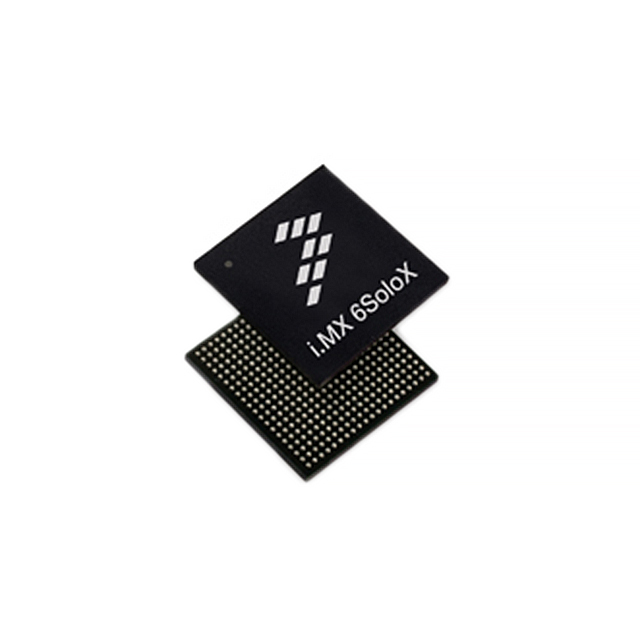

MCIMX6X1AVO08AB

The MCIMX6X1AVO08AB is an industrial-qualified microprocessor IC from NXP's i.MX 6X series combining ARM® Cortex®-A9 and ARM® Cortex®-M4 cores in a compact 400-MAPBGA (17×17) package. The device pairs a high-performance Cortex-A9 operating at 800 MHz with a 32-bit Cortex-M4 at 200 MHz to deliver a heterogeneous processing platform optimized for embedded and industrial designs.

Designed for connected, multimedia-enabled embedded applications, this MPU provides integrated memory controller support, multi-port Ethernet, USB connectivity, and on-chip security features for robust, long-life deployments.

Key Features

• Dual-Core Architecture  ARM® Cortex®-A9 and ARM® Cortex®-M4 cores in a 2-core, 32-bit configuration offering both application processing and real-time control capability (A9 at 800 MHz; M4 at 200 MHz).
• Memory Interfaces  On-chip controllers for LPDDR2, LVDDR3 and DDR3 memories to support flexible system memory configurations.
• Connectivity  Two 10/100/1000 Mbps Ethernet ports and multiple USB interfaces: one USB 2.0 host with PHY plus two USB 2.0 OTG ports with PHYs, enabling high-speed network and peripheral integration.
• Multimedia and DSP Acceleration  Includes multimedia co-processor support and NEON™ MPE for signal processing and accelerated media algorithms.
• Security and System Integrity  Integrated security features such as A-HAB, ARM TrustZone, CAAM, CSU, SNVS, System JTAG and TVDECODE to help protect boot, runtime and cryptographic operations.
• Display and Audio Interfaces  Display interface controllers for LCD and keypad support and an AC'97 audio interface for legacy audio codecs and systems.
• Package and Mounting  Supplied in a 400-MAPBGA (17×17) surface-mount package; package case listed as 400-LFBGA for consistent board-level integration.
• Industrial Temperature Range  Qualified for operation from −40 °C to 125 °C, suitable for demanding environmental conditions.

Typical Applications

• Automotive Infotainment and HMI  Dual-core processing plus multi-gigabit Ethernet and multimedia acceleration make the device suitable for infotainment, head units and advanced human-machine interfaces.
• Industrial Control and Automation  Industrial temperature qualification and integrated real-time Cortex-M4 allow for combined control, connectivity and monitoring in industrial equipment.
• Medical and Professional Devices  Scalable CPU performance, secure boot and robust connectivity enable reliable operation in medical and professional embedded systems.
• Media Gateways and Set-Top Devices  Multimedia co-processing, NEON support and high-speed network interfaces support media-centric gateway and set-top applications.

Unique Advantages

• Heterogeneous Processing: Combines an ARM Cortex-A9 application core with a Cortex-M4 real-time core, enabling separation of high-level OS workloads and deterministic control tasks.
• Broad Memory Support: Built-in controllers for LPDDR2, LVDDR3 and DDR3 provide flexibility to match performance and cost targets across designs.
• Integrated Connectivity: Dual Gigabit Ethernet and multiple USB 2.0 ports with PHYs reduce external component count and simplify board-level design.
• Comprehensive Security: Multiple on-chip security blocks (A-HAB, TrustZone, CAAM, CSU, SNVS) support protected boot and cryptographic services for secure deployments.
• Industrial-Grade Reliability: Operation across −40 °C to 125 °C and industrial qualification support long-term use in harsh environments.
• Compact Packaging: 400-MAPBGA (17×17) package enables a small PCB footprint while providing extensive I/O and integration.

Why Choose MCIMX6X1AVO08AB?

The MCIMX6X1AVO08AB positions itself as a versatile, industrial-grade MPU that balances application-level performance and real-time control in a single, integrated device. With dedicated memory interfaces, multiple high-speed connectivity options and built-in security blocks, it is suited to embedded systems that require reliable operation, secure boot/runtime behavior and flexible system integration.

This part is a fit for engineers and product teams building industrial HMI, infotainment, media or control systems that demand long-term availability, scalable performance and consolidated functionality in a compact surface-mount package.

Request a quote or submit a procurement inquiry to receive pricing, availability and lead-time details for MCIMX6X1AVO08AB. Our team will assist with configuration and volume requirements to support your project timelines.
