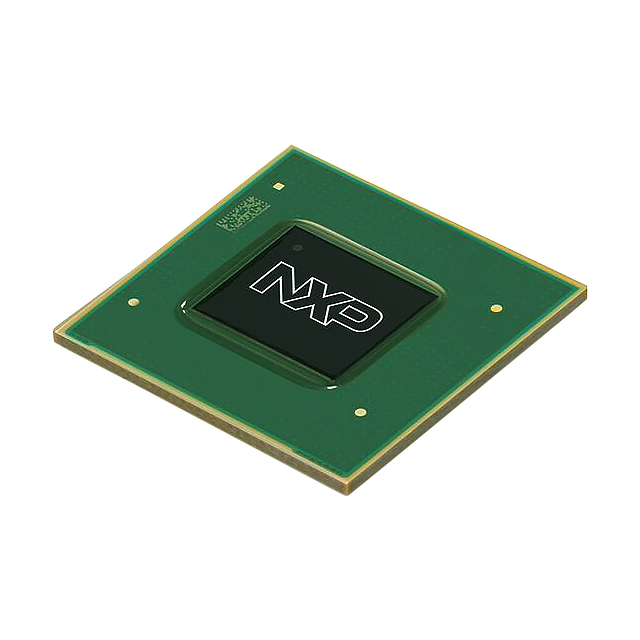

MIMX8MD6DVAJZAB

The MIMX8MD6DVAJZAB is an NXP i.MX 8MD family microprocessor IC featuring a dual ARM® Cortex®-A53 application core running at up to 1.5 GHz and an ARM® Cortex®-M4 coprocessor for low-power processing. It targets consumer-focused embedded systems that require multimedia capabilities, rich connectivity and security features in a compact surface-mount package.

With integrated support for multiple display interfaces, high-speed USB and GbE connectivity, and an array of security subsystems, this 621-FCPBGA (17 × 17 mm) device is suited for connected streaming audio/video, scanning/imaging and other consumer multimedia applications that demand performance and integration.

Key Features

• Processing Cores  Dual ARM® Cortex®-A53 64-bit cores at up to 1.5 GHz for application processing, plus an ARM® Cortex®-M4 coprocessor for low-power and real-time tasks.
• Memory Interface  Integrated DRAM controller supporting DDR3L, DDR4 and LPDDR4 memory types for flexible system memory design.
• Display & Multimedia  Display interface controllers including eDP, HDMI, MIPI‑CSI and MIPI‑DSI, with graphics acceleration to support multimedia workloads.
• Connectivity  Gigabit Ethernet (GbE) and dual USB 3.0 ports provide high-speed network and peripheral connectivity.
• Security Subsystems  Hardware security features including ARM TrustZone (TZ), CAAM, HAB, RDC, RTC, SJC and SNVS for device and data protection.
• I/O & Expansion  Additional interfaces such as EBI/EMI expand peripheral and external memory connectivity options.
• Package & Mounting  621‑FCPBGA surface-mount package (17 × 17 mm) with FCBGA termination for compact system integration.
• Operating Range & Qualification  Consumer qualification with an operating temperature range of 0 °C to 95 °C and RoHS compliance.

Typical Applications

• Streaming audio/video devices  Use the dual A53 cores, graphics acceleration and HDMI/eDP outputs to enable high-quality multimedia playback and display connectivity.
• Scanning and imaging systems  MIPI‑CSI support and robust processing cores provide the throughput and interfacing needed for camera and image-processing applications.
• Consumer multimedia products  Integrated USB 3.0, GbE and security features make the device suitable for connected consumer devices that require secure high-speed I/O and media handling.

Unique Advantages

• High-performance dual-core architecture: Dual 64-bit ARM® Cortex®-A53 cores at up to 1.5 GHz deliver responsive application performance for multimedia and user-facing tasks.
• Dedicated low-power coprocessor: The ARM® Cortex®-M4 enables real-time or low-power background processing without taxing the main application cores.
• Flexible memory support: DDR3L, DDR4 and LPDDR4 controller support allows designers to choose memory technology that balances cost, power and performance.
• Rich multimedia interfaces: eDP, HDMI, MIPI‑CSI and MIPI‑DSI plus graphics acceleration simplify integration of displays and cameras.
• Integrated high-speed I/O: Dual USB 3.0 ports and GbE provide the bandwidth required for peripherals, storage and networked media.
• Comprehensive security mix: ARM TZ, CAAM, HAB and other security modules support hardware-based protection and system isolation features.
• Compact surface-mount package: The 621‑FCPBGA (17 × 17 mm) package supports dense PCB designs while maintaining thermal and routing characteristics suitable for consumer products.

Why Choose MIMX8MD6DVAJZAB?

The MIMX8MD6DVAJZAB balances application performance and system integration for consumer multimedia and connected devices. Its combination of dual Cortex‑A53 cores, a Cortex‑M4 coprocessor, flexible DRAM support and broad display and I/O interfaces offers designers a platform capable of handling demanding media workloads while supporting secure, high-speed connectivity.

This device is well suited to engineers developing consumer-focused embedded systems that require scalable performance, integrated security features and a compact BGA footprint. Its RoHS compliance and consumer qualification support deployment in volume consumer products with established supply-chain expectations.

Request a quote or submit a sales inquiry to get pricing, lead-time and availability for the MIMX8MD6DVAJZAB.
