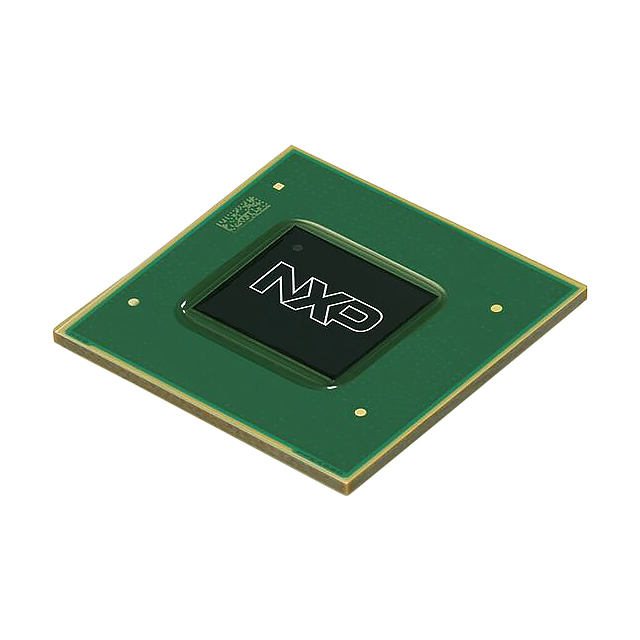

MIMX8MD6DVAJZAA

The MIMX8MD6DVAJZAA is an ARM® Cortex®-A53 based microprocessor from the i.MX 8MD series delivering dual-core, 64-bit performance at up to 1.5 GHz. It integrates an ARM® Cortex®-M4 coprocessor and a broad set of high-bandwidth interfaces, making it suitable for consumer embedded designs that require multimedia, connectivity, and hardware security.

This device supports modern memory types and multiple display and camera interfaces while providing hardware security features and a compact 621-FCPBGA (17×17) surface-mount package for space-constrained applications.

Key Features

• Core and Coprocessor  Dual ARM® Cortex®-A53 64-bit cores running up to 1.5 GHz with an integrated ARM® Cortex®-M4 coprocessor for offloading real-time tasks.
• Memory Support  Flexible memory controller support for DDR3L, DDR4 and LPDDR4 to match a range of performance and power targets.
• Display and Imaging  Multiple display and camera interfaces including eDP, HDMI, MIPI-CSI and MIPI-DSI to enable high-quality user interfaces and vision applications.
• High-Speed Connectivity  Integrated Gigabit Ethernet and dual USB 3.0 ports provide high-throughput wired networking and peripheral connectivity.
• Security and Trusted Boot  Comprehensive security features including ARM TrustZone (TZ), CAAM, HAB, RDC, RTC, SJC and SNVS for device integrity and secure operation.
• Graphics Acceleration  On-chip graphics acceleration to support enriched graphical user interfaces and multimedia playback.
• Package and Mounting  Compact 621-FCPBGA (17×17) FCBGA package with surface-mount mounting for dense PCB designs.
• Temperature and Qualification  Rated for operation from 0 °C to 95 °C and qualified for consumer applications.
• Additional Interfaces  External bus interfaces (EBI/EMI) for connection to legacy or custom peripherals.
• RoHS Compliant  Meets RoHS environmental requirements for lead-free manufacturing.

Typical Applications

• Multimedia and Display Systems  Drive high-resolution displays and multimedia playback using eDP, HDMI, MIPI-DSI and on-chip graphics acceleration.
• Vision and Camera Devices  Integrate MIPI-CSI interfaces for camera capture and processing in imaging applications.
• Edge Compute and Embedded Platforms  Combine dual A53 cores and an M4 coprocessor for balanced application processing and real-time control.
• Connected Consumer Devices  Provide wired connectivity and high-speed peripheral support via Gigabit Ethernet and dual USB 3.0 ports.

Unique Advantages

• Balanced Processing Architecture: Dual 64-bit A53 cores with an M4 coprocessor enable separation of application and real-time workloads.
• Broad Memory Flexibility: Support for DDR3L, DDR4 and LPDDR4 simplifies BOM choices across multiple performance tiers.
• Extensive Display and Camera I/O: Multiple hardened interfaces (eDP, HDMI, MIPI-CSI, MIPI-DSI) reduce external bridge requirements for multimedia designs.
• Integrated Security Stack: Multiple hardware security features support secure boot and runtime isolation for consumer applications.
• High-Speed Peripheral Support: Dual USB 3.0 ports and Gigabit Ethernet enable fast data transfer and networking capabilities.
• Compact, Board-Friendly Package: 621-FCPBGA (17×17) package balances PCB area and integration for space-constrained designs.

Why Choose MIMX8MD6DVAJZAA?

The MIMX8MD6DVAJZAA positions itself as a performance-oriented, integrated microprocessor option for consumer embedded designs that require multimedia capabilities, robust connectivity, and hardware-backed security. Its dual-core ARM® Cortex®-A53 engine combined with an ARM® Cortex®-M4 coprocessor and flexible memory options make it suitable for applications that demand both application processing and real-time control.

With a compact FCBGA package, wide display and camera interface support, and RoHS compliance, this device offers a tightly integrated platform for designers building compact, connected consumer products that require secure, multimedia-capable compute.

Request a quote or submit an inquiry today to check availability and pricing for MIMX8MD6DVAJZAA.
