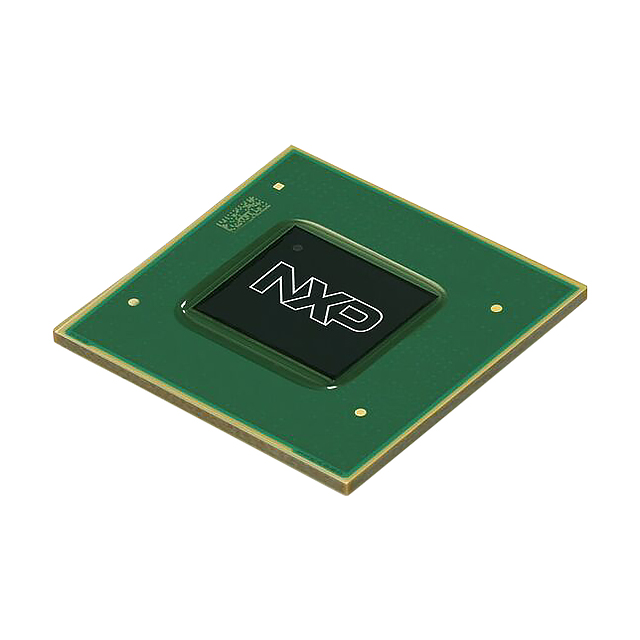

MIMX8MD6CVAHZAA

The MIMX8MD6CVAHZAA is an NXP i.MX 8MD-series microprocessor IC featuring dual ARM® Cortex®-A53 64‑bit cores running at 1.3 GHz and an integrated ARM® Cortex®-M4 co-processor. It is designed for embedded applications that require multimedia processing, secure system control and a wide set of high-speed interfaces.

This device targets streaming video and audio, voice-control and HMI designs, offering a balance of performance, hardware-accelerated graphics/video capabilities and industrial-grade reliability for designs that need robust operation across –40 °C to 105 °C.

Key Features

• Core & Architecture Dual ARM® Cortex®-A53 64‑bit processors at 1.3 GHz with an ARM® Cortex®-M4 co-processor for real-time and low-power tasks.
• Memory Support External memory controller support for DDR3L, DDR4 and LPDDR4 options to match performance and system power targets.
• Display & Video Display interfaces include eDP, HDMI and MIPI-DSI; series-level multimedia capabilities include 4K UltraHD, 10‑bit video and HDR (HDR10, HLG) processing.
• Audio Advanced audio processing capability indicated for multi-channel pro audio and high-fidelity streaming (series-level audio features described in product family documentation).
• High-speed Interfaces Two USB 3.0 ports, Gigabit Ethernet (GbE) and additional EBI/EMI interfaces for broad connectivity.
• Graphics Acceleration Hardware graphics acceleration supported to enable rich HMI and UI frameworks.
• Security & Secure Boot On-chip security features including ARM TrustZone (ARM TZ), CAAM, HAB, RDC, RTC, SJC and SNVS for platform integrity and secure provisioning.
• Package & Mounting 621‑FCPBGA (17 × 17 mm) FCBGA package, surface-mount mounting type.
• Industrial Qualification & Temperature Industrial-grade qualification with operating temperature range of –40 °C to 105 °C.
• Compliance RoHS compliant.

Typical Applications

• Streaming Video Devices OTT set-top boxes, digital media adapters and digital signage that require 4K/HDR playback and multiple display/connectivity options.
• Streaming Audio & AV Systems Networked speakers, sound bars and AV receivers benefiting from high-channel audio support and advanced audio interfaces.
• Voice Control & Assistants Voice-enabled devices and voice assistants leveraging on-chip audio processing and real-time co-processor control for responsive voice interaction.
• Human Machine Interfaces (HMI) Touch and graphical HMIs, industrial control panels and machine-vision front-ends requiring graphics acceleration and camera/display interfaces.
• Machine Vision & Inspection Embedded inspection and image-analytics systems using MIPI-CSI camera inputs and hardware video processing.

Unique Advantages

• Balanced Performance and Power: Dual 64‑bit Cortex‑A53 cores with an M4 co-processor let designers separate high-performance application processing from low-power, real-time tasks.
• Multimedia-Ready Platform: Native support for multiple display interfaces and series-level 4K/HDR video plus hardware graphics acceleration simplifies advanced HMI and media designs.
• Flexible Memory Options: Support for DDR3L, DDR4 and LPDDR4 lets you optimize for cost, performance or standby power in system designs.
• Comprehensive Connectivity: Two USB 3.0 ports and GbE provide high-throughput paths for peripherals, storage and networked media streaming.
• Security Built In: Integrated TrustZone and CAAM/HAB/SNVS features provide a foundation for secure boot, cryptography and system isolation.
• Industrial Reliability: Industrial temperature qualification (–40 °C to 105 °C) and a robust BGA package support demanding embedded deployments.

Why Choose MIMX8MD6CVAHZAA?

The MIMX8MD6CVAHZAA delivers a practical combination of application-level compute, multimedia capabilities and on-chip security in a compact 621‑FCPBGA package. Its dual Cortex‑A53 cores together with a Cortex‑M4 co-processor and broad external memory and interface support make it suitable for developers building streaming media, voice-enabled and advanced HMI systems that require an industrial temperature range.

Choosing this device offers scalability within the i.MX 8M family, a range of high-speed interfaces for modern connected designs and the security primitives needed for protected deployments—helping reduce BOM complexity while maintaining performance and reliability.

Request a quote or submit a purchasing inquiry to receive pricing, availability and lead-time information for the MIMX8MD6CVAHZAA.
