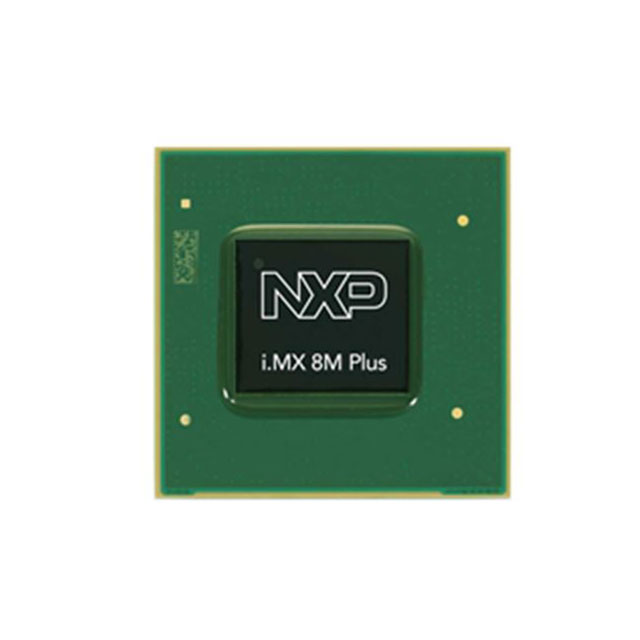

MIMX8ML3CVNKZAB

The MIMX8ML3CVNKZAB is an industrial-grade microprocessor from NXP's i.MX 8ML family featuring a dual-core ARM® Cortex®-A53 application processor running at up to 1.6 GHz. It combines application cores with a real-time ARM® Cortex®-M7 coprocessor and dedicated multimedia/DSP capabilities to address embedded designs requiring responsive control, multimedia and secure connectivity.

Designed for embedded and industrial markets, this device delivers a balanced mix of compute, graphics and I/O integration — including multi‑display interfaces, dual Gigabit Ethernet, USB 3.0/2.0 and CAN — in a compact 548-LFBGA (15 x 15 mm) package and an extended operating range.

Key Features

• Core and Coprocessors Dual ARM® Cortex®-A53 64-bit cores at up to 1.6 GHz with an integrated ARM® Cortex®-M7 real-time coprocessor and multimedia/DSP engines (NEON™ MPE, Hi-Fi4 DSP) for mixed application and real-time workloads.
• Memory Support Integrated controllers for DDR4 and LPDDR4 memory to support high-bandwidth system memory configurations.
• Multimedia and Graphics Graphics acceleration is provided to support rich user interfaces and display applications; multiple display interfaces include MIPI-DSI, LVDS and HTML-capable controllers along with MIPI-CSI for camera input.
• High-speed Connectivity Dual Gigabit Ethernet ports and multiple USB interfaces (USB 3.0 + PHY ×2, USB 2.0 + PHY ×2) enable high-throughput networking and peripheral connectivity.
• Automotive-style Fieldbus and I/O CAN interface support broadens applicability in industrial networks and control applications.
• Security and System Protection Hardware security features include ARM TrustZone (ARM TZ), CAAM and Resource Domain Controller (RDC) to help implement secure boot, cryptographic acceleration and resource isolation.
• Industrial Qualification and Temperature Range Industrial-qualified device with an operating temperature range of -40 °C to 105 °C for deployment in harsh environments.
• Package 548-LFBGA package in a 15 × 15 mm footprint with 0.5 mm pitch, suitable for surface-mount assembly in compact embedded designs.

Typical Applications

• Industrial Automation: Use as an embedded controller and gateway processor combining real-time control (Cortex‑M7), networking (dual GbE, CAN) and security for factory automation and machine control.
• Vision and Imaging Systems: Leverage MIPI-CSI camera inputs and multimedia/DSP engines for image capture, preprocessing and edge analytics in inspection and vision-guided devices.
• Human-Machine Interfaces (HMI): Drive rich displays and graphics-accelerated user interfaces using MIPI-DSI, LVDS and integrated graphics acceleration.
• Edge Compute and Connectivity Gateways: Combine high-speed Ethernet, USB 3.0 and hardware security to implement secure edge processing and connected gateway functions.

Unique Advantages

• Balanced heterogeneous architecture: Dual Cortex‑A53 application cores together with a Cortex‑M7 coprocessor and DSP blocks provide a flexible platform for mixed application and real‑time tasks.
• Comprehensive I/O integration: Multiple high-speed interfaces including dual GbE, USB 3.0/2.0, CAN and MIPI display/camera ports reduce external bridge components and BOM complexity.
• Industrial-ready thermal and qualification profile: Industrial qualification and an extended -40 °C to 105 °C operating range support deployment in demanding environments.
• Hardware security primitives: ARM TrustZone, CAAM and RDC enable designers to implement secure boot, cryptographic acceleration and domain partitioning without relying solely on software.
• Compact, manufacturable package: 548-LFBGA (15 × 15 mm, 0.5 mm pitch) provides a small footprint for space-constrained boards while remaining compatible with standard surface-mount assembly processes.

Why Choose MIMX8ML3CVNKZAB?

The MIMX8ML3CVNKZAB positions itself as a versatile embedded processor for industrial and edge applications that require a blend of application performance, real-time control and secure connectivity. Its heterogeneous core topology, multimedia/DSP capabilities and broad set of connectivity options enable consolidation of control, vision and HMI functions onto a single device.

For teams developing compact, rugged embedded systems, this industrial-qualified MPU offers scalable performance, integrated security features and a compact BGA footprint that help reduce system complexity and improve long-term maintainability.

Request a quote or submit an inquiry to receive pricing and availability information for MIMX8ML3CVNKZAB.
