MIMX8QX6AVLFZAC

The MIMX8QX6AVLFZAC from NXP Semiconductors is a high-integration microprocessor in the i.MX 8QX series featuring a heterogeneous ARM architecture. It combines ARM® Cortex®-A53 application cores with an ARM® Cortex®-M4F real-time core to address embedded designs that require multicore compute, multimedia processing and secure system integration.

Targeted at embedded multimedia and infotainment-class designs, the device delivers a balance of application processing, real-time control and hardware-accelerated media/display support while providing multiple memory and peripheral interface options for flexible system designs.

Key Features

• Core Architecture – ARM® Cortex®-A53 and ARM® Cortex®-M4F cores in a 3-core, 64-bit configuration to separate application and real-time workloads.
• Multimedia and DSP – Integrated multimedia co-processors including NEON and a Tensilica® HiFi4 DSP for advanced audio and media processing and acceleration.
• Memory Support – Memory interfaces for DDR3L SDRAM and LPDDR4 DRAM; datasheet references support for QuadSPI or OctalSPI (FlexSPI) for external flash.
• Display and Vision Interfaces – Display controllers and interfaces including LCD, LVDS, MIPI‑CSI and MIPI‑DSI; architecture supports multiple displays and failover-ready display control as described in the datasheet.
• High-Speed Connectivity – Two 10/100/1000 Mbps Ethernet ports and combined USB connectivity with USB 3.0 OTG + PHY (1) and USB 2.0 OTG + PHY (1).
• Graphics and Video – Separate GPU and VPU subsystems are included for graphics acceleration and video processing as noted in the technical datasheet.
• Security and Trusted Boot – On-chip security features including 3DES, DES, MD5, SHA, ARM TrustZone (ARM TZ), CAAM and A‑HAB along with SNVS for secure non-volatile storage.

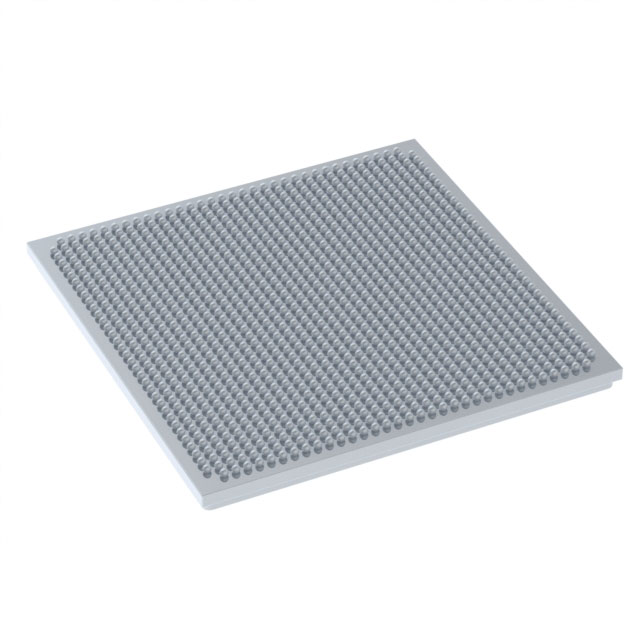

• Package and Mounting – 609‑FBGA supplier device package (21 × 21 mm) in a surface-mount BGA form factor; datasheet also documents FCPBGA 21 × 21 mm outlines and 0.8 mm pitch.
• Compliance – RoHS status: Compliant.

Typical Applications

• Infotainment Systems – Multi-display and multimedia-capable processor for in‑vehicle infotainment and cockpit display domains where multiple display outputs and media processing are required.
• Multimedia and Audio Processing – Advanced multicore audio processing and voice recognition workflows leveraging NEON and the HiFi4 DSP for pre/post audio tasks.
• Vision and Camera Systems – Systems requiring MIPI‑CSI camera inputs and GPU/VPU acceleration for image/video processing and display output.
• Embedded Human-Machine Interfaces – High-performance application cores plus real-time M4F support responsive user interfaces with simultaneous background real-time control.

Unique Advantages

• Heterogeneous compute in one device: Combines ARM® Cortex®‑A53 application cores and an ARM® Cortex®‑M4F real-time core to consolidate application and control tasks on a single MPU.
• Integrated media and audio acceleration: NEON and HiFi4 DSP plus dedicated GPU/VPU subsystems reduce external accelerator requirements for multimedia and audio workloads.
• Flexible memory and boot options: Supports DDR3L and LPDDR4 memories and FlexSPI (Quad/Octal) flash interfaces for adaptable system memory architectures.
• Comprehensive I/O and high-speed links: Dual gigabit Ethernet and both USB 3.0 and USB 2.0 OTG PHYs enable high-throughput networking and peripheral connectivity.
• Built-in security primitives: On-chip cryptographic engines, secure boot components and secure non-volatile storage primitives provide a platform for building trusted systems.
• Industry-grade package options: Documented 21 × 21 mm FCPBGA package outlines and surface-mount BGA assembly provide common form-factor choices for embedded board designs.

Why Choose MIMX8QX6AVLFZAC?

The MIMX8QX6AVLFZAC positions itself as a balanced, integrated microprocessor for embedded designs that require application-level compute, real-time control and rich multimedia/display capabilities. Its combination of ARM® Cortex® cores, dedicated DSP and media subsystems, flexible memory interfaces and broad I/O set make it suitable for infotainment-class and advanced embedded multimedia systems.

Engineers and system designers will find a platform that reduces external component needs while offering the peripherals and security primitives to build robust, secure systems with multiple display and high-speed connectivity requirements. The device’s documented package outlines and RoHS compliance support standard manufacturing flows for embedded product development.

Request a quote or submit a procurement inquiry to receive pricing and availability information for MIMX8QX6AVLFZAC.
