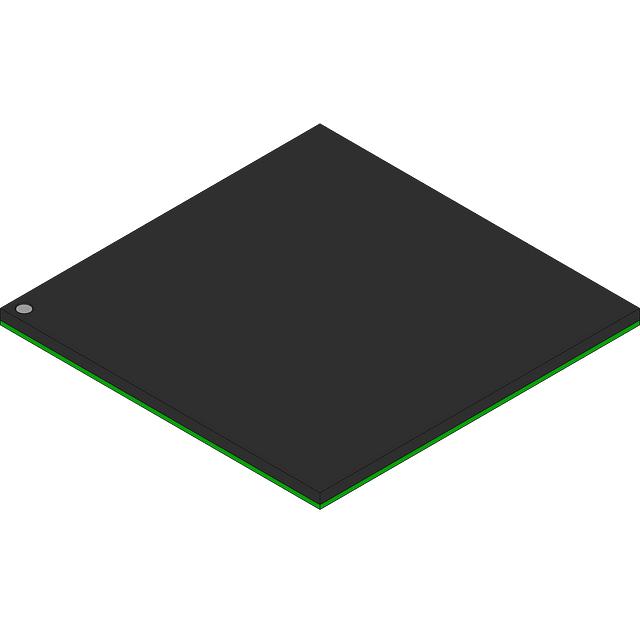

MPC875VR66-NXP

The MPC875VR66-NXP is a 32-bit MPC8xx-series microprocessor IC featuring a single core running at 66 MHz in a 256-pin PBGA (23×23) package. It integrates communications and security co-processors and a DRAM controller, providing a compact solution for embedded designs.

Designed for embedded and consumer applications, this device offers on-chip Ethernet, USB 2.0, I2C and cryptography capabilities, enabling streamlined system integration where communications and security are required alongside general-purpose processing.

Key Features

• Core  Single 32-bit MPC8xx core operating at 66 MHz, suitable for deterministic embedded control and protocol handling.
• Memory & Controllers  Integrated DRAM controller to interface with external memory for system and application data storage.
• Interfaces & Connectivity  Multiple networking and peripheral interfaces including one 10 Mbps Ethernet port, two 10/100 Mbps Ethernet ports, one USB 2.0 port, and I2C for peripheral management.
• Co-Processors  Dedicated communications co-processor (CPM) and security co-processor (SEC) to offload protocol and cryptographic tasks from the main core.
• Security Features  On-chip cryptography support to enable secure communications and data handling in embedded systems.
• Power & IO  3.3 V I/O signaling compatible with common embedded peripheral voltage domains.
• Package & Mounting  256-PBGA (23×23) / 256-BBGA package, surface-mount mounting type for compact board-level integration.
• Operating Range  Rated for operation from 0 °C to 95 °C, suitable for consumer-grade environments.
• Environmental Compliance  RoHS compliant.

Typical Applications

• Consumer Electronics  Control and connectivity functions in consumer devices that require USB and Ethernet interfaces with cryptographic support.
• Networked Devices  Small-scale routers, bridges or network peripherals leveraging the integrated 10/100 Mbps Ethernet ports and communications co-processor.
• Embedded Communications Controllers  Protocol handling and offload tasks using the CPM alongside the main MPC8xx core for reliable data throughput.
• Secure Peripheral Gateways  Devices requiring on-board cryptography for secure data exchange and authenticated connections.

Unique Advantages

• Integrated Communications Subsystem: Embedded CPM and multiple Ethernet interfaces reduce external component count for networked applications.
• On-Board Security Acceleration: SEC co-processor and cryptography features enable hardware-accelerated security functions, improving throughput for secure communications.
• Compact PBGA Package: 256-pin PBGA (23×23) footprint provides dense pinout and surface-mount compatibility for space-constrained designs.
• Standard 3.3 V I/O: 3.3 V signaling simplifies interfacing with a wide range of peripherals and legacy embedded components.
• Consumer-Grade Qualification: Targeted for consumer applications with an operating range of 0 °C to 95 °C and RoHS compliance for regulatory alignment.
• Manufacturer Backing: Supplied by NXP Semiconductors, leveraging the established MPC8xx architecture for embedded system designs.

Why Choose MPC875VR66-NXP?

The MPC875VR66-NXP combines a 32-bit MPC8xx core with dedicated communications and security co-processors, integrated Ethernet, USB 2.0 and DRAM controller in a compact 256-PBGA package. This balance of processing, connectivity and cryptographic capability makes it well suited for embedded consumer and communications-oriented products where integration and board-level density matter.

As a RoHS-compliant device from NXP Semiconductors, the MPC875VR66-NXP is positioned for designs that require reliable consumer-grade operation across a 0 °C to 95 °C range and streamlined integration of networking and security features, reducing system complexity and component count.

Request a quote or submit a pricing inquiry to our sales team for availability, lead times and volume pricing for the MPC875VR66-NXP.
