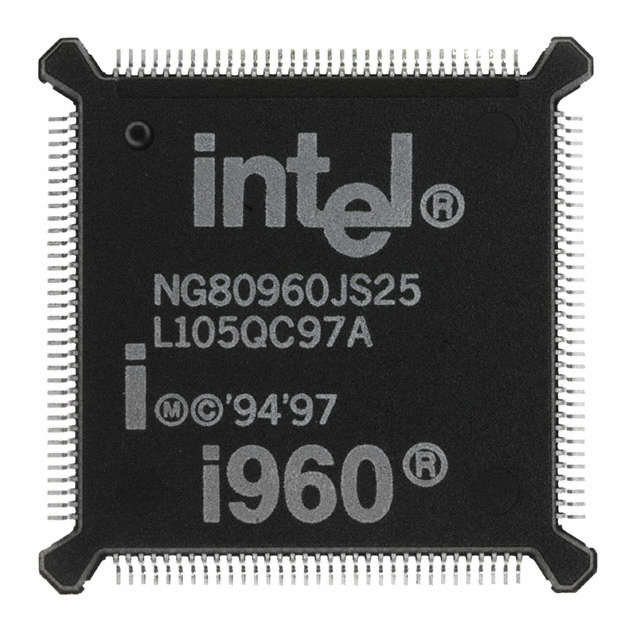

NG80960JS25

The NG80960JS25 is an Intel i960 series microprocessor in a single‑core, 32‑bit implementation operating at 25 MHz. Designed for embedded, commercial applications, it provides a balance of integration and straightforward I/O compatibility for systems requiring a compact 32‑bit processing element.

Key on‑chip characteristics include a 32‑bit i960 core, DRAM controller support, 3.3 V I/O signaling and a surface‑mount 132‑QFP package with bumpered body for board mounting and thermal handling within a 0 °C to 100 °C operating range.

Key Features

• Core — Single i960 core, 32‑bit architecture operating at 25 MHz, suited for standard embedded processing tasks.
• Memory Support — Integrated DRAM controller capability to interface with external DRAM memory devices.
• Voltage & I/O — 3.3 V I/O voltage level for compatibility with common logic families and board standards.
• Package & Mounting — 132‑BQFP bumpered package (supplier device package: 132‑QFP) in a surface‑mount form factor for compact PCB layouts.
• Temperature Range — Commercial operating temperature from 0 °C to 100 °C, suitable for typical commercial embedded environments.
• Environmental Compliance — RoHS compliant, supporting lead‑free manufacturing requirements.
• Graphics — No graphics acceleration, focusing device capability on general‑purpose embedded processing.

Typical Applications

• Embedded systems — General 32‑bit processing for compact embedded designs where a commercial‑grade microprocessor is required.
• Commercial electronics — Applications in commercial equipment that require a surface‑mount, RoHS‑compliant 32‑bit MPU with DRAM support.
• Board‑level integration — Designs that benefit from a 132‑QFP surface‑mount package with bumpered body for stable PCB mounting.

Unique Advantages

• Established i960 core: Provides a single 32‑bit processing core at 25 MHz for deterministic embedded workloads.
• 3.3 V I/O compatibility: Simplifies integration with common logic levels and peripheral devices on commercial PCBs.
• Onboard DRAM controller support: Reduces external controller requirements and streamlines memory interfacing.
• Compact surface‑mount package: 132‑QFP bumpered package enables dense PCB layouts while offering mechanical protection.
• RoHS compliant: Supports lead‑free assembly processes and regulatory compliance for commercial manufacturing.
• Commercial temperature rating: Operates across 0 °C to 100 °C for standard commercial‑grade deployments.

Why Choose NG80960JS25?

The NG80960JS25 positions itself as a practical, commercial‑grade 32‑bit microprocessor option within the i960 family, combining a single i960 core with DRAM controller support and 3.3 V I/O for straightforward system integration. Its surface‑mount 132‑QFP bumpered package and RoHS compliance make it suitable for compact, lead‑free commercial designs operating within a 0 °C to 100 °C range.

This part is appropriate for engineers and procurement teams seeking a compact embedded MPU with clear electrical and mechanical specifications, offering long‑term usefulness in commercial embedded product lines where Intel i960 architecture is desired.

Please request a quote or submit an inquiry to receive pricing, availability, and ordering details for NG80960JS25.
