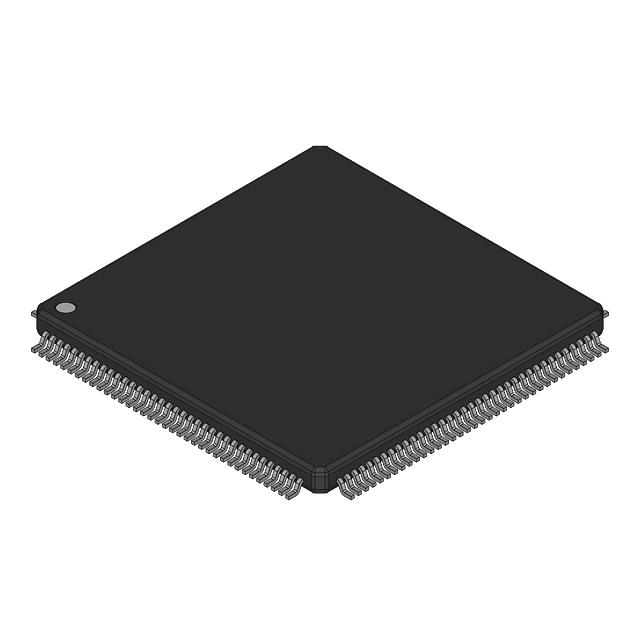

NG80960JF33

The NG80960JF33 is a microprocessor IC based on the Intel i960 core architecture, delivering 32-bit RISC processing at 33 MHz. Designed for embedded applications, it combines a single 32-bit core with on-board DRAM controller support and 3.3 V I/O signaling.

Packaged in a PQFP132 surface-mount format and specified for commercial-grade operation, the NG80960JF33 targets embedded system designs that require a compact, RoHS-compliant processor solution with a 0 °C to 100 °C operating range.

Key Features

• Core  Single Intel i960 core providing 32-bit RISC processing at 33 MHz for deterministic embedded compute tasks.
• Memory Support  DRAM controller support is provided to enable external memory interfacing for program and data storage.
• Power  3.3 V I/O voltage level for compatibility with common embedded logic and peripherals.
• Package & Mounting  PQFP132 package in a surface-mount form factor for PCB assembly in compact embedded boards.
• Operating Temperature  Specified commercial operating range of 0 °C to 100 °C suitable for typical indoor and controlled-environment applications.
• Grade  Commercial-grade component appropriate for general embedded product lines.
• Graphics  No graphics acceleration — suitable for applications focused on control, data processing, and deterministic compute rather than display rendering.
• Environmental Compliance  RoHS compliant to support regulatory requirements for lead-free manufacturing.

Typical Applications

• Embedded Controllers  Use as the primary control processor in embedded systems where a single 32-bit RISC core and DRAM interface are required for application logic and buffering.
• Industrial Automation  Deploy in industrial control and automation equipment that operate within a 0 °C to 100 °C range and require 3.3 V I/O compatibility.
• Communications Equipment  Integrate into communications and network devices that need deterministic processing and external DRAM for packet or data handling.
• Instrumentation & Test  Suitable for measurement and test instruments that leverage a compact PQFP132 surface-mount processor with standard commercial temperature ratings.

Unique Advantages

• Proven i960 RISC Core:  Leverages the Intel i960 architecture to provide a known 32-bit RISC processing model for embedded application development.
• Compact Surface-Mount Package:  PQFP132 surface-mount packaging enables dense board layouts and standard PCB assembly processes.
• Standard 3.3 V I/O:  3.3 V I/O simplifies interfacing with common logic families and peripheral devices in modern embedded systems.
• DRAM Controller Integration:  On-board DRAM controller support reduces system-level memory design complexity and BOM count.
• Commercial Temperature Range:  Rated 0 °C to 100 °C to meet requirements for many indoor and controlled-environment industrial applications.
• RoHS Compliant:  Meets lead-free manufacturing requirements for environmentally conscious product lines.

Why Choose NG80960JF33?

The NG80960JF33 positions itself as a compact, commercial-grade embedded processor combining the Intel i960 32-bit core at 33 MHz with DRAM controller capability and 3.3 V I/O in a PQFP132 surface-mount package. Its specification set is well suited to designers seeking a straightforward, RoHS-compliant MPU for embedded control, communications, and instrumentation designs that operate within a 0 °C to 100 °C range.

Choose the NG80960JF33 when your design requires a single 32-bit RISC core with external memory support and standard I/O voltage in a manufacturable surface-mount package—providing a clear path for board-level integration and procurement in commercial embedded products.

Request a quote or submit a specification inquiry to begin procurement for the NG80960JF33 and streamline evaluation and sourcing for your embedded design projects.
