NG80960JD3V40

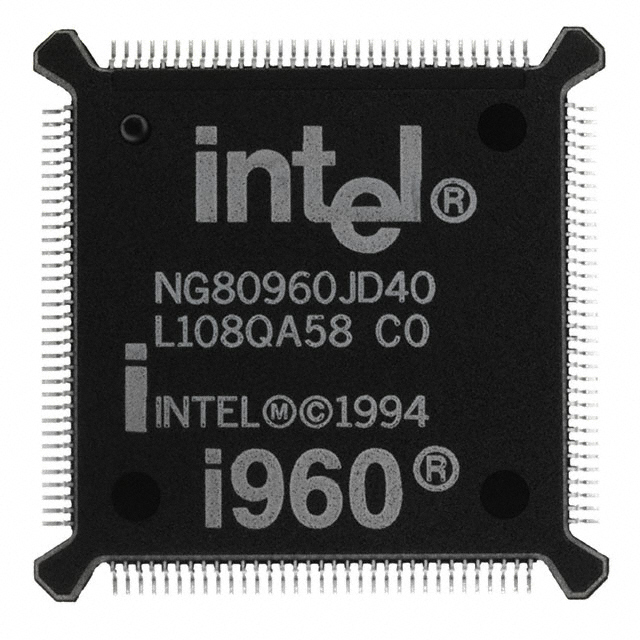

The NG80960JD3V40 is an Intel i960-series embedded microprocessor in a 132-lead plastic QFP package. It features a single 32-bit core running at a 40 MHz clock rate and is targeted at general embedded systems requiring on-chip integration and deterministic instruction execution.

Designed for commercial-grade embedded applications, the device combines a 3.3 V I/O supply, DRAM controller support, on-chip memory resources and cache options to simplify system design and reduce external memory bandwidth requirements.

Key Features

• Core Architecture  Single 32-bit i960 core with one-instruction-per-clock execution as defined for the i960 J-series processors.
• Clock and Performance  Core frequency indicated as 40 MHz for this part number (NG80960JD3V40).
• Instruction and Data Cache (JD variant)  Programmable instruction cache (4 KB for JF/JD variants) and a direct-mapped data cache (2 KB for JF/JD variants) to improve code and data throughput.
• On-Chip RAM and Stack Frame Cache  Includes on-chip data RAM (1 KB) for critical variable storage and an on-chip stack frame cache that can save register sets automatically on call/return.
• Memory and Bus  High-bandwidth burst bus with 32-bit multiplexed address/data, selectable 8/16/32-bit bus widths and support for unaligned accesses and both big- and little-endian byte ordering.
• I/O and Voltage  3.3 V I/O supply with 5 V tolerant inputs and TTL-compatible outputs.
• Timers and Interrupts  Two on-chip independent 32-bit timers with prescaling and a high-speed interrupt controller offering multiple programmable priorities and maskable pins.
• Power and Temperature Range  Commercial-grade device with operating temperature range 0 °C to 100 °C and a halt mode for low-power operation.
• Package and Mounting  132-lead Plastic Quad Flat Pack (132-QFP), surface-mount mounting type.
• Compliance  RoHS compliant.

Typical Applications

• Embedded Control Systems  Single-core 32-bit processing and on-chip memory resources suit machine control, sequence management and real-time embedded controllers.
• Industrial Automation  Timer resources, interrupt priorities and DRAM controller support make the device applicable for PLCs, motion control and factory automation modules.
• Communications and Networking Equipment  High-bandwidth burst bus and selectable bus widths enable packet handling, protocol offload and peripheral interfacing in embedded communications gear.
• Consumer and Commercial Electronics  Compact 132-QFP surface-mount package and commercial temperature rating fit a range of consumer and commercial embedded products requiring moderate performance and integration.

Unique Advantages

• Deterministic Instruction Throughput: One-instruction-per-clock execution reduces instruction latency and simplifies performance budgeting for real-time designs.
• Integrated Cache and RAM: On-chip instruction/data caches and 1 KB data RAM reduce external memory dependence and improve effective program performance.
• Flexible Bus Configuration: Selectable 8/16/32-bit bus widths and a 32-bit multiplexed address/data bus support multiple memory and peripheral topologies.
• 3.3 V Operation with 5 V Tolerance: 3.3 V I/O with 5 V tolerant inputs eases interfacing with legacy TTL signals while maintaining modern supply levels.
• Compact Surface-Mount Package: 132-QFP package balances pin count and PCB footprint for space-constrained embedded designs.
• Commercial-Grade Robustness: Specified operating range of 0 °C to 100 °C and halt mode for reduced power help maintain reliable operation in typical commercial environments.

Why Choose NG80960JD3V40?

The NG80960JD3V40 delivers a focused embedded processing solution: a single 32-bit i960 core with one-instruction-per-clock execution, on-chip caches and RAM, and flexible bus options in a compact 132-QFP surface-mount package. These capabilities are suited to designers needing a balanced combination of performance, memory integration and predictable execution in commercial embedded systems.

This part is appropriate for engineers building industrial control, communications, and general embedded devices who want the integration of cache, on-chip RAM, timers and interrupt handling while maintaining a standard 3.3 V I/O environment and RoHS compliance.

Request a quote or submit a quote to check availability, lead times and pricing for NG80960JD3V40. Our team can provide ordering details and support to help integrate this i960 processor into your design.
