OMAP5910JGDY1R

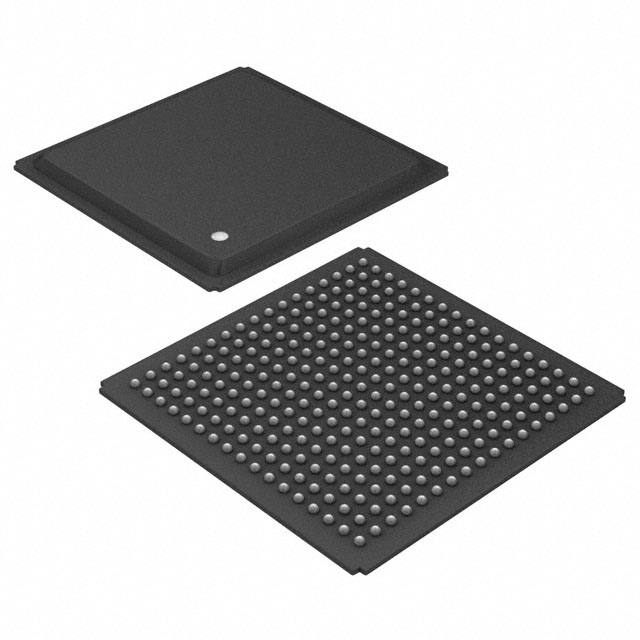

The OMAP5910JGDY1R is a single-core ARM9TDMI microprocessor running at 150 MHz in a 289-BGA (19×19) package. Designed for industrial embedded applications, it integrates memory controllers, multiple high-speed interfaces and hardware security capabilities to support connected, interface-driven systems.

With SDRAM memory control, dual USB 2.0 ports, 10/100 Mbps Ethernet and display/keypad controllers, this device targets embedded designs that require deterministic processing, peripheral integration and operation across an extended industrial temperature range.

Key Features

• Core & Performance  ARM9TDMI 32-bit core operating at 150 MHz, providing predictable processing for control and interface tasks.
• Co-processors  Integrated signal-processing and system-control co-processors (C55x and CP15) to offload specialized tasks.
• Memory & Controllers  SDRAM controller to interface with external memory for application and data storage.
• Interfaces  Dual USB 2.0 ports and a 10/100 Mbps Ethernet MAC provide wired connectivity; additional on-chip display and keypad controllers simplify user-interface design.
• Peripheral Support  1-Wire/HDQ interface support for low-pin-count sensor and accessory connections.
• Security  Built-in cryptography and a random number generator to support secure functions and device authentication.
• Package & Mounting  289-ball BGA (19×19) surface-mount package for compact board-level integration.
• Industrial Grade & Temperature Range  Rated for industrial operation with an operating temperature range of −40°C to 85°C.
• Compliance  RoHS-compliant material status for environmental regulatory alignment.

Typical Applications

• Industrial Embedded Control  Use in control and monitoring systems where industrial temperature range and deterministic processing are required.
• Networking and Communication Equipment  Integration in devices that leverage on-board 10/100 Mbps Ethernet and USB 2.0 connectivity for data transport and peripheral attachment.
• Human-Machine Interfaces (HMI)  Control of keypads and LCDs for operator interfaces, supported by the processor’s display and keypad controllers.
• Secure Connected Devices  Embedded systems requiring hardware cryptography and a random number generator for secure communications and device authentication.

Unique Advantages

• Integrated Connectivity: On-chip USB 2.0 (×2) and 10/100 Ethernet reduce external components and simplify board-level design.
• Hardware Security Primitives: Cryptography and a random number generator enable secure features without relying solely on external security ICs.
• Industrial Reliability: −40°C to 85°C operating range and industrial-grade classification support deployment in demanding environments.
• Compact Ball-Grid Package: 289-BGA (19×19) package balances high I/O density with a small PCB footprint for space-constrained applications.
• Dedicated Co-processing: C55x signal-processing and CP15 system-control resources help offload specialized workloads from the main ARM9TDMI core.
• Memory Interfacing Simplified: On-chip SDRAM controller streamlines connection to external system memory for application and buffer needs.

Why Choose OMAP5910JGDY1R?

The OMAP5910JGDY1R combines a 150 MHz ARM9TDMI core with a range of integrated interfaces and hardware security features in a compact 289-BGA package for industrial embedded designs. Its mix of USB, Ethernet, display/keypad support and SDRAM control makes it well suited to connected control, HMI and secure embedded applications that demand predictable performance and a reduced bill of materials.

Backed by Texas Instruments documentation and series-level technical resources, the OMAP5910JGDY1R is positioned for designers seeking an integrated, industrial-grade microprocessor platform with on-chip peripherals and security primitives to accelerate time to market.

Request a quote or submit a pricing inquiry for OMAP5910JGDY1R to receive availability and ordering information tailored to your project requirements.
