OMAP5910JGZG2

The OMAP5910JGZG2 is an ARM9TDMI-based, 32-bit microprocessor core running at 150 MHz, designed for embedded and industrial applications. It integrates processing, memory control and a range of peripheral interfaces to support compact, production-ready system designs.

Targeted at embedded systems and industrial equipment, the device combines a single ARM9 core with signal-processing and system-control coprocessors, multiple I/O interfaces, and industrial-grade temperature capability for reliable operation in demanding environments.

Key Features

• Core ARM9TDMI single 32-bit core at 150 MHz with integrated coprocessors for signal processing (C55x) and system control (CP15).
• Memory and Display Integrated SDRAM controller with display interface controllers for keypad and LCD support to simplify user-interface implementations.
• Connectivity Built-in 10/100 Mbps Ethernet (1) and two USB 2.0 ports, plus an additional 1-Wire/HDQ interface for peripheral and networked device connectivity.
• Security On-chip cryptography and a random number generator provide hardware-level security primitives for secure embedded applications.

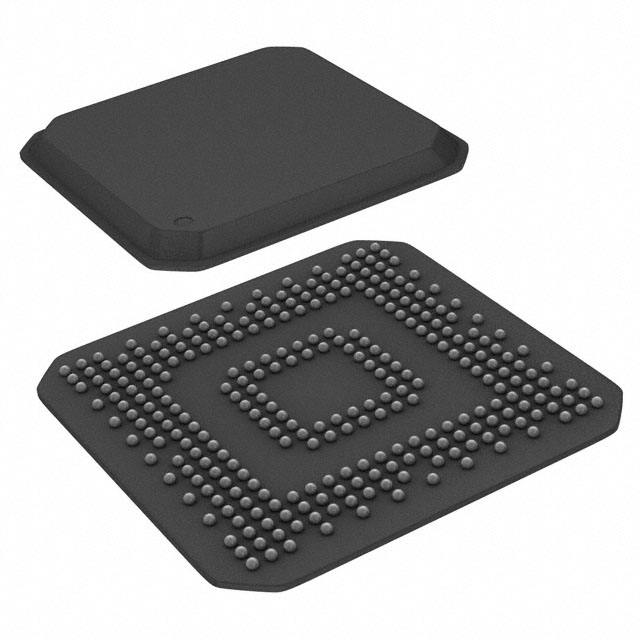

• Package and Mounting Supplied in a 289-pin TFBGA package (289-BGA MICROSTAR 12×12) for surface-mount assembly in compact designs.
• Industrial Grade and Environmental Rated for industrial operation with an operating temperature range of −40 °C to 85 °C and RoHS compliance for regulatory and manufacturing requirements.

Typical Applications

• Embedded Control Systems — Provides processing, memory control and peripheral interfaces for standalone embedded controllers in industrial equipment.
• Human-Machine Interfaces (HMI) — Integrated keypad and LCD controllers support operator panels and local user interfaces.
• Networking and Connectivity Devices — On-chip 10/100 Mbps Ethernet and dual USB 2.0 ports enable networked peripherals and host/device connectivity.
• Secure Embedded Devices — On-chip cryptography and random number generation support devices that require hardware security functions.

Unique Advantages

• Integrated peripheral set — Ethernet, USB, keypad and LCD interfaces reduce external component count and simplify board design.
• Hardware security primitives — Built-in cryptography and RNG enable secure boot, encryption or secure communications implementations without separate security ICs.
• Industrial temperature capability — −40 °C to 85 °C rating supports deployment in harsh or temperature-variable environments.
• Compact production-friendly package — 289-TFBGA (12×12) surface-mount package is suited to high-density, manufacturable designs.
• Standards-aligned connectivity — 10/100 Ethernet and USB 2.0 support common interface standards for interoperability with networked and USB peripherals.

Why Choose OMAP5910JGZG2?

OMAP5910JGZG2 is positioned for embedded and industrial designs that need a compact, integrated microprocessor with general-purpose ARM9 processing, dedicated signal and system-control coprocessors, and a strong set of interfaces. Its industrial temperature rating and RoHS compliance make it suitable for production deployments requiring robustness and regulatory adherence.

Backed by Texas Instruments documentation and standard warranty terms, the OMAP5910JGZG2 offers a balance of integration, connectivity and security primitives to reduce BOM complexity and accelerate development for industrial and embedded product lines.

Request a quote or submit an inquiry to purchase OMAP5910JGZG2 and include your quantity and delivery requirements for a prompt response.
