OMAP5910JZVL2

The OMAP5910JZVL2 is a single‑core ARM9TDMI microprocessor running at 150 MHz, designed for embedded and industrial applications. It combines a 32‑bit ARM9 core with signal‑processing and system control coprocessors, integrated memory interfaces, and multiple peripheral connectivity options to support compact, connected embedded designs.

Key Features

• Core & Performance ARM9TDMI 32‑bit processor, single core at 150 MHz optimized for general embedded processing tasks.
• Coprocessors Dedicated signal‑processing coprocessor (C55x) and system control coprocessor (CP15) for offloading specialized workloads.
• Memory Interfaces SDRAM controller supported via EMIF; IMIF provides access to 192 KB of on‑chip SRAM and 16‑bit‑wide access to standard SDRAM memories.
• Display & User I/O Integrated display interface controllers for keypad and LCD panels, with LCD controller support for monochrome (STN) and color (STN or TFT) panels.
• Connectivity Integrated 10/100 Mbps Ethernet and two USB 2.0 interfaces plus additional 1‑Wire/HDQ support for simple peripheral connections.
• Security On‑chip cryptography features and a hardware random number generator to support secure functions.

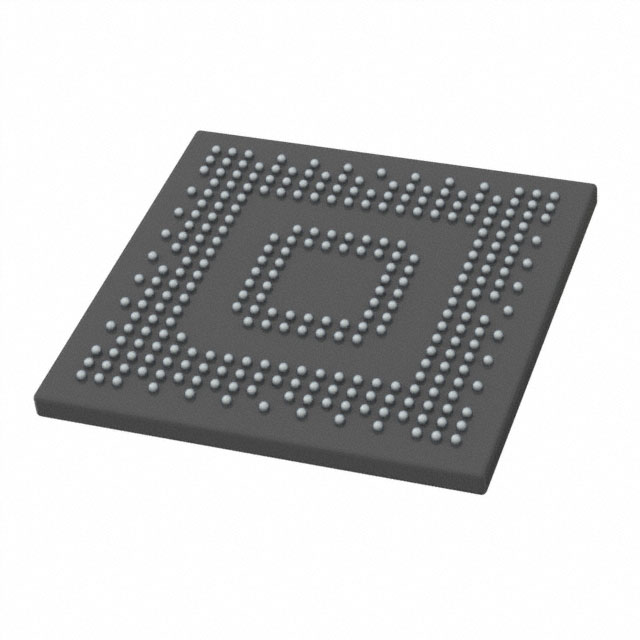

• Package & Mounting 289‑ball NFBGA (12 × 12) surface‑mount package for compact board integration.
• Industrial Temperature Range Rated for operation from −40°C to 85°C, suitable for industrial environments.
• Environmental Compliance RoHS compliant.

Typical Applications

• Industrial Control: Use the ARM9 core, SDRAM interface and industrial temperature rating for embedded controllers and machine interface units.
• Human‑Machine Interfaces: Integrated LCD and keypad controllers support HMI panels and operator displays in compact designs.
• Connected Embedded Devices: Built‑in 10/100 Ethernet and dual USB 2.0 interfaces enable networked sensors, gateways, and peripheral connectivity.

Unique Advantages

• Integrated Processing and Coprocessing: ARM9 core with C55x and CP15 coprocessors reduces external processing requirements for signal and system control tasks.
• Memory Flexibility: EMIF and IMIF support provide direct access to 16‑bit SDRAM and 192 KB on‑chip SRAM, simplifying memory subsystem design.
• Compact Surface‑Mount Package: 289‑ball NFBGA (12×12) package enables high‑density board layouts for space‑constrained applications.
• Industrial Reliability: −40°C to 85°C operating range and RoHS compliance make the device suitable for industrial deployments.
• Integrated Connectivity: Ethernet and dual USB 2.0 interfaces reduce bill‑of‑materials and accelerate development of connected products.
• Built‑in Security Primitives: Cryptography support and a hardware RNG enable basic secure functions within embedded systems.

Why Choose OMAP5910JZVL2?

The OMAP5910JZVL2 delivers a balanced combination of processing, memory interface capability and peripheral integration in a compact industrial‑grade package. Its ARM9 core paired with dedicated coprocessors and integrated EMIF/IMIF memory access is well suited to embedded designs that require on‑board signal processing, display control and wired connectivity.

This component is a practical choice for engineers building industrial controllers, HMIs and networked embedded devices that need a compact footprint, standard connectivity options, and rugged operating temperature support.

Request a quote or submit a pricing inquiry to receive availability and ordering information for OMAP5910JZVL2.
