R8A774E0HA01BN#G0

The R8A774E0HA01BN#G0 is an RZ/G2E-series microprocessor IC featuring ARM® Cortex®-A53 and ARM® Cortex®-A57 cores in an 8-core, 64-bit configuration with operating points at 1.2 GHz and 1.5 GHz. Designed for embedded applications, this industrial-qualified MPU integrates multiple high-speed interfaces and hardware security functions for robust system designs.

Its combination of multi-core processing, LPDDR4 memory support and extensive I/O makes it suited to industrial embedded systems that require connectivity, storage and secure operation across a wide temperature range.

Key Features

• Core  ARM® Cortex®-A53 and ARM® Cortex®-A57 processing cores in an 8-core, 64-bit configuration running at 1.2 GHz / 1.5 GHz.
• Memory  Integrated LPDDR4 memory controller support for modern high-performance system memory.
• Display  DU display interface controller included for display and HMI integration.
• Networking  Dual Ethernet capability with one 10/100 Mbps port and one 100/1000 Mbps port for flexible network connectivity.
• Storage  Single SATA interface (SATA 16 Gbps) for direct connection to high-speed storage devices.
• USB and Peripheral I/O  Four USB ports plus CAN support to accommodate a variety of peripheral and fieldbus connections.
• Security  On-chip security features including AES, ARM TrustZone, Hash, RSA, Secure Boot and TRNG to support secure boot and cryptographic functions.

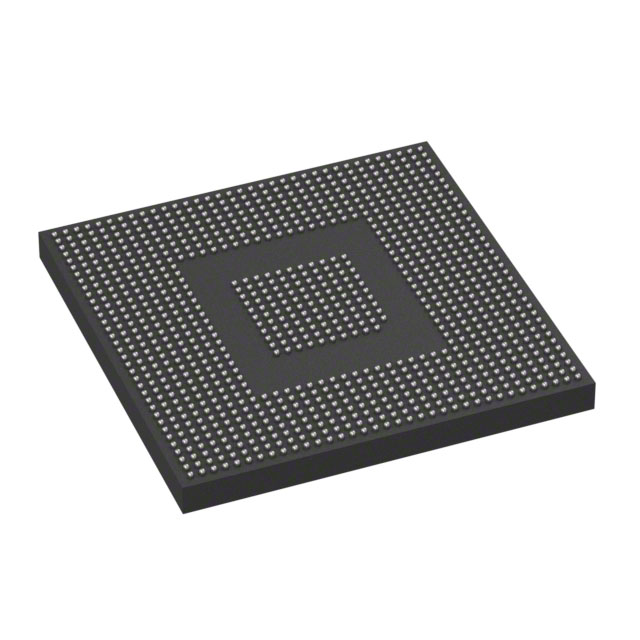

• Package & Mounting  1022-FPBGA package (1022-BGA case) in a surface-mount form factor to fit compact embedded PCB designs.
• Qualification & Environmental  Industrial qualification and RoHS compliance with an operating temperature range of −40 °C to 85 °C.
• Graphics Acceleration  No dedicated graphics acceleration.

Typical Applications

• Industrial Control & Automation  Industrial-qualified design and wide operating temperature make it suitable for embedded controllers, PLCs and factory automation systems that require reliable compute and field connectivity.
• Networked Gateways & Routers  Dual Ethernet ports and multi-core processing enable use in gateways, edge routers and protocol converters that need both performance and network flexibility.
• HMI and Display Systems  The DU display controller and multi-core CPU support human‑machine interfaces and local visualization subsystems in embedded products.
• Embedded Storage & Data Logging  SATA 16 Gbps plus multiple USB ports provide the I/O needed for onboard storage, data logging and local archival systems.

Unique Advantages

• Multi-core 64-bit processing: Eight 64-bit cores (Cortex-A53/A57) provide scalable compute capacity for parallel tasks and mixed workloads.
• Broad connectivity set: Ethernet (10/100 and 100/1000), SATA, USB and CAN interfaces reduce the need for external bridge components and simplify BOM.
• On-chip security primitives: AES, ARM TrustZone, Hash, RSA, Secure Boot and TRNG deliver integrated capabilities to implement secure boot and cryptographic operations.
• Industrial-ready operation: Industrial qualification and −40 °C to 85 °C operating range support deployment in demanding embedded environments.
• Compact BGA package: 1022-FPBGA surface-mount package enables dense PCB layouts and high‑pin connectivity in a compact footprint.
• RoHS compliant: Meets RoHS environmental requirements for regulated markets and OEM assemblies.

Why Choose R8A774E0HA01BN#G0?

The R8A774E0HA01BN#G0 positions itself as a versatile, industrial-qualified MPU with multi-core 64-bit processing, comprehensive I/O and integrated security features. It is well suited to embedded designs that require a combination of network connectivity, storage options and secure operation across a wide temperature range.

Choose this part for projects that demand scalable processing performance, integrated peripheral interfaces and industrial-grade reliability—enabling robust, compact system designs with fewer external components.

Request a quote or submit an inquiry to receive pricing and availability for the R8A774E0HA01BN#G0. Include your quantity and timeframe to streamline the response.
