R8A77800BDBGV

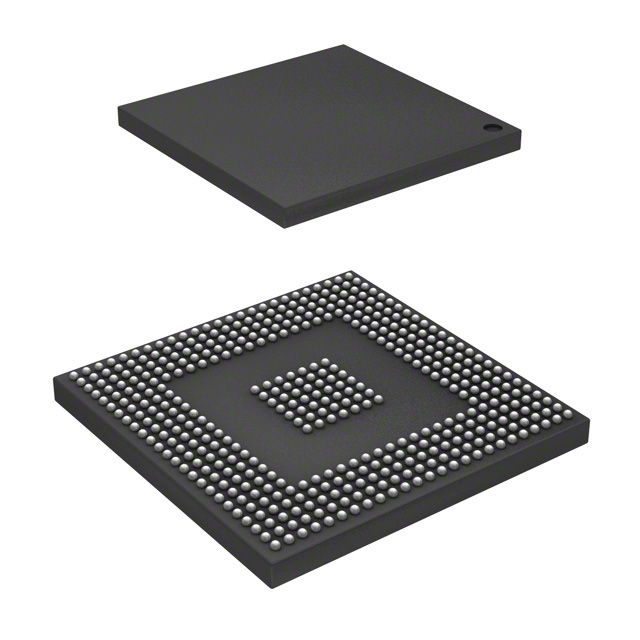

The R8A77800BDBGV is a Renesas SH-4A microprocessor IC running at 400 MHz, provided in a 449-FBGA (21×21) package. It is part of the R8A77800B series and is targeted at consumer-grade embedded applications.

This single-core, 32-bit SH-4A device offers a compact surface-mount package and defined operating parameters that support integration into consumer embedded designs requiring a standalone processor solution.

Key Features

• Core Single SH-4A 32-bit core operating at 400 MHz for single-core embedded processing.
• Package 449-FBGA (21×21) package case with surface-mount mounting type for compact board-level integration.
• Qualification Consumer-grade qualification suitable for consumer embedded products.
• Operating Temperature Specified range −20°C to 75°C for consumer-environment deployments.
• Graphics Acceleration No integrated graphics acceleration.
• Compliance RoHS compliant for lead-free environmental requirements.
• Manufacturer & Series Supplied by Renesas as part of the R8A77800B series.

Typical Applications

• Consumer embedded devices Use as the primary processor for control and general-purpose processing in consumer products.
• Compact PCB designs 449-FBGA (21×21) packaging supports dense board layouts and modern surface-mount assembly.
• Single-core processing tasks Suited to embedded workloads that require a defined 400 MHz SH-4A core.

Unique Advantages

• Defined single-core performance: 400 MHz SH-4A core provides a clear processing target for system architects.
• Compact FBGA package: 449-FBGA (21×21) reduces PCB footprint while supporting automated assembly.
• Surface-mount compatibility: Designed for standard SMT manufacturing processes to streamline production.
• Consumer temperature range: −20°C to 75°C aligns with typical consumer product operating conditions.
• RoHS compliant: Meets lead-free requirements for regulated markets.
• Part of a Renesas series: Consistency within the R8A77800B series supports predictable selection and sourcing.

Why Choose R8A77800BDBGV?

R8A77800BDBGV is positioned for designers seeking a single-core SH-4A microprocessor running at 400 MHz in a compact 449-FBGA (21×21) surface-mount package. Its consumer-grade qualification, RoHS compliance, and defined operating temperature make it suitable for consumer embedded designs that require a clear, verifiable processor specification.

As a Renesas part within the R8A77800B series, it offers predictable component characteristics and sourcing from an established manufacturer, helping teams integrate a known microprocessor element into their consumer-focused products.

Request a quote or contact sales to discuss pricing, availability, and lead times for R8A77800BDBGV.
