R8A774E1HA01BN#G0

The R8A774E1HA01BN#G0 is a microprocessor-class IC from Renesas, built around ARM® Cortex®-A53 and ARM® Cortex®-A57 processor cores with an additional ARM® Cortex®-R7 co-processor. It targets embedded and industrial applications that require multicore 64-bit processing, integrated I/O, and hardware security features.

Key value propositions include multicore ARM processing at 1.2 GHz, LPDDR4 memory support, a broad set of peripheral interfaces (display, camera, Ethernet, SATA, USB), and industrial temperature qualification for deployment in demanding environments.

Key Features

• CPU Subsystem — ARM® Cortex®-A53 and ARM® Cortex®-A57 cores listed with 1.2 GHz operating speed; specification indicates 4, 4 Core, 64‑Bit configuration.
• Co-processor/DSP — ARM® Cortex®-R7 co-processor for offloaded real-time or system tasks.
• Memory Support — Integrated LPDDR4 memory controller support for modern high-bandwidth DRAM.
• Display and Camera Interfaces — Display interface controllers including LVDS and MIPI‑CSI for display panels and camera input connectivity.
• Storage and Networking — Single Gigabit-class Ethernet interface (10/100 Mbps), and one SATA interface specified at SATA 16Gbps for high-speed storage connectivity.
• USB Connectivity — Multiple USB ports: USB 2.0 OTG (2) and USB 3.0 (1) for peripheral and host connectivity.
• Security Features — Hardware security primitives including AES, ARM TrustZone (ARM TZ), Hash, RSA, Secure Boot, and TRNG to enable secure boot and cryptographic functions.
• Graphics Acceleration — Graphics acceleration is included to assist with display rendering tasks.

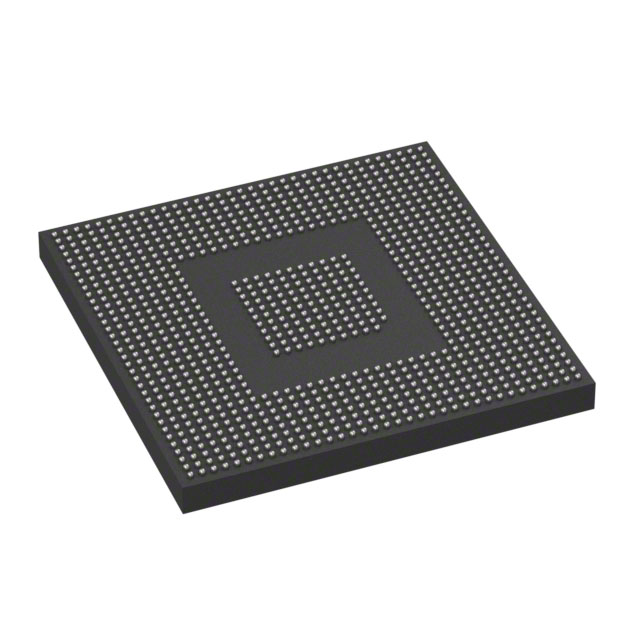

• Package and Mounting — 1022‑BFBGA / 1022‑FCBGA package (supplier device package: 1022‑FCBGA, 29×29 mm) designed for surface-mount assembly.
• Industrial Qualification & Temperature — Industrial qualification with operating temperature range of −40 °C to 85 °C.
• Compliance — RoHS compliant.

Typical Applications

• Industrial Control — Multicore ARM processing, industrial temperature range, and robust I/O make this device suitable for embedded controllers and automation systems.
• Human-Machine Interfaces (HMI) — LVDS display support and graphics acceleration enable responsive display control and rich UIs in operator panels.
• Embedded Vision and Camera Systems — MIPI‑CSI input combined with graphics acceleration supports camera interfacing and image processing pipelines.
• Edge Storage and Gateway Appliances — Integrated SATA and Ethernet, plus multiple USB ports, allow deployment in networked gateways and local storage appliances.

Unique Advantages

• Multicore 64‑bit Architecture: ARM® Cortex®‑A53 and A57 cores provide a balanced multicore platform for compute-intensive embedded tasks.
• Dedicated Real-time Co‑processor: ARM® Cortex®‑R7 enables separation of real-time processing from application workloads.
• Comprehensive Security Suite: On-chip AES, ARM TrustZone, Hash, RSA, Secure Boot, and TRNG support secure system deployment and protected boot flows.
• Flexible Display and Camera I/O: LVDS and MIPI‑CSI controllers plus graphics acceleration simplify implementation of displays and camera interfaces.
• High-speed Storage Interface: SATA 16Gbps and USB 3.0 provide options for high-throughput local storage and peripheral connectivity.
• Industrial-grade Operation: Qualified for industrial use with an operating range from −40 °C to 85 °C and surface-mount 1022‑FCBGA package for compact system designs.

Why Choose R8A774E1HA01BN#G0?

The R8A774E1HA01BN#G0 positions itself as a highly integrated microprocessor solution combining multicore ARM processing, a real‑time co‑processor, and a broad set of I/O and security features. Its LPDDR4 memory support, display/camera interfaces, high-speed storage and USB connectivity, and industrial temperature qualification make it suitable for embedded and industrial designs that require compute, connectivity, and hardware security in a single package.

As a Renesas device available in a 1022‑FCBGA (29×29) surface-mount package, it is intended for developers and engineers building scalable, secure embedded systems that demand reliable operation across a wide temperature range.

Request a quote or submit an inquiry to discuss pricing, availability, and lead times for R8A774E1HA01BN#G0.
