R8A77800BNBGV

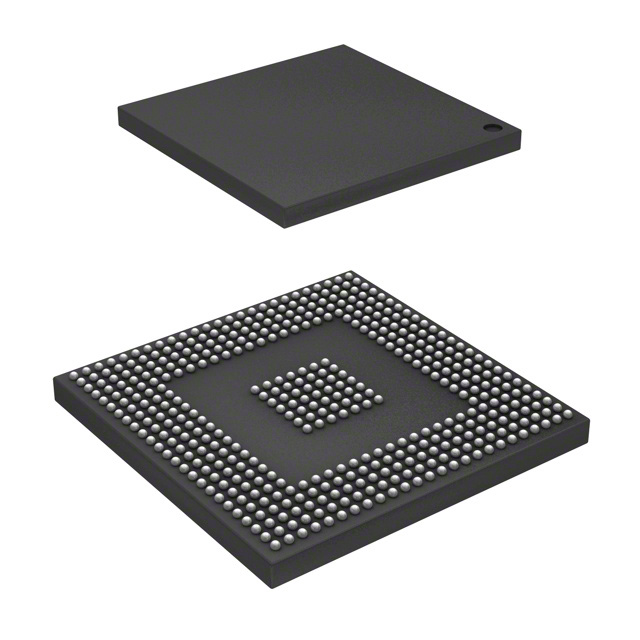

The R8A77800BNBGV is a Renesas SH-4A microprocessor IC operating at 400 MHz in a 449-FBGA (21×21) package. Designed for embedded applications, this consumer-qualified MPU provides a defined SH-4A core implementation in a compact surface-mount package suitable for board-level integration.

Key attributes include a 400 MHz core frequency, surface-mount 449-FBGA packaging, RoHS compliance and an operating temperature range of −20 °C to 75 °C, making it appropriate for a range of consumer embedded designs that require this processor architecture and speed.

Key Features

• Core Architecture SH-4A core processor as specified for the SH7780 family, providing the defined instruction set and implementation associated with this series.
• Clock Speed 400 MHz operating frequency for the processor core, useful for timing and performance planning in embedded systems.
• Package 449-FBGA (21×21) supplier device package offering a compact, ball-grid array footprint for dense board layouts.
• Mounting Type Surface mount package designed for standard SMT assembly processes.
• Operating Temperature Rated for −20 °C to 75 °C, suitable for consumer-environment operating conditions.
• Qualification Consumer qualification indicating intended use in consumer-grade products.
• Graphics Acceleration No integrated graphics acceleration, enabling straightforward evaluation of graphics requirements at the system level.
• Environmental Compliance RoHS compliant to meet common regulatory requirements for lead-free designs.

Typical Applications

• Embedded Consumer Devices Use as the primary MPU in consumer-oriented embedded systems that require the SH-4A core and 400 MHz operation.
• Board-Level Integration Compact 449-FBGA package supports dense PCB designs where surface-mount BGAs are preferred for space-constrained layouts.
• Prototype and Product Development Suitable for development of consumer electronics that target the SH7780 series performance and packaging.

Unique Advantages

• Defined SH-4A Processing Provides the SH-4A core architecture at 400 MHz for designs that require this specific processor family.
• Compact BGA Footprint 449-FBGA (21×21) package enables dense, space-efficient PCB layouts while supporting surface-mount assembly.
• RoHS Compliant Meets lead-free regulatory requirements for consumer product designs.
• Consumer Qualification Specifically qualified for consumer applications, aligning with product class requirements in that market segment.
• Wide Supply Compatibility Surface-mount 449-FBGA form factor simplifies integration into standard SMT manufacturing flows.
• Operational Temperature Range Rated from −20 °C to 75 °C to match common consumer-environment use cases.

Why Choose R8A77800BNBGV?

The R8A77800BNBGV delivers the SH-4A core at a 400 MHz clock rate in a compact 449-FBGA surface-mount package, making it a clear fit for designers targeting consumer embedded systems that require this architecture and footprint. Its RoHS compliance and defined operating temperature range support regulatory and environmental planning for consumer products.

From a procurement and design standpoint, this Renesas SH7780-series part is suited to projects where the combination of SH-4A processing, BGA packaging, and consumer qualification align with product requirements and manufacturing processes.

Request a quote or submit an inquiry to obtain pricing and availability for the R8A77800BNBGV.
