R9A06G033NGBG#AC1

The R9A06G033NGBG#AC1 is a dual-core microprocessor IC from the RZ/N1S series featuring ARM® Cortex®-A7 and ARM® Cortex®-M3 cores in a 32-bit implementation. The product data lists operating speeds of 125 MHz and 500 MHz and provides a combination of processing cores, memory controller support and peripheral interfaces for embedded system designs.

Designed for industrial applications, this surface-mount 324-LFBGA package supports industry-standard memory and connectivity options while including on-chip security primitives and an extended operating temperature range for robust deployment.

Key Features

• Core Architecture  Dual-core design with ARM® Cortex®-A7 and ARM® Cortex®-M3 32-bit processors, providing a heterogeneous processing option within one device.
• Clock / Performance  Listed operating speeds include 125 MHz and 500 MHz as indicated in the product data.
• Memory Support  Integrated controllers supporting DDR2 and DDR3 memories for system memory interfacing.
• Ethernet  Integrated Ethernet support at 10/100/1000 Mbps for wired network connectivity.
• USB  Two USB 2.0 ports are specified for host/device peripheral connectivity.
• Display Interface  LCD display interface controller included for embedded display integration.
• Security Features  On-chip cryptographic and hashing support including AES, ARC4, DES, 3DES, MD5, SHA-1, SHA-224 and SHA-256.

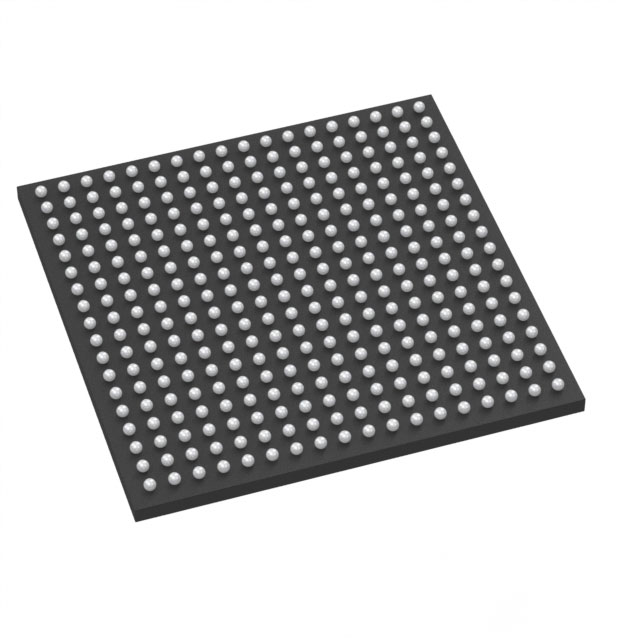

• Package & Mounting  Supplied in a 324-LFBGA (15 × 15 mm) surface-mount package for compact board integration.
• Qualification & Environmental  Industrial qualification with RoHS compliant status and an operating temperature range of -40 °C to 85 °C.
• Graphics  No graphics acceleration is provided on this device, per product data.

Unique Advantages

• Heterogeneous dual-core processing: ARM® Cortex®-A7 plus Cortex®-M3 cores enable partitioning of high-level application tasks and real-time control within a single device.
• Broad memory compatibility: DDR2 and DDR3 controller support allows flexibility in selecting system memory for performance or cost trade-offs.
• Integrated wired networking: 10/100/1000 Mbps Ethernet support provides high-speed LAN connectivity without separate PHY solutions when used with compatible external components.
• Comprehensive security primitives: Built-in AES, DES/3DES, ARC4 and multiple hashing algorithms reduce the need for external crypto accelerators for many security functions.
• Industrial temperature rating: Specified -40 °C to 85 °C operation suits designs targeting industrial environments.
• Compact LFBGA footprint: The 324-LFBGA (15×15) package supports dense board layouts while maintaining surface-mount manufacturability.

Why Choose R9A06G033NGBG#AC1?

The R9A06G033NGBG#AC1 positions itself as a flexible, industrial-grade microprocessor option combining ARM® Cortex®-A7 and Cortex®-M3 cores, multiple high-speed interfaces and on-chip security primitives. Its support for DDR2/DDR3 memory, Gigabit Ethernet and dual USB 2.0 ports makes it suitable for embedded designs that require both application processing and real-time control capabilities.

With a surface-mount 324-LFBGA package, RoHS compliance and an extended operating temperature range, this device is appropriate for engineers seeking a compact, integrated MPU platform for industrial embedded systems where long-term robustness and a comprehensive peripheral set are important.

Request a quote or submit an inquiry to receive pricing and availability details for R9A06G033NGBG#AC1.
