SPC5606BK0CLU6

The SPC5606BK0CLU6 is a 32-bit single-core microcontroller based on the e200z0h core, offering 1 MB of on-chip flash and a 64 MHz core clock. Designed for embedded applications, it combines a compact 176-LQFP surface-mount package with essential mixed-signal and system-level features for industrial designs.

With 3.3 V I/O, an integrated ADC interface and an operating temperature range of -40 °C to 85 °C, this device targets embedded control and data acquisition roles where code density, on-board storage and standard voltage interfacing matter.

Key Features

• Core — e200z0h 32-bit processor core running at 64 MHz for deterministic embedded processing.
• Memory — 1 MB (1M x 8) on-chip flash for application code and local data storage.
• I/O Voltage and Interfaces — 3.3 V I/O level and integrated ADC interface for direct analog signal acquisition.

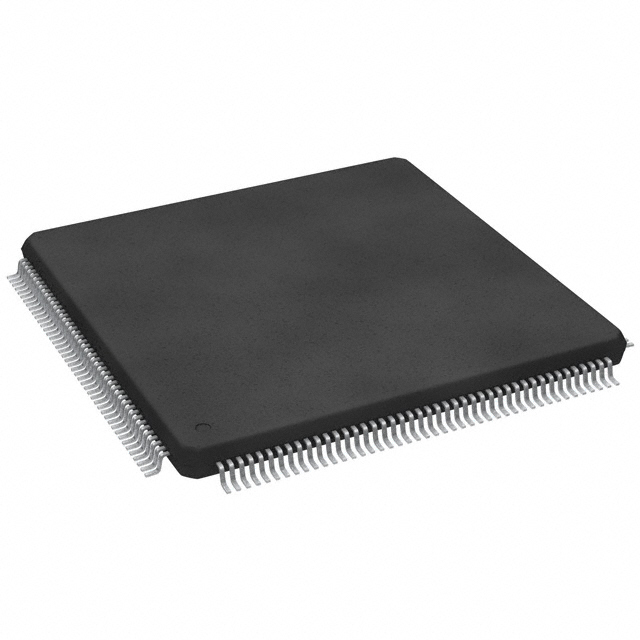

• Package and Mounting — 176-LQFP (24 × 24 mm) surface-mount package well suited for PCB-based embedded assemblies.
• Operating Range — Rated for operation from -40 °C to 85 °C, matching common industrial temperature needs.
• System Characteristics — Single-core, 32-bit architecture with no graphics acceleration, focused on control and signal-processing tasks.
• Compliance — RoHS compliant.

Typical Applications

• Embedded control — Compact 32-bit MCU for general embedded control tasks and firmware-driven devices.
• Industrial control — Industrial-grade temperature range and industrial qualification support deployment in factory and equipment control systems.
• Sensor acquisition — Integrated ADC interface and on-chip flash suitable for sensor data capture and local processing.
• On-board code and data storage — 1 MB flash enables local firmware storage and application-level logging or buffering.

Unique Advantages

• Integrated flash memory: 1 MB on-chip flash reduces the need for external program memory and simplifies BOM.
• Industrial temperature capability: Specified -40 °C to 85 °C for reliable operation in typical industrial environments.
• Standard 3.3 V I/O: Common voltage domain support eases interfacing with contemporary sensors and peripherals.
• Compact SMT package: 176-LQFP (24 × 24 mm) provides a balance of pin count and PCB footprint for complex embedded designs.
• RoHS compliant: Conforms to RoHS requirements for environmentally conscious design and manufacturing.

Why Choose SPC5606BK0CLU6?

The SPC5606BK0CLU6 positions itself as a focused embedded microcontroller solution that combines a proven 32-bit e200z0h core with substantial on-chip flash and essential analog interfacing. Its 64 MHz performance, 3.3 V I/O and industrial operating range make it appropriate for designs that require local code storage, sensor interfacing and reliable operation across typical industrial temperatures.

Backed by NXP Semiconductors, this MCU is suited to customers seeking a compact, surface-mount 176-LQFP device with integrated flash and ADC capability for embedded and industrial applications where predictable processing and on-board storage are priorities.

Request a quote or submit an inquiry to get pricing, availability and lifecycle information for the SPC5606BK0CLU6.
