STM32MP153DAA1

The STM32MP153DAA1 is an STM32MP1-series microprocessor device featuring ARM® Cortex®-A7 cores and an integrated ARM® Cortex®-M4 coprocessor. It combines application-class processing and real-time control peripherals to address embedded and consumer market segments that require on-chip memory controller support, display interfaces, and a range of communication ports.

Designed for systems requiring integrated display, connectivity and security features, the device provides DDR3/DDR3L/LPDDR2/LPDDR3 memory controller support, multiple USB and Ethernet interfaces, CAN connectivity and ARM TrustZone security support in a 448-LFBGA (18×18) package with an operating range from -20 °C to 105 °C.

Key Features

• Processor Cores  Dual ARM® Cortex®-A7 cores (32-bit). The specifications list a core speed of 209 MHz; the product name also references 800 MHz.
• Real-time Coprocessor  Integrated ARM® Cortex®-M4 coprocessor for deterministic control and offloading of real-time tasks from the application cores.
• Memory Support  On-chip controllers for DDR3, DDR3L, LPDDR2 and LPDDR3 memories to support a range of system memory configurations.
• Display and Graphics  Includes HDMI-CEC and LCD display interface controllers plus graphics acceleration to support graphical user interfaces and multimedia displays.
• Connectivity  10/100 Mbps Ethernet (1), CAN interface and multiple USB options (USB 2.0 and USB 2.0 OTG+PHY) for flexible system I/O and networking.
• Security  ARM TrustZone (ARM TZ) security feature for hardware-assisted isolation and secure execution domains.

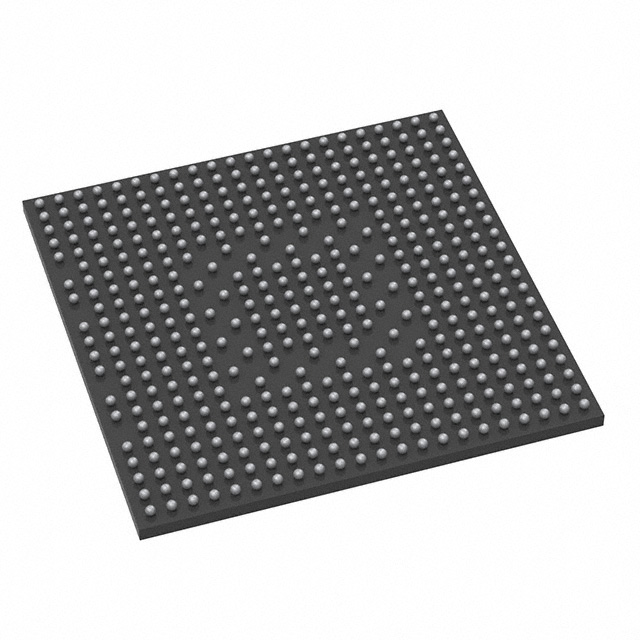

• Package and Mounting  448-LFBGA (18×18) surface-mount package suitable for compact embedded designs.
• Operating Range and Grade  Consumer grade device with an operating temperature range of -20 °C to 105 °C and RoHS compliance.

Typical Applications

• Consumer Electronics  Ideal for consumer devices that need integrated display controllers, graphics acceleration and USB connectivity for multimedia interfaces.
• Human-Machine Interfaces (HMI)  Provides HDMI-CEC, LCD support and graphics acceleration for interactive user interfaces and on-screen displays.
• Embedded Networking Nodes  10/100 Mbps Ethernet and USB/OTG support enable networked embedded devices and peripheral connectivity.
• Control Systems with CAN  CAN interface combined with an ARM® Cortex®-M4 coprocessor allows deterministic control and communication in CAN-connected systems.

Unique Advantages

• Dual-core application processing plus real-time coprocessor: Combines ARM® Cortex®-A7 application cores with an ARM® Cortex®-M4 to separate high-level processing from time-critical control tasks.
• Broad memory compatibility: Support for DDR3, DDR3L, LPDDR2 and LPDDR3 enables designers to choose memory technologies that match performance and power targets.
• Integrated display and graphics: HDMI-CEC, LCD controllers and graphics acceleration reduce the need for external display controllers and simplify multimedia designs.
• Comprehensive connectivity: Multiple USB ports, USB OTG with PHY, Ethernet and CAN provide flexible I/O options for varied embedded applications.
• Security support: ARM TrustZone enables hardware-assisted secure partitioning for sensitive code and data.
• Compact, industry-standard package: 448-LFBGA (18×18) surface-mount package supports dense system designs while maintaining thermal and mechanical compatibility with standard PCB processes.

Why Choose STM32MP153DAA1?

The STM32MP153DAA1 positions itself as an integrated microprocessor solution that blends dual-core ARM® Cortex®-A7 application processing with an ARM® Cortex®-M4 coprocessor, a broad set of memory controller options, display and graphics support, and a rich set of connectivity interfaces. Its feature set targets embedded and consumer applications that require consolidated processing, multimedia interfaces and hardware security.

With a 448-LFBGA package, consumer-grade classification, RoHS compliance and an operating range from -20 °C to 105 °C, the device is suited to compact, connected designs where integration, interface variety and long-term vendor support matter.

Request a quote or submit a parts inquiry to check availability and pricing for the STM32MP153DAA1 and to discuss volume needs or lead-time requirements.
