STM32MP153FAA1

The STM32MP153FAA1 is an embedded microprocessor from the STM32MP153 series featuring ARM® Cortex®-A7 architecture. It combines a dual-core 32-bit Cortex-A7 setup with an ARM® Cortex®-M4 co-processor to support heterogeneous processing models for embedded designs.

Targeted at embedded and consumer applications, the device provides integrated memory controller support, display interfaces, connectivity options and hardware security features to simplify system design and integration.

Key Features

• Core and Processing – ARM® Cortex®-A7 main processor with 2 cores (32-bit) and a listed core speed of 209 MHz; includes an ARM® Cortex®-M4 co-processor for real-time or DSP tasks.
• Memory Support – Integrated memory controller support for DDR3, DDR3L, LPDDR2 and LPDDR3 memories to accommodate a range of performance and power targets.
• Display and Graphics – Built-in display interface controllers including HDMI-CEC and LCD plus graphics acceleration for UI and multimedia display capabilities.
• Connectivity and Peripherals – On-chip connectivity includes 10/100Mbps Ethernet (1), multiple USB 2.0 ports and an USB 2.0 OTG with PHY, as well as CAN for vehicle or industrial networks.
• Security – ARM TrustZone (ARM TZ) security feature for hardware-based isolation of secure and non-secure software environments.

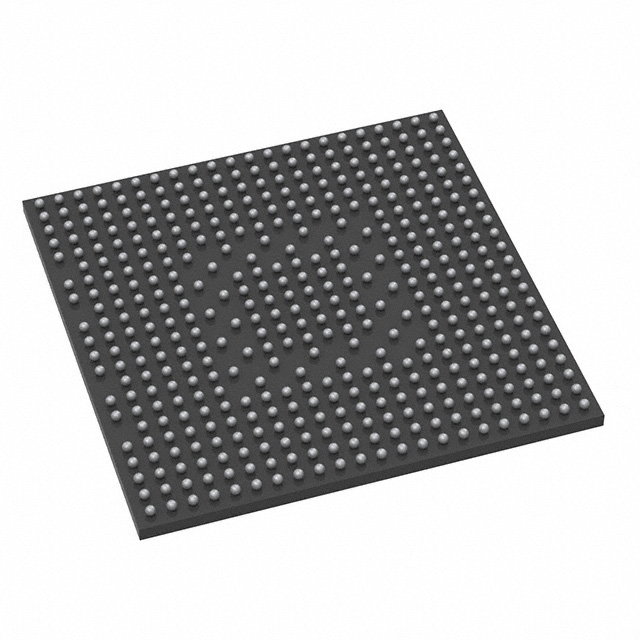

• Package and Mounting – Supplied in a 448-LFBGA package (18×18) designed for surface-mount assembly.
• Operating Range and Grade – Consumer-grade device with an operating temperature range of -20 °C to 105 °C.

Typical Applications

• Embedded Control Systems – Dual-core Cortex-A7 plus Cortex-M4 enables separation of application-level processing and real-time control tasks in embedded devices.
• Multimedia Displays – HDMI-CEC and LCD controllers with graphics acceleration support user interfaces and display-driven applications.
• Connectivity Gateways – Integrated Ethernet, USB 2.0 and CAN interfaces make the device suitable for networked consumer and embedded gateway products.

Unique Advantages

• Heterogeneous processing model: Dual-core Cortex-A7 with a Cortex-M4 co-processor lets designers partition compute and real-time workloads across cores.
• Flexible memory support: DDR3/DDR3L/LPDDR2/LPDDR3 controller compatibility reduces BOM choices and adapts to different performance and power targets.
• Integrated multimedia interfaces: On-chip HDMI-CEC and LCD controllers plus graphics acceleration simplify display subsystem design.
• Comprehensive I/O set: Multiple USB 2.0 ports, USB OTG with PHY, Ethernet and CAN provide broad connectivity for consumer and embedded applications.
• Hardware security: ARM TrustZone support enables hardware-enforced secure execution domains for protected applications.
• Industry-standard package: 448-LFBGA (18×18) surface-mount package suitable for compact board layouts.

Why Choose STM32MP153FAA1?

The STM32MP153FAA1 positions itself as an integrated microprocessor solution for embedded and consumer designs that require multi-core application processing alongside real-time capabilities. Its combination of ARM® Cortex® cores, broad memory interface support, graphics and display controllers, and multiple connectivity options helps streamline system architecture and reduce external component count.

This part is well suited to teams building embedded control, multimedia or connected gateway products that need hardware security and a compact 448-LFBGA package. The device’s feature set supports scalable designs and simplifies integration across display, memory and I/O subsystems.

Request a quote or submit an inquiry to get pricing and availability for the STM32MP153FAA1. Our team can provide lead-time information and support for your design evaluation and volume requirements.
