XOMAPL138ZCE

The XOMAPL138ZCE is a single-core, 32-bit microprocessor in the OMAP-L13x series from Texas Instruments featuring an ARM926EJ-S core running at 300 MHz. Designed for embedded applications, it integrates a range of on-chip interfaces and system features to support connectivity, storage and display control in commercial-grade designs.

With built-in Ethernet, SATA, USB and LCD controller support plus security features, the device targets embedded systems that require a combination of connectivity, storage and secure boot capabilities while maintaining a compact BGA footprint.

Key Features

• Core — ARM926EJ-S single 32-bit core at 300 MHz delivering deterministic embedded processing for control and signal-management tasks.
• Co-processors — Signal processing support from C674x and system control via CP15 for offloading specialized tasks.
• Memory — SDRAM controller support for external memory interfacing.
• Display — Integrated LCD display controller for driving embedded visual interfaces.
• Storage and Connectivity — On-chip 10/100 Mbps Ethernet (1) and SATA 3 Gbps (1) plus USB 1.1 and USB 2.0 with PHYs for comprehensive wired connectivity and storage options.
• Additional Interfaces — Host Port Interface (HPI) for parallel host communications.
• Security — Boot Security and Cryptography features to support secure boot and data protection workflows.

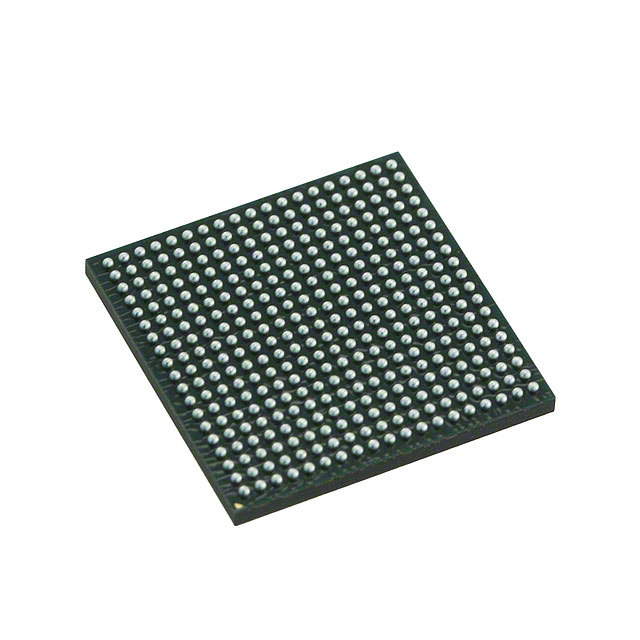

• Package & Mounting — 361-pin NFBGA (13 × 13 mm) surface-mount package suitable for compact board designs.
• Operating Range & Grade — Commercial grade with an operating temperature range of 0 °C to 90 °C.
• Graphics — No dedicated graphics acceleration; suited for display control without GPU offload.
• Compliance — RoHS compliant.

Typical Applications

• Embedded Networking Equipment — 10/100 Mbps Ethernet and robust I/O make the device suitable for networked embedded controllers and appliances.
• Storage-Enabled Systems — Integrated SATA 3 Gbps support enables usage in embedded storage subsystems and appliances requiring local mass storage.
• HMI and Display Controllers — On-chip LCD controller and HPI support for human‑machine interfaces and compact display-driven products.
• Secure Embedded Controllers — Boot Security and Cryptography features allow deployment where secure boot and protected firmware are required.

Unique Advantages

• Integrated Connectivity Suite: Ethernet, SATA and USB PHYs provide multiple wired connectivity and storage options without extensive external silicon.
• Security-Ready Platform: Built-in Boot Security and Cryptography support secure system startup and data protection workflows.
• Compact BGA Package: 361-NFBGA (13×13 mm) minimizes PCB area for space-constrained embedded designs.
• Deterministic Single-Core Processing: ARM926EJ-S 300 MHz core provides predictable performance for control-oriented applications.
• Flexible I/O: LCD controller, HPI and SDRAM controller enable a range of display, host interface and memory configurations.
• Commercial Temperature Range: Rated for 0 °C to 90 °C, suitable for a broad set of commercial embedded deployments.

Why Choose XOMAPL138ZCE?

The XOMAPL138ZCE combines a proven ARM926EJ-S processing core with a versatile set of on-chip interfaces—Ethernet, SATA, USB and LCD—plus security features, all in a compact 361-pin NFBGA package. This balance of processing capability, connectivity and integrated security makes it well suited for embedded designs that require reliable wired I/O and controlled system boot.

Manufactured by Texas Instruments and placed within the OMAP-L13x series, the device is targeted at commercial embedded product developers seeking a compact, interface-rich microprocessor platform for networked, storage-capable and display-driven applications.

Request a quote or submit an RFQ today to check availability and pricing for XOMAPL138ZCE.
