SXT214 Series – 2.0MM X 1.6MM Ceramic SMD 4 Pad Crystal
Part Numbering Guide
Electrical Parameters
| Parameters | Units | Min | Typical | Max | Remarks |
|---|---|---|---|---|---|
| Frequency Range | MHz | 16 | 96 | AT-Cut Fundamental. | |
| Frequency Tolerance at +25ºC | ppm | -10 | +10 | See part numbering guide for options. | |
| Frequency Stability vs. Op Temp | ppm | -10 | +10 | See part numbering guide for options. | |
| Frequency Stability vs. Aging | ppm | -2 | +2 | First year @ +25ºC. | |
| Operating Temperature | °C | -40 | +85 | See part numbering guide for options. | |
| Storage Temperature | °C | -40 | +125 | ||
| Load Capacitance | pF | 8 | 16 | See part numbering guide for options. | |
| Shunt Capacitance | pF | 5 | |||
| Drive Level | μW | 50 | 100 | ||
| Insulation Resistance | MΩ | 500 | @ 100VDC ± 15V. | ||
| Equivalent Series Resistance | |||||
| 16.000MHz ~ 20.999MHz | Ω | 200 | AT-Cut Fundamental | ||
| 21.000MHz ~ 25.999MHz | Ω | 120 | AT-Cut Fundamental | ||
| 26.000MHz ~ 40.999MHz | Ω | 100 | AT-Cut Fundamental | ||
| 41.000MHz ~ 60.000MHz | Ω | 60 | AT-Cut Fundamental | ||
| 61.000MHz ~ 96.000MHz | Ω | 40 | AT-Cut Fundamental |

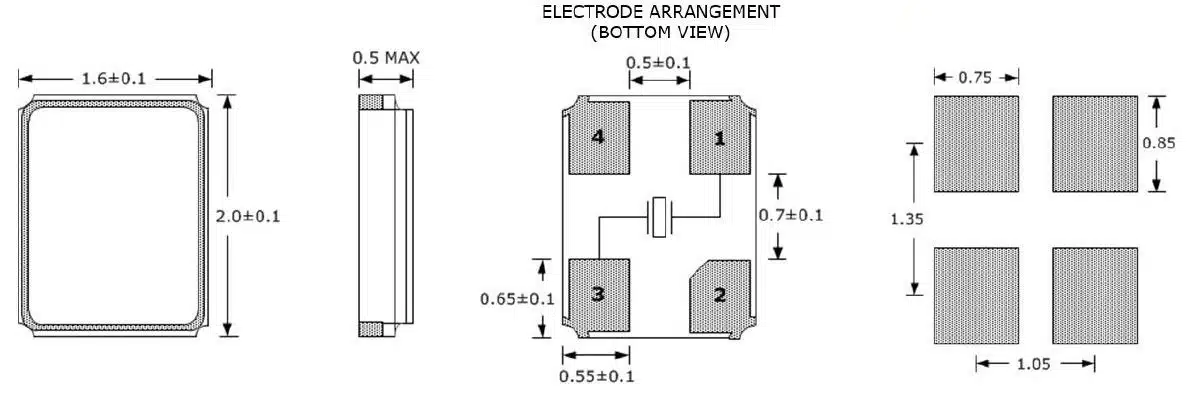

Outline Drawing & Recommended Landed Pattern
All dimensions are in millimeters (mm) unless otherwise noted. Drawings are not to scale.
