SXT324 SERIES – 3.2mm X 2.5mm Ceramic SMD 4 Pad Crystal

3D Product View

3D View

Features

• ±10ppm/±10ppm Available
• Ultra-Miniature Package
• AT-Cut Fundamental
• Tape and Reel

Applications

• High Density Applications
• PCMCIA
• Wireless Applications
• Computers and Modems

3D Product View

3D View

Features

• ±10ppm/±10ppm Available
• Ultra-Miniature Package
• AT-Cut Fundamental
• Tape and Reel

Applications

• High Density Applications
• PCMCIA
• Wireless Applications
• Computers and Modems

Part Number Builder

Please choose your parameters to build a part number:

Part Numbering Guide

Part Numbering Guide - SXT324

Electrical Parameters

ParametersUnitsMinTypicalMaxRemarks
Frequency RangeMHz870AT-Cut Fundamental.
Frequency RangeMHz601703rd Overtone
Frequency Tolerance at +25ºCppm-10+10See part numbering guide for options.
Frequency Stability vs. Op Tempppm-10+10See part numbering guide for options.
Frequency Stability vs. Agingppm-2+2First year @ +25ºC.
Operating Temperature°C-40+85See part numbering guide for options.
Storage Temperature°C-40+125
Load CapacitancepF632See part numbering guide for options.
Shunt CapacitancepF5
Drive LevelμW10100
Insulation Resistance500@ 100VDC ± 15V.
Equivalent Series Resistance
      10.000MHz ~ 11.999MHzΩ250AT-Cut Fundamental
      12.000MHz ~ 15.999MHzΩ100AT-Cut Fundamental
      16.000MHz ~ 19.999MHzΩ70AT-Cut Fundamental
      20.000MHz ~ 29.999MHzΩ50AT-Cut Fundamental
      30.000MHz ~ 49.999MHzΩ40AT-Cut Fundamental
      50.000MHz ~ 70.000MHzΩ35AT-Cut Fundamental
      60.000MHz ~ 170.000MHzΩ803rd Overtone

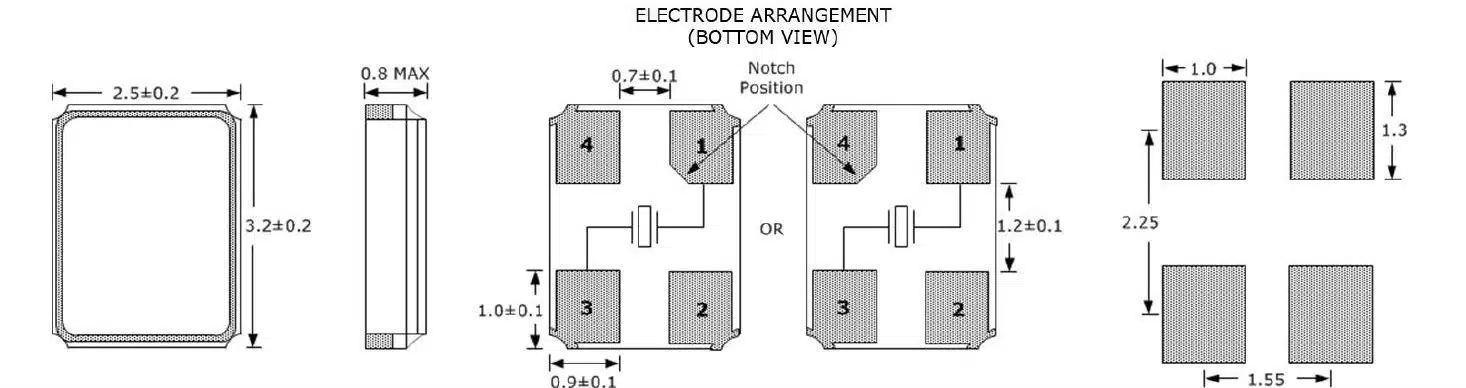

Outline Drawing & Recommended Landed Pattern

All dimensions are in millimeters (mm) unless otherwise noted. Drawings are not to scale.

SXT324 2D
