SOC25C Series – 25.4MM X 25.4MM Metal DIP CMOS OCXO

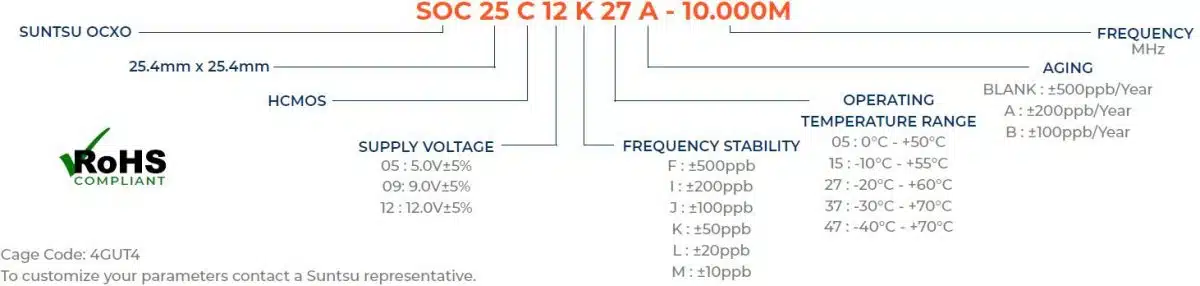

Part Numbering Guide
Electrical Parameters
| Parameters | Units | Min | Typical | Max | Remarks |
|---|---|---|---|---|---|
| Frequency Range | MHz | 1 | 100 | ||
| Frequency Tolerance at +25ºC | ppb | -100 | +100 | ||
| Freq. Stability vs. Op Temp. | ppb | -50 | +50 | See part numbering guide for options. | |
| Freq. Stability vs. Supply Voltage | ppb | -10 | +10 | VDD±5% Change | |
| Freq. Stability vs. Load | ppb | -10 | +10 | ±10% Change | |
| Freq. Stability vs. Aging/Year | ppb | -500 | +500 | See part numbering guide for options. | |
| Operating Temperature | °C | -20 | +60 | See part numbering guide for options. | |
| Storage Temperature | °C | -45 | +85 | ||
| Supply Voltage (VDD) - 5.0V Option | V | 4.750 | 5.0 | 5.250 | |
| Supply Voltage (VDD) - 9.0V Option | V | 8.550 | 9.0 | 9.450 | |
| Supply Voltage (VDD) - 12.0V Option | V | 11.400 | 12.0 | 12.600 | |
| Power Consumption At Turn On | W | 2.5 | |||
| Power Consumption At 25°C | W | 1.0 | |||
| Control Voltage (VC) | V | 0.5 | 4.5 | ||
| Control Middle Voltage | V | 2.5 | |||
| Pullability (AT-Cut) | ppm | ±3.0 | ±5.0 | ±8.0 | AT-Cut |
| Pullability (SC-Cut) | ppm | ±0.5 | ±2.0 | SC-Cut | |
| Linearity | % | 10 | |||
| VC Input Impedance | KΩ | 50 | |||
| Deviation Slope | Positive | ||||
| Output Logic (HCMOS) | pF | 15 | |||
| Output Logic Level - High (VOH) | V | 0.9*VDD | |||
| Output Logic Level - Low (VOL) | V | 0.1*VDD | |||
| Rise Time (TR) And Fall Time (TF) | nS | 5 | |||
| Symmetry (Duty Cycle) | % | 45 | 50 | 55 | |
| Start-Up Time | ms | 3 | |||
| Warm-Up Time | ppb | -100 | +100 | At 25°C After 5Mins. |
Outline Drawing & Recommended Landed Pattern
All dimensions are in millimeters (mm) unless otherwise noted. Drawings are not to scale.
