SOC50S Series – 50.0MM X 50.0MM Metal DIP CMOS OCXO

3D Product View

3D View

Features

• ±5.0ppb (Frequency Stability) Available
• Sinewave
• OCXO
• AT-Cut or SC-Cut

Applications

• Military Communication Equipment
• Base Stations
• Test Equipment
• Synthesizers
• Digital Switching

3D Product View

3D View

Features

• ±5.0ppb (Frequency Stability) Available
• Sinewave
• OCXO
• AT-Cut or SC-Cut

Applications

• Military Communication Equipment
• Base Stations
• Test Equipment
• Synthesizers
• Digital Switching

Part Number Builder

Please choose your parameters to build a part number:

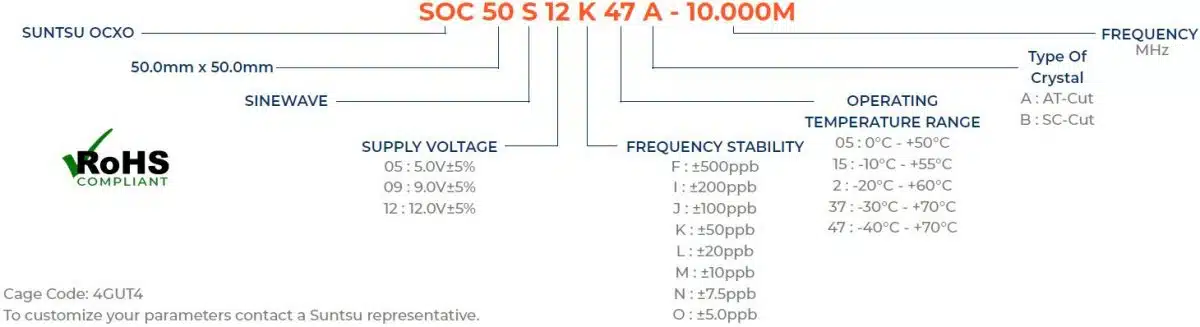

Part Numbering Guide

Electrical Parameters

ParametersUnitsMinTypicalMaxRemarks
Frequency RangeMHz5100
Frequency Tolerance at +25ºCppb-100+100
Freq. Stability vs. Op Temp.ppb-10+10See part numbering guide for options.
Freq. Stability vs. Supply Voltageppb-5+5VDD±5% Change
Freq. Stability vs. Loadppb-5+5±10% Change
Freq. Stability vs. Aging/Yearppb±50±300AT-Cut : ±300/Year, SC-Cut : ±50/Year
Operating Temperature°C-40+70See part numbering guide for options.
Storage Temperature°C-45+85
Supply Voltage (VDD)VVDD-5%VDDVDD+5%See part numbering guide for options.
Power Consumption At Turn OnW6.0
Power Consumption At 25°CW2.0
Control Voltage (VC)V0.05.0
Control Middle VoltageV2.5
Pullability (AT-Cut)ppm±2.0AT-Cut
Pullability (SC-Cut)ppm±0.5SC-Cut
Linearity%10
VC Input Impedance50
Deviation SlopePositive
Output Logic (SINEWAVE) LoadΩ50
Output Logic WaveformdBm7
Output Logic Spurious (Harmonic)dBc-30
Output Logic Spurious (Non-Harmonic)dBc-70
Reference Voltage Output (Vref)V5
Symmetry (Duty Cycle)%455055
Start-Up Timems3
Warm-Up Timeppb-5050At 25°C After 5Mins.

Outline Drawing & Recommended Landed Pattern

All dimensions are in millimeters (mm) unless otherwise noted. Drawings are not to scale.
