STC75K Series – 7.0MM X 5.0MM Ceramic SMD 10 Pad Clipped Sinewave (VC)TCXO

3D Product View

3D View

Features

• ±0.5ppm (Frequency Stability) Available
• Clipped Sinewave
• (VC)TCXO
• Tape and Reel

Applications

• GPS
• Mobile Communication Equipment
• Base Stations
• WLAN/WiMAX/WiFi

3D Product View

3D View

Features

• ±0.5ppm (Frequency Stability) Available
• Clipped Sinewave
• (VC)TCXO
• Tape and Reel

Applications

• GPS
• Mobile Communication Equipment
• Base Stations
• WLAN/WiMAX/WiFi

Part Number Builder

Please choose your parameters to build a part number:

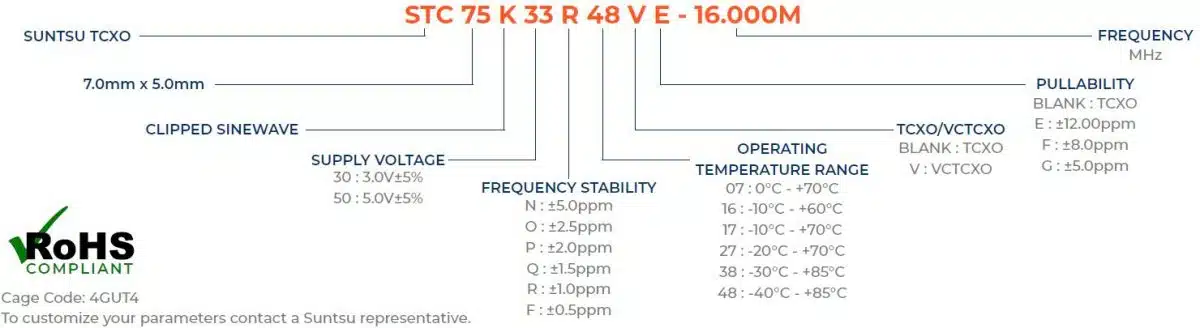

Part Numbering Guide

Electrical Parameters

ParametersUnitsMinTypicalMaxRemarks
Frequency RangeMHz540
Frequency Tolerance at +25ºCppm-2.0+2.01 hour after reflow
Freq. Stability vs. Op Temp.ppm-0.5+0.5See part numbering guide for options.
Freq. Stability vs. Supply Voltageppm-0.5+0.5VDD±5% Change
Freq. Stability vs. Loadppm-0.2+0.2±10% Change
Freq. Stability vs. Aging/Yearppm-1.0+1.01 Year
Operating Temperature°C-40+85See part numbering guide for options.
Storage Temperature°C-55+125
Supply Voltage (VDD)V3.1353.33.465See part numbering guide for options.
Current (IDD)mA2For 3.3V And 5.0V
Current Voltage (VC, VCTCXO)V0VDDCenter Voltage : VDD*50%
Pullability (VCTCXO)ppm±5.0±12.0See part numbering guide for options.
Linearity (VCTCXO)%10
Output Load (Clipped Sinewave)kΩ//pF10//10
Output Logic Levels VP-P0.8
Symmetry (Duty Cycle)%405060
Start-Up Timems2
VC Input Impedance (VCTCXO)100
Tri-State Input Voltage - EnableV0.7*VDDNo Connection
Tri-State Input Voltage - DisableV0.3*VDD
Phase Noise (Typical) 100Hz OffsetdBc/Hz-120
Phase Noise (Typical) 1KHz OffsetdBc/Hz-140
Phase Noise (Typical) 10KHz OffsetdBc/Hz-148

Outline Drawing & Recommended Landed Pattern

All dimensions are in millimeters (mm) unless otherwise noted. Drawings are not to scale.
