SVCF6P Series – 14.0MM X 8.7MM FR4 PCB 6 Pad LVPECL VCXO

3D Product View

3D View

Features

• ±20ppm (Frequency Stability) Available
• Low Phase Noise and Jitter Performance
• LVPECL
• Tape and Reel

Applications

• High Definition TV
• Avionics
• Low Phase Signal Sources
• Test and Measurement Equipment

3D Product View

3D View

Features

• ±20ppm (Frequency Stability) Available
• Low Phase Noise and Jitter Performance
• LVPECL
• Tape and Reel

Applications

• High Definition TV
• Avionics
• Low Phase Signal Sources
• Test and Measurement Equipment

Part Number Builder

Please choose your parameters to build a part number:

Part Numbering Guide

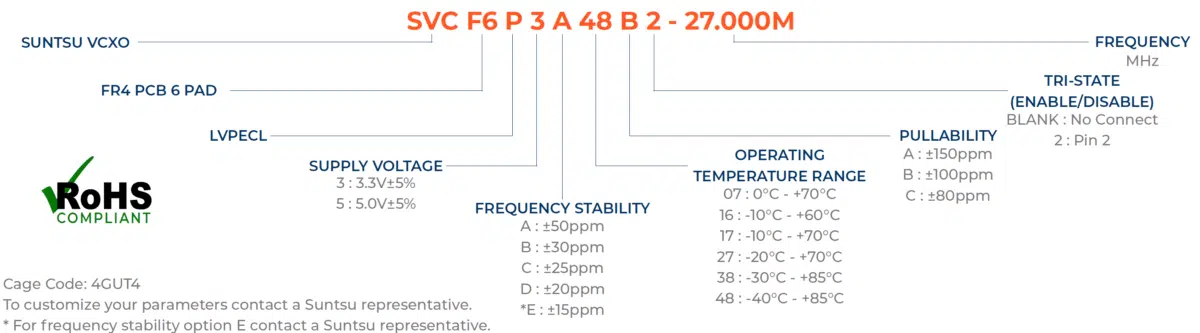

svcf6p part numbering guide

Electrical Parameters

ParametersUnitsMinTypicalMaxRemarks
Frequency RangeMHz10800
Frequency Stability (Includes Initial
Tolerance at 25°C, Frequency Stability
over Operating Temperature, Output Load
Change, Supply Voltage Change, and First
Year Aging at 25°C.)
ppm-20+20See part numbering guide for options.
Operating Temperature°C-40+85See part numbering guide for options.
Storage Temperature°C-55+125
Supply Voltage (VDD) - 3.3V OptionV3.1353.33.465
Supply Voltage (VDD) - 5.0V OptionV4.7505.05.250
Current (IDD) - 3.3V OptionmA70
Current (IDD) - 5.0V OptionmA100
Current Voltage (VC) 3.3V OptionV0.153.15
Current Voltage (VC) 5.0V OptionV05.0
Pullabilityppm±50±100See part numbering guide for options.
Input Impedance51
Modulation BandwidthkHz10@-3dB
Linearity%10
Output Load (LVPECL)Ω50
Output Logic Levels High (VOH) VVDD-1.025
Output Logic Levels Low (VOL) VVDD-1.620
Rise (TR) and Fall (TF) Timens1Measure at 20% to 80% of Waveform.
Symmetry (Duty Cycle)%455055
Tri-State Input Voltage(3.3V) - EnableV0.7*VDDNo Connection
Tri-State Input Voltage(3.3V) - DisableV0.3*VDD
Start-Up Timems10
Phase Jitter (12kHz ~ 20MHz)ps1

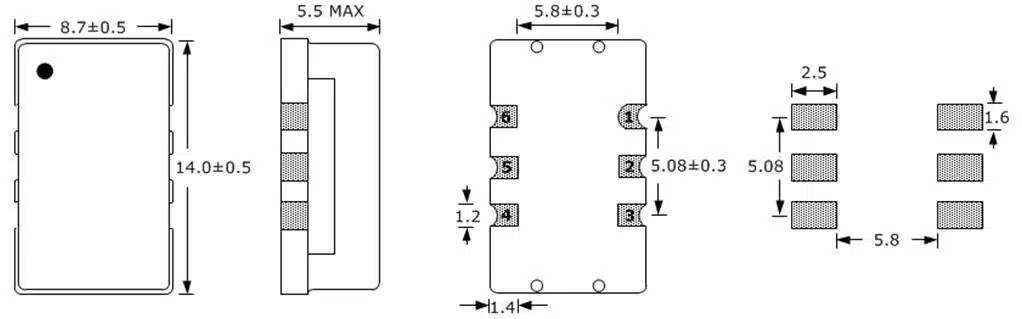

Outline Drawing & Recommended Landed Pattern

All dimensions are in millimeters (mm) unless otherwise noted. Drawings are not to scale.

SVCF6P 2d
SVCF6P Table
