10AX016E4F27I3SG

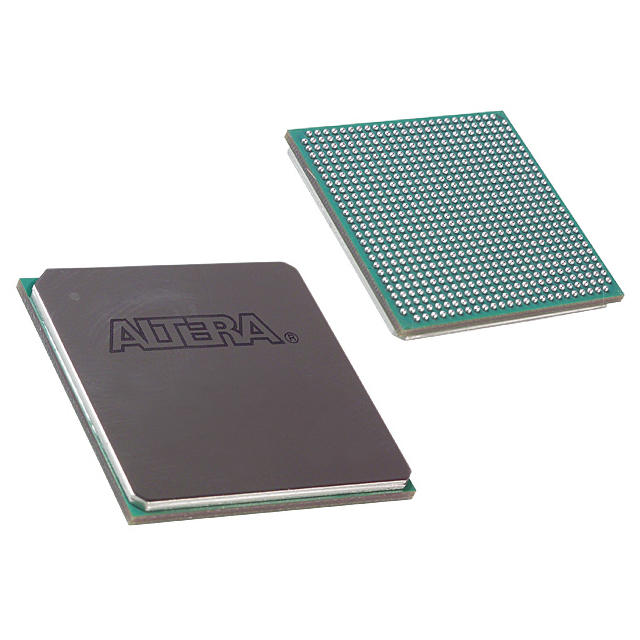

The 10AX016E4F27I3SG is an Intel Arria 10 GX field‑programmable gate array (FPGA) supplied in a 672‑FBGA (27×27) surface‑mount package. It belongs to the Arria 10 device family of 20 nm mid‑range FPGAs and SoCs, designed for high‑performance, power‑sensitive midrange applications.

With 160,000 logic elements, 10,086,400 total RAM bits and 240 I/O, this device targets markets such as wireless, wireline, broadcast, computing and storage, medical and military applications that require a balance of performance, on‑chip memory and I/O density.

Key Features

• Logic Capacity — 160,000 logic elements for implementing complex digital logic and custom accelerators.
• Embedded Memory — 10,086,400 total RAM bits to support large on‑chip buffers, lookup tables and packet processing functions.
• I/O and Package — 240 I/O pins in a 672‑FBGA (27×27) surface‑mount package for dense board integration and flexible external interfacing.
• Operating Range — Industrial‑grade operation from −40 °C to 100 °C suitable for temperature‑sensitive deployments.
• Supply Voltage — Core supply range of 870 mV to 930 mV for defined power and margining during system design.
• Arria 10 Family Capabilities — Arria 10 devices include architecture elements such as adaptive logic modules, variable‑precision DSP blocks, embedded memory blocks, clock networks and support for high‑speed serial protocols (family features described in the device overview).

Typical Applications

• Wireless Infrastructure — Channel and switch cards in remote radio heads and mobile backhaul systems that benefit from programmable processing and adaptable I/O.
• Wireline / Networking — 40G/100G muxponders, transponders, line cards and aggregation systems leveraging on‑chip logic and memory for packet processing and protocol handling.
• Broadcast & Professional AV — Studio switches, videoconferencing and transport applications requiring flexible data routing and real‑time processing.
• Computing & Storage — Server acceleration, flash cache and cloud compute functions that use on‑chip logic and memory for custom acceleration tasks.
• Medical & Defense — Diagnostic imaging, radar and secure communications where industrial temperature range and configurable logic are required.

Unique Advantages

• High logic density: 160,000 logic elements provide headroom for complex state machines, controllers and custom DSP pipelines.
• Large embedded memory: 10,086,400 bits of on‑chip RAM reduce external memory dependency for buffering and tight real‑time loops.
• Robust I/O and compact packaging: 240 I/O in a 672‑FBGA (27×27) surface‑mount package enables dense connectivity in space‑constrained board designs.
• Industrial temperature rating: −40 °C to 100 °C supports deployment in thermally demanding environments.
• Defined core supply range: 870 mV–930 mV core voltage specification allows straightforward power budgeting and margin planning.
• Part of the Arria 10 family: Family capabilities such as DSP resources, embedded memory types and clocking architectures facilitate migration and scaling within the Arria 10 device set.

Why Choose 10AX016E4F27I3SG?

The 10AX016E4F27I3SG positions itself as a mid‑range, performance‑oriented FPGA option within the Intel Arria 10 family, delivering a balanced combination of logic capacity, sizable on‑chip memory and a substantial I/O count in a compact 672‑FBGA package. Its industrial temperature rating and defined supply range make it suitable for designs that need predictable operation across varied environments.

This device is suited for system designers and engineers building midrange communications, computing, broadcast and instrumentation applications that require configurable hardware acceleration, on‑chip buffering and flexible I/O. Being part of the Arria 10 family also enables designers to leverage family features and documentation for design and scalability choices.

Request a quote or submit an inquiry to obtain pricing, lead times and availability for the 10AX016E4F27I3SG.
