5AGXBA1D4F27C5N

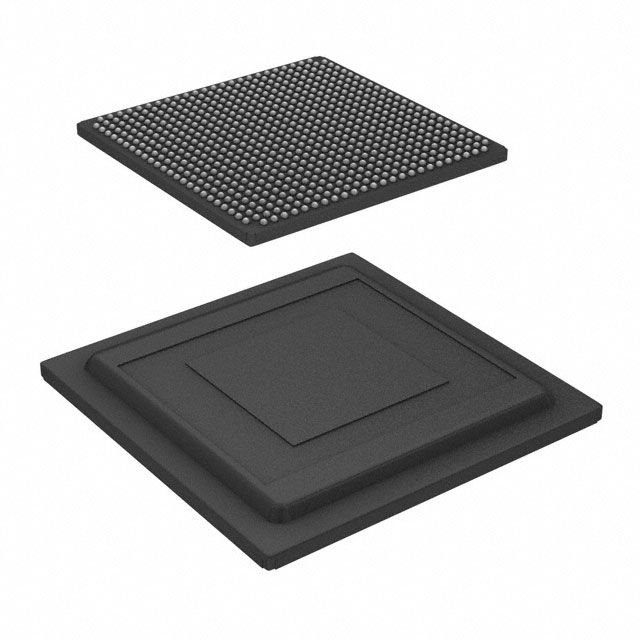

The 5AGXBA1D4F27C5N is an Intel Arria V GX field programmable gate array (FPGA) supplied in a 672-ball BGA FCBGA package. It provides a programmable logic fabric with explicit on-chip memory and broad I/O capacity for designs that require flexible, reconfigurable logic resources.

Key device attributes include 75,000 logic elements, 8,666,112 total RAM bits, 336 user I/O pins, a core supply range of 1.07 V to 1.13 V, and a commercial operating temperature range of 0 °C to 85 °C. The device is RoHS-compliant and designed for surface-mount applications in a 672-FBGA (27×27) package.

Key Features

• Logic Capacity — 75,000 logic elements provide substantial programmable logic resources for complex combinational and sequential designs.
• On‑Chip Memory — 8,666,112 total RAM bits enable large frame buffers, data buffering, and algorithmic state storage without relying exclusively on external memory.
• I/O Density — 336 I/O pins support extensive peripheral, interface, and system connectivity from a single device.
• Package — Supplied in a 672-BBGA FCBGA package; supplier device package specified as 672-FBGA (27×27), suitable for surface-mount board assembly.
• Power — Core voltage specified between 1.07 V and 1.13 V for predictable power budgeting and supply design.
• Operating Range — Commercial grade with an operating temperature range of 0 °C to 85 °C for standard commercial applications.
• Regulatory Status — RoHS compliant.

Typical Applications

• High‑density programmable logic — Use where substantial logic element counts and on‑chip memory are needed to implement custom data paths and control logic.
• Interface aggregation — 336 I/O pins enable consolidation of multiple interfaces and peripherals on a single FPGA for system integration.
• Embedded processing and buffering — Large RAM capacity supports frame buffering, packet buffering, or intermediate data storage for embedded functions.

Unique Advantages

• Significant logic and memory in a single device: 75,000 logic elements combined with 8,666,112 RAM bits reduce dependence on external programmable logic and memory components.
• High I/O count: 336 user I/Os allow flexible routing of signals and direct interfacing to multiple subsystems without immediate need for external multiplexing.
• Compact surface‑mount package: 672-BBGA (672-FBGA, 27×27) package enables a high pin count in a board‑friendly footprint.
• <strong predictable power envelope: Defined core supply range (1.07 V–1.13 V) simplifies power-supply selection and thermal planning.
• Commercial temperature rating: Specified 0 °C–85 °C operation aligns with standard commercial product deployment.
• RoHS compliance: Facilitates integration into assemblies requiring environmental compliance.

Why Choose 5AGXBA1D4F27C5N?

The 5AGXBA1D4F27C5N Arria V GX FPGA balances substantial programmable logic (75,000 logic elements) with large on‑chip RAM (8,666,112 bits) and a high I/O count (336 pins) in a 672‑ball FCBGA package. Its defined core voltage range and commercial temperature rating make it suitable for a wide range of board‑level designs that need reconfigurable logic, significant buffering, and flexible I/O integration.

This device is well suited to design teams and procurement professionals seeking a commercially graded FPGA offering verifiable on‑chip resources, predictable power requirements, and RoHS compliance within a compact surface‑mount package.

Request a quote or submit a purchasing inquiry to learn availability, lead times, and pricing for the 5AGXBA1D4F27C5N Arria V GX FPGA.
