5AGXBB3D6F31C6G

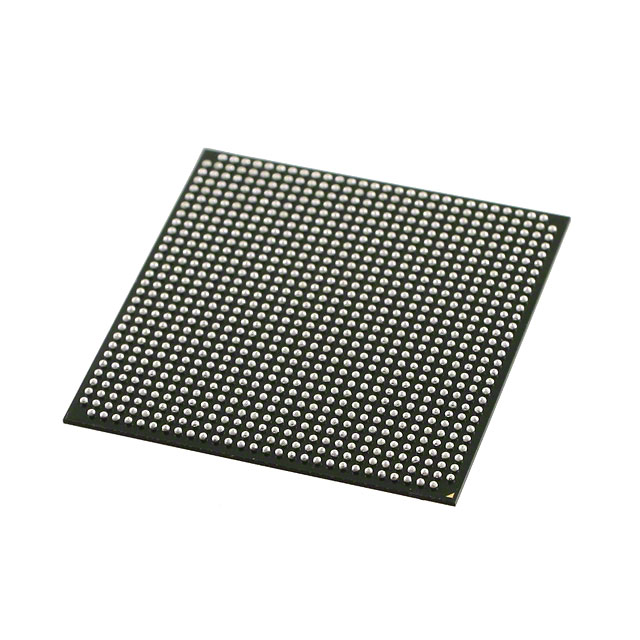

The 5AGXBB3D6F31C6G is an Arria V GX field-programmable gate array (FPGA) in a 896-BBGA (FCBGA) package designed for commercial-grade applications. It combines a high logic capacity fabric and substantial on-chip RAM to support complex programmable-logic designs.

Key on-chip resources include 362,000 logic elements, approximately 19.8 Mbits of embedded memory, and 384 user I/O pins, enabling dense integration of custom digital functions while operating from a core supply between 1.07 V and 1.13 V.

Key Features

• Logic Capacity — 362,000 logic elements to implement large-scale programmable logic and complex state machines.
• Logic Blocks — 17,110 logic blocks for partitioning designs and optimizing resource allocation.
• Embedded Memory — Approximately 19.8 Mbits of on-chip RAM for buffering, FIFOs, and memory-mapped structures without external memory.
• I/O Count — 384 user I/O pins to support wide parallel interfaces and multiple high-bandwidth connections.
• Package — 896-BBGA (FCBGA), supplier package 896-FBGA (31 × 31), surface-mount mounting for compact board designs.
• Power — Core voltage specification range of 1.07 V to 1.13 V to match regulated supply rails and power delivery design.
• Operating Range — Commercial-grade temperature range from 0 °C to 85 °C for typical commercial environments.
• Standards — RoHS compliant for environmental and regulatory conformity.

Typical Applications

• Custom Digital Logic — Implement large custom datapaths and control logic using the 362,000 logic elements and 17,110 logic blocks.
• Memory-Intensive Functions — Use approximately 19.8 Mbits of embedded RAM for buffering, packet queues, and intermediate storage without external DRAM.
• High-Density I/O Interfacing — Leverage 384 I/O pins for parallel buses, wide peripherals, or multiple serial interfaces in a single device.

Unique Advantages

• High Integration Density: Large logic element count and significant embedded RAM reduce the need for multiple devices and simplify board-level design.
• Compact Packaging: 896-BBGA FCBGA in a 31 × 31 supplier footprint enables high-density PCB layouts for space-constrained systems.
• Predictable Power Envelope: Tight core voltage range (1.07 V–1.13 V) supports stable power delivery design and voltage regulation choices.
• Commercial Temperature Support: Rated for 0 °C to 85 °C operation to meet typical commercial deployment environments.
• Regulatory Compliance: RoHS compliance helps streamline regulatory and supply-chain requirements.

Why Choose 5AGXBB3D6F31C6G?

The 5AGXBB3D6F31C6G Arria V GX FPGA offers a combination of substantial logic resources, on-chip memory, and a high I/O count in a compact 896-BBGA package, making it well suited for designs that demand dense programmable logic and integrated memory. Its commercial-grade rating and RoHS compliance make it appropriate for production systems targeted at commercial environments.

Choose this device when your design requires a single-chip solution for large logic implementations and embedded memory while maintaining a compact board footprint and predictable power requirements.

Request a quote or submit an inquiry to receive pricing and availability information for part number 5AGXBB3D6F31C6G.
