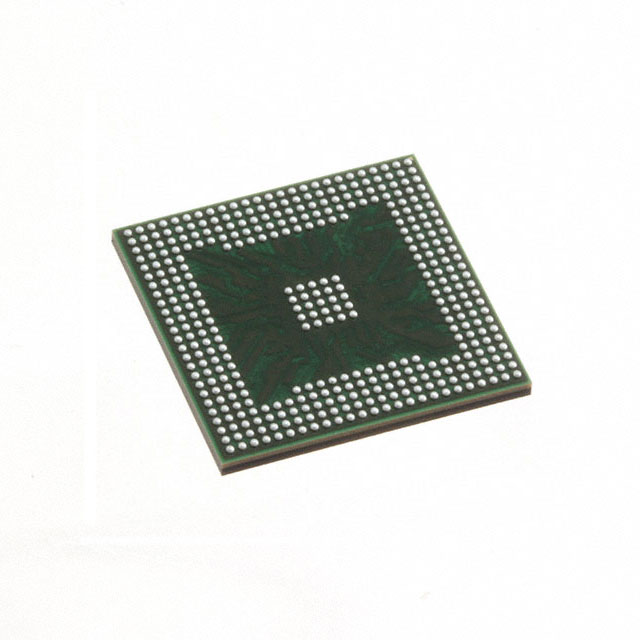

5CGXFC4C7M13C8N

The 5CGXFC4C7M13C8N is a Cyclone® V GX FPGA in a 383-TFBGA package optimized for low-power, high-bandwidth embedded logic. It offers 50,000 logic elements and integrated Cyclone V family capabilities such as hard memory controllers and transceiver support, making it suitable for commercial embedded designs in industrial, wireless, wireline, and military applications.

This device targets designs that require a balance of logic capacity, embedded memory, and I/O density while operating on a 1.07 V–1.13 V core supply and within a commercial temperature range of 0 °C to 85 °C.

Key Features

• Logic Capacity — 50,000 logic elements to implement mid-density FPGA designs.
• Embedded Memory — Approximately 2.86 Mbits of on-chip RAM for buffering, FIFOs, and local storage.
• I/O and Packaging — 175 user I/Os in a surface-mount 383-TFBGA package (supplier lists 383-MBGA, 13×13); suitable for high-density board layouts.
• Low-Voltage Core — Operates from 1.07 V to 1.13 V core supply, aligned with Cyclone V’s 1.1 V core architecture.
• Integrated System Features — Device family includes integrated transceivers and hard memory controllers to support higher bandwidth external interfaces (series-level capability).
• Commercial Grade — Rated for 0 °C to 85 °C operation and designated for commercial applications.
• Standards and Compliance — RoHS compliant for environmental and manufacturing compatibility.

Typical Applications

• Industrial Control — Implement custom control logic, protocol bridging, and deterministic I/O for factory automation systems requiring mid-range FPGA capacity.
• Wireless and Wireline Infrastructure — Use embedded memory and transceiver-capable fabric to buffer and process data streams in communications equipment.
• Defence and Military Electronics — Deploy on commercial-grade military systems where Cyclone V family attributes (hard IP and bandwidth) are required within commercial temperature limits.

Unique Advantages

• Balanced Logic and Memory — 50,000 logic elements combined with approximately 2.86 Mbits of embedded RAM supports complex control and data-path functions without large external memory.
• High I/O Density — 175 I/Os in a compact BGA footprint reduces board routing complexity for multi-interface designs.
• Low-Voltage Operation — Narrow core voltage range (1.07 V–1.13 V) simplifies power-rail design aligned to Cyclone V family requirements.
• Family-Level Integration — Access to Cyclone V GX series features such as integrated transceivers and hard memory controllers for higher-bandwidth designs.
• Commercial Availability — RoHS-compliant, surface-mount package suitable for mainstream production and procurement.

Why Choose 5CGXFC4C7M13C8N?

The 5CGXFC4C7M13C8N delivers a practical mix of logic density, embedded memory, and I/O in a compact BGA package for commercial embedded systems. Its specification aligns with Cyclone V family strengths—low-power 28 nm architecture, integrated system IP, and options for transceiver and memory controller integration—making it a fit for applications that need moderate FPGA resources and efficient board-level integration.

Choose this device when your design requires a commercially graded FPGA with 50,000 logic elements, substantial on-chip RAM, and 175 I/Os, backed by Cyclone V family documentation and ecosystem support.

Request a quote or submit an inquiry to receive pricing and availability information for 5CGXFC4C7M13C8N.
