5CGXFC4F6M11I7

The 5CGXFC4F6M11I7 is a Cyclone® V GX field-programmable gate array (FPGA) IC in a 301-TFBGA package designed for Industrial-grade applications. As a member of the Cyclone V family, it combines a low-voltage 1.1 V core architecture with programmable fabric suitable for industrial, wireless and wireline, and military market segments.

With 50,000 logic elements, approximately 2.86 Mbits of embedded memory and 129 general-purpose I/Os in a compact surface-mount package, this device targets designs that require mid-density programmable logic with controlled power and temperature characteristics.

Key Features

• Core Technology Built on the Cyclone V device family architecture with a nominal 1.1 V core (operating supply range 1.07–1.13 V) and low-power process technology referenced in the Cyclone V family overview.
• Logic Capacity 50,000 logic elements provide mid-range programmable logic density for control, signal processing, and glue-logic functions.
• Embedded Memory Approximately 2.86 Mbits of on-chip RAM, implemented with the Cyclone V memory architecture that includes M10K memory block structures described in the device family documentation.
• I/O and Integration 129 I/O pins support a range of peripheral interfaces. As part of the Cyclone V GX family, the device aligns with family-level features such as integrated transceivers and hard memory controllers (as described for Cyclone V devices).

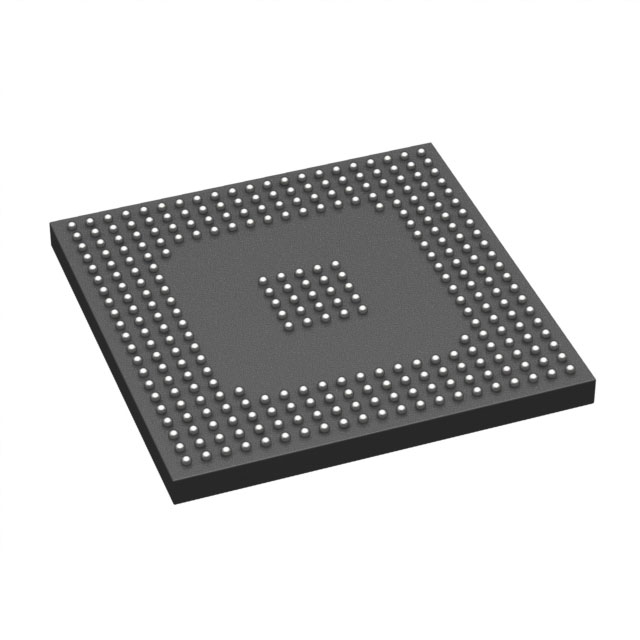

• Package and Mounting 301-TFBGA package (supplier device package: 301-MBGA, 11×11) in a surface-mount form factor for compact board-level integration.
• Industrial Grade and Environmental Compliance Industrial operating temperature range of −40 °C to 100 °C and RoHS-compliant construction for deployment in industrial environments.

Typical Applications

• Industrial Automation — Implement motor control logic, deterministic I/O handling, and realtime control glue logic using the device's logic elements and I/O count.
• Wireless and Wireline Infrastructure — Use as protocol bridging, packet processing, or interface control logic where mid-range programmable fabric and Cyclone V family integration are beneficial.
• Military and Rugged Systems — Deploy in systems that require industrial temperature operation and compact BGA packaging for embedded signal processing and I/O aggregation.

Unique Advantages

• Mid-range Logic Density: 50,000 logic elements strike a balance between capacity and cost for designs that need substantial programmable resources without high-end device complexity.
• Integrated Memory Resources: Approximately 2.86 Mbits of embedded RAM implemented in the Cyclone V memory architecture reduces dependency on external memory for many control and buffering tasks.
• Compact Surface-Mount Package: 301-TFBGA (301-MBGA, 11×11) enables space-efficient board designs while providing a high pin count for flexible I/O mapping.
• Industrial Temperature Range: −40 °C to 100 °C rating supports deployment in a broad range of industrial operating environments.
• Family-Level Integration: As part of the Cyclone V GX family, the device aligns with family features such as integrated transceivers and hard memory controllers described in the Cyclone V documentation, enabling higher integration in system designs.
• RoHS Compliant: Environmentally compliant construction supports modern manufacturing and regulatory requirements.

Why Choose 5CGXFC4F6M11I7?

The 5CGXFC4F6M11I7 delivers a practical combination of logic capacity, embedded memory, and I/O resources in a compact, industrial-grade package. Its 1.1 V core operating range and Cyclone V family heritage make it suitable for engineers seeking a mid-density FPGA solution that integrates well into industrial, wireless/wireline, and military-focused designs.

For teams prioritizing board-area efficiency, predictable thermal range, and a known family architecture, this Cyclone V GX device offers a robust platform for implementing control logic, interface bridging, and on-chip buffering with a clear, verifiable specification set.

Request a quote or submit an inquiry to check availability and pricing for the 5CGXFC4F6M11I7. Provide your quantity and delivery requirements to receive a prompt response.
