5CGXFC4F6M11C7N

The 5CGXFC4F6M11C7N is an Intel Cyclone® V GX field programmable gate array (FPGA) in a 301-TFBGA package. It combines FPGA fabric with Cyclone V family architecture features to address high-bandwidth and cost-sensitive designs in markets such as industrial, wireless/wireline, and military applications.

This device provides a balance of programmable logic, on-chip memory, and I/O integration, with a low-voltage core and surface-mount packaging suited for commercial-grade systems.

Key Features

• Logic Capacity — 50,000 logic elements to implement custom logic, state machines, and glue functions.
• Embedded Memory — Approximately 2.86 Mbits of on-chip RAM (2,862,080 total RAM bits) for buffering, FIFOs, and embedded storage.
• I/O — 129 user I/O pins for flexible external interfacing and board-level connectivity.
• Process & Core Voltage — Built on TSMC 28 nm low-power process with a 1.1 V class core; device supply range specified at 1.07 V to 1.13 V.
• Transceivers & Memory IP (Family) — Cyclone V family devices are enhanced with integrated transceivers and hard memory controllers, enabling high-bandwidth links and efficient external memory integration.
• SoC Integration (Family) — Cyclone V family includes variants with a hard processor system (HPS) including dual-core Arm Cortex‑A9 MPCore processor for tight FPGA–processor integration (applicable to Cyclone V SoC variants).

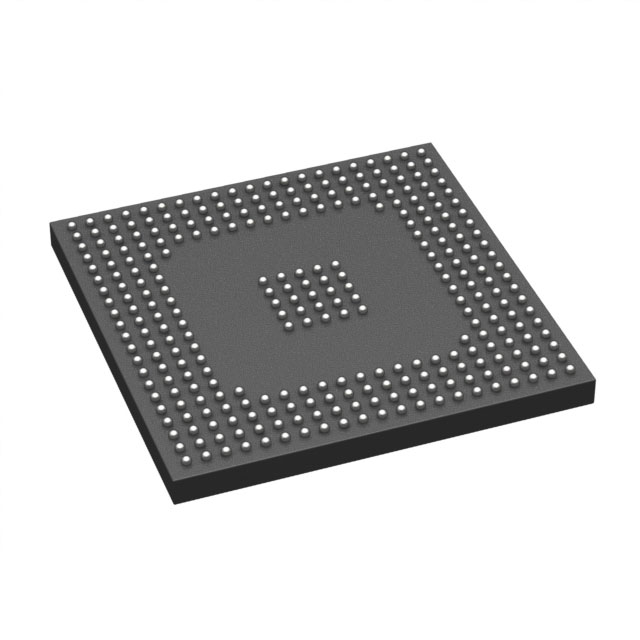

• Package & Mounting — 301-TFBGA package (supplier device package: 301-MBGA, 11×11) with surface-mount assembly.
• Operating Range & Grade — Commercial grade device with an operating temperature range of 0 °C to 85 °C.
• Compliance — RoHS compliant.

Typical Applications

• Wireless & Wireline Infrastructure — Use integrated transceiver and hard memory controller capabilities (Cyclone V family features) to implement high-bandwidth PHY interfaces and protocol acceleration.
• Industrial Control — Consolidate real-time logic, custom I/O handling, and deterministic control functions using programmable logic and on-chip memory.
• Embedded Signal Processing — Leverage abundant logic elements and embedded RAM for custom DSP pipelines, buffering, and data-path acceleration.
• Defense & Military Systems — Implement configurable data-paths and protocol bridging in compact, commercial-grade FPGA hardware optimized for high-bandwidth tasks.

Unique Advantages

• Significant Logic Density: 50,000 logic elements provide the capacity for complex custom hardware functions and system glue logic.
• Integrated Memory Resources: Approximately 2.86 Mbits of embedded RAM reduce external memory dependence for intermediate buffering and local storage.
• Low-Voltage Operation: Narrow core supply window (1.07 V to 1.13 V) aligned with 1.1 V-class low-power silicon for predictable power design.
• High I/O Count in a Compact Package: 129 I/Os in a 301-TFBGA (301-MBGA 11×11) footprint supports dense board-level connectivity in a small form factor.
• Commercial Availability & Compliance: Commercial-grade temperature rating (0 °C to 85 °C) and RoHS compliance simplify procurement and regulatory compliance for mainstream products.
• Family-Level Integration Options: Cyclone V family-level features such as hard memory controllers, integrated transceivers, and SoC variants with HPS enable design scalability and tighter system integration.

Why Choose 5CGXFC4F6M11C7N?

This Cyclone® V GX device delivers a practical mix of programmable logic, embedded memory, and I/O density in a commercial-grade, surface-mount package. It is well suited to designers who need substantial logic resources (50,000 logic elements) and on-chip RAM (approximately 2.86 Mbits) while maintaining a compact board footprint and low-voltage power profile.

Choose this part when your design requires a balance of performance, integration, and predictable power characteristics, with access to Cyclone V family features such as high-speed transceivers and hard memory controllers for scalable system architectures.

Request a quote or submit an inquiry to receive pricing and availability information for 5CGXFC4F6M11C7N and to discuss lead times or volume requirements.
