5CGXFC4F6M11C6N

The 5CGXFC4F6M11C6N is a Cyclone® V GX field-programmable gate array (FPGA) in a 301-TFBGA package designed for applications that require a balance of integration, power efficiency, and high-speed I/O. Built on the Cyclone V device family architecture, it combines FPGA fabric with integrated transceivers and hard memory controllers for mid-range system designs.

Target markets include industrial, wireless and wireline, and military applications where 50,000 logic elements, approximately 2.86 Mbits of embedded memory, and comprehensive I/O support are required while maintaining commercial temperature and RoHS compliance.

Key Features

• Core Logic  50,000 logic elements provide mid-range programmable logic capacity for control, signal processing, and glue-logic functions.
• Embedded Memory  Approximately 2.86 Mbits of on-chip RAM for buffering, LUT-based storage, and local data handling.

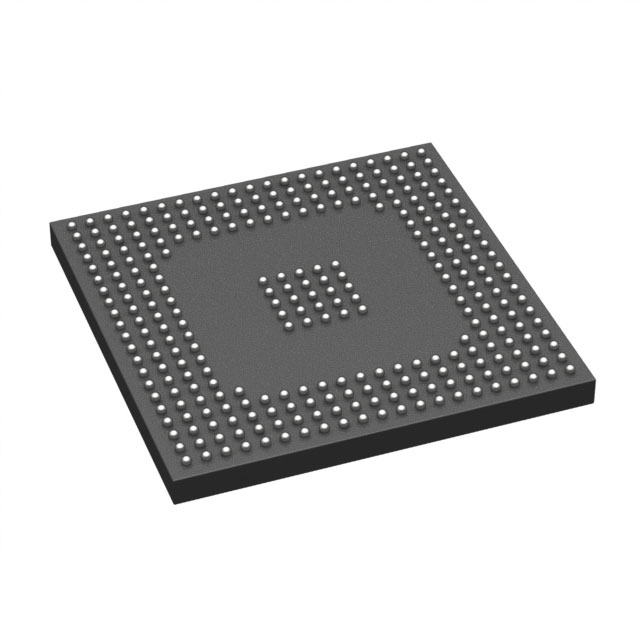

• I/O and Packaging  129 general-purpose I/O pins in a 301-TFBGA (301-MBGA, 11×11) package; surface-mount mounting suited for board-level integration.
• Integrated Transceivers and Memory Controllers  Cyclone V GX architecture includes integrated transceivers and hard memory controllers to support higher bandwidth external interfaces and deterministic memory access.
• DSP and Logic Architecture  Enhanced 8-input adaptive logic modules and variable-precision DSP resources provide flexible implementation options for arithmetic and signal-processing blocks.
• Low-Voltage Operation  Core supply specification of 1.07 V to 1.13 V enables operation within the documented Cyclone V low-voltage range.
• Commercial Temperature Grade  Rated for operation from 0 °C to 85 °C for standard commercial deployments.
• Standards Compliance  RoHS-compliant packaging and materials meet common environmental and assembly requirements.

Typical Applications

• Wireless Infrastructure  Baseband interfacing and mid-rate signal processing where integrated transceivers and DSP capabilities accelerate data paths.
• Wireline Communications  Protocol bridging and packet handling using the hard memory controllers and programmable fabric to implement custom packet-processing logic.
• Industrial Control  Deterministic control, motor drives, and sensor aggregation leveraging on-chip memory and abundant logic elements for real-time tasks.
• Defense and Military Systems  Ruggedized system designs (within commercial temperature limits) that benefit from flexible I/O mapping and integrated high-speed interfaces.

Unique Advantages

• Integrated High-Speed Interfaces: The Cyclone V GX architecture includes transceivers and hard memory controllers, reducing external IP complexity for bandwidth-intensive links.
• Balanced Logic and Memory Capacity: 50,000 logic elements combined with approximately 2.86 Mbits of embedded RAM support mid-range compute and buffering needs on a single device.
• Power-Optimized Process: The Cyclone V family’s low-power process characteristics enable lower core-voltage operation and reduced power consumption for system-level efficiency.
• Flexible DSP and ALM Resources: Variable-precision DSP blocks and enhanced 8-input adaptive logic modules allow efficient implementation of arithmetic-heavy and control logic functions.
• Commercial-Grade Qualification: Designed for 0 °C to 85 °C operation and supplied in a RoHS-compliant surface-mount 301-TFBGA package for standard commercial applications.
• Simplified Power Supply Needs: Documented core-voltage range of 1.07 V to 1.13 V supports straightforward power-rail design in multi-voltage systems.

Why Choose 5CGXFC4F6M11C6N?

The 5CGXFC4F6M11C6N offers a practical combination of programmable logic, embedded memory, and integrated high-speed interfaces for mid-range system designers. Its Cyclone V GX architecture provides the integration needed to streamline designs that require transceiver connectivity and hard memory interfaces without moving to higher-density device classes.

This part is well suited to engineers and procurement teams building solutions in industrial, wireless/wireline, and military segments that need a commercially graded, RoHS-compliant FPGA with 50,000 logic elements, 129 I/O, and on-chip memory capacity for buffering and local data processing.

Request a quote or submit an inquiry to get pricing and availability for 5CGXFC4F6M11C6N and start integrating this Cyclone V GX FPGA into your next design.
