A54SX16A-1TQG100I

The A54SX16A-1TQG100I is an SX-A family FPGA from Microchip Technology providing 24,000 system gates, approximately 1,452 logic elements, and 81 user I/Os in a 100-pin thin quad flat package. It supports a wide supply range and mixed-voltage I/O options for flexible board-level integration.

As a member of the SX-A family, this device benefits from family-level capabilities including system performance up to 250 MHz and internal performance up to 350 MHz, configurable I/O for multiple voltage standards, and built-in security and diagnostic features suitable for industrial temperature operation.

Key Features

• Core & Capacity — 24,000 system gates and approximately 1,452 logic elements provide mid-range programmable logic capacity for control, glue-logic and interface tasks.
• I/O Flexibility — 81 user-programmable I/Os with configurable support for multiple voltage standards; family-level support includes 3.3 V/5 V PCI, 5 V TTL, 3.3 V LVTTL and 2.5 V LVCMOS2 operation.
• Voltage & Power — Wide supply range from 2.25 V to 5.25 V supports mixed-voltage system designs and level-tolerant interfaces.
• Performance — SX-A family specifications list up to 250 MHz system performance and up to 350 MHz internal performance for timing-critical functions.
• System & Security — Nonvolatile, single-chip architecture with Actel Secure Programming Technology and FuseLock™ to help protect design intellectual property; JTAG boundary-scan (IEEE 1149.1) for test.
• Programmability & Control — Deterministic, user-controllable timing, configurable weak pull-up/pull-down on I/Os at power-up, and individual output slew-rate control for signal integrity and timing management.
• Diagnostics & Test — In-system diagnostic and verification support via Silicon Explorer II and boundary-scan testing for board-level validation.

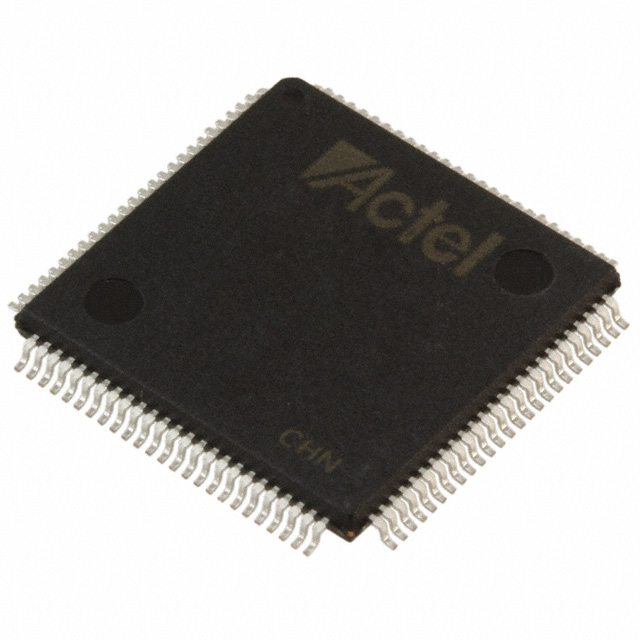

• Package & Mounting — Available in 100-pin thin quad flat package (listed as 100-LQFP / 100-TQFP 14×14); surface-mount mounting type for compact board designs.
• Temperature & Compliance — Industrial temperature grade rated from −40 °C to 85 °C and RoHS-compliant packaging.

Typical Applications

• PCI-based expansion and interface cards — Family-level 66 MHz PCI compliance and configurable 3.3 V/5 V PCI I/O support make this device suitable for board-level PCI interfaces.
• Mixed-voltage I/O bridging — Use the device where multiple logic-voltage domains must be interfaced, leveraging 2.5 V, 3.3 V and 5 V mixed-voltage operation and 5 V input tolerance.
• Industrial control and automation — Industrial temperature rating (−40 °C to 85 °C) and robust I/O configurability support factory and process-control electronics.
• Secure embedded systems — Built-in secure programming and FuseLock™ protection help protect IP in applications that require design security.
• Board-level signal-management — Deterministic timing controls, output slew-rate adjustment and configurable pull-ups/pull-downs assist in glue-logic, protocol bridging and timing-critical glue functions.

Unique Advantages

• Balanced mid-range capacity: 24,000 system gates with ~1,452 logic elements deliver practical programmability for a wide set of interface and control tasks without excessive board-level complexity.
• Flexible I/O and voltage handling: Mixed-voltage operation and 5 V tolerance support multiple domain interfaces and reduce the need for external level-shifters.
• Nonvolatile single-chip solution: Built-in nonvolatile configuration simplifies system power sequencing and reduces external configuration components.
• Design integrity and security: FuseLock™ secure programming and JTAG boundary-scan support aid IP protection and testability on production boards.
• Industrial-ready operation: Specified for −40 °C to 85 °C and RoHS-compliant packaging, suitable for many industrial environments.
• Developer diagnostics and testability: In-system diagnostic support (Silicon Explorer II) and deterministic timing controls help speed development and validation.

Why Choose A54SX16A-1TQG100I?

The A54SX16A-1TQG100I positions itself as a flexible, mid-range FPGA option within the SX-A family, combining a practical gate count and a significant number of logic elements with a compact 100-pin package. Its mixed-voltage I/O support, industrial temperature rating and family-level performance characteristics make it suitable for board-level designs that require interface flexibility, secure configuration and deterministic timing.

For engineers designing industrial, PCI-interfaced or secure embedded systems, this device provides an integrated, nonvolatile solution with diagnostic and test features that support development and production. The device’s configuration and family tools help maintain design scalability across other SX-A family members when needed.

Request a quote or submit an inquiry to receive availability and pricing information for the A54SX16A-1TQG100I. Our team can assist with technical questions and support for integrating this SX-A family device into your design.
